Analog signal path. 1000ms delay time max.

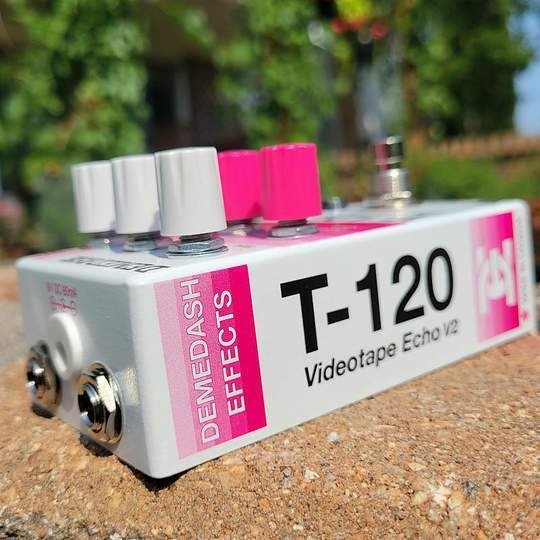

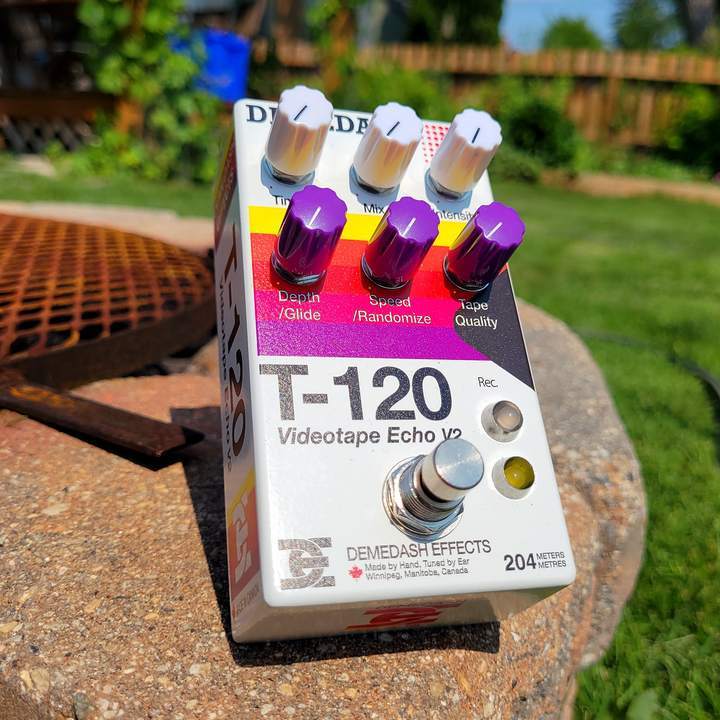

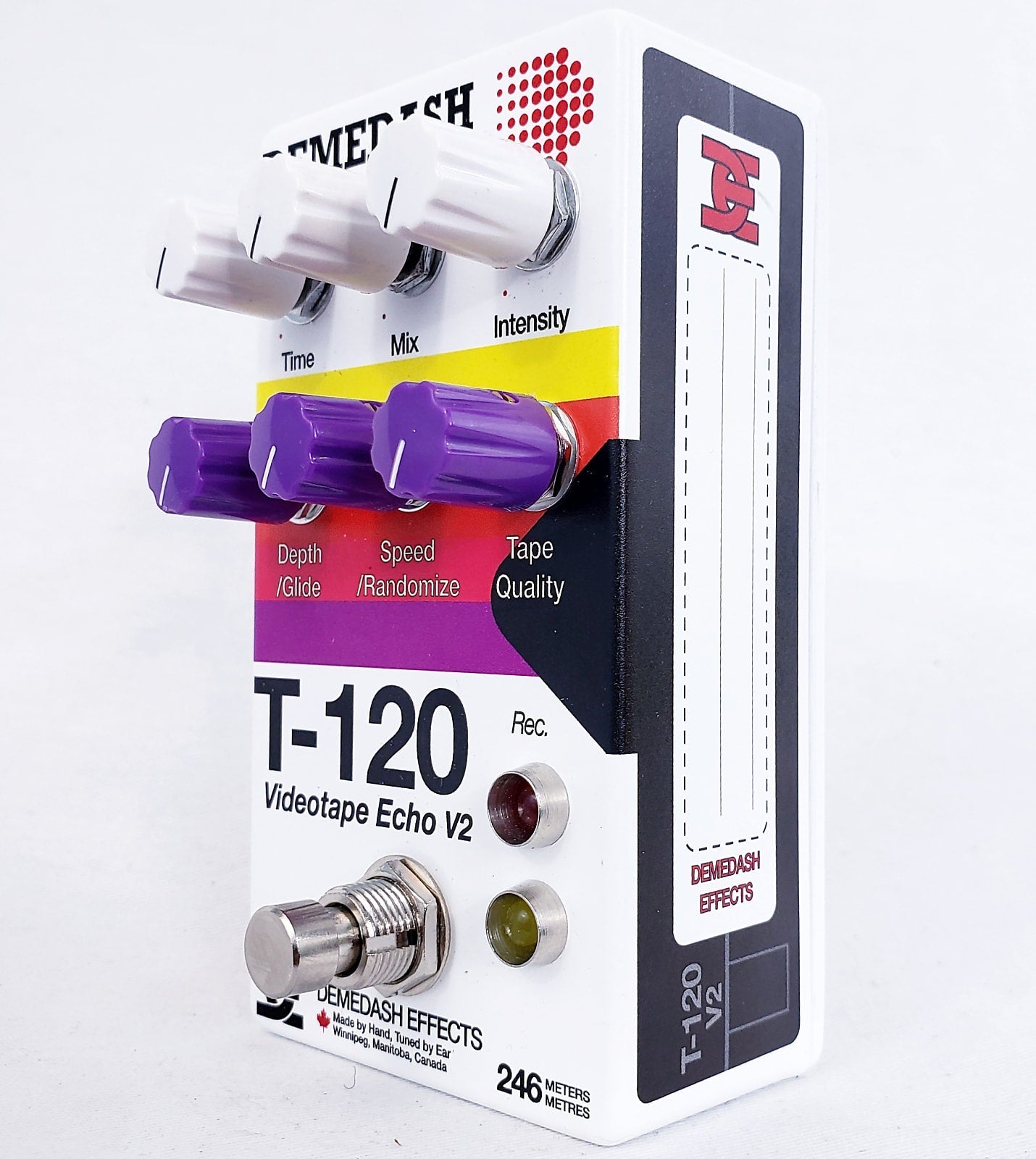

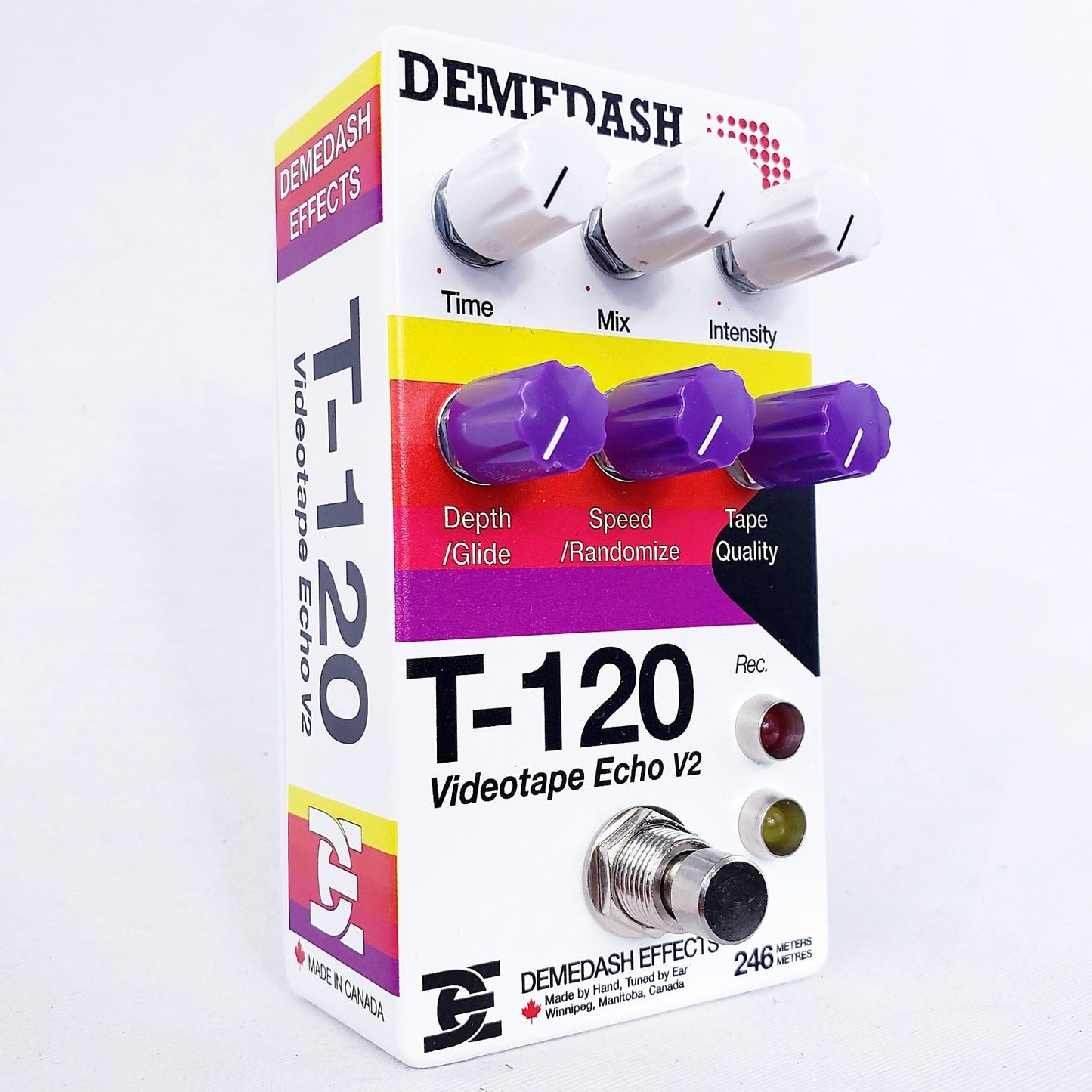

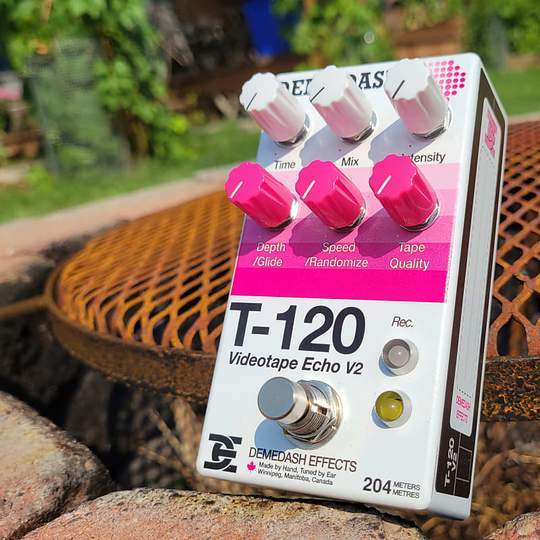

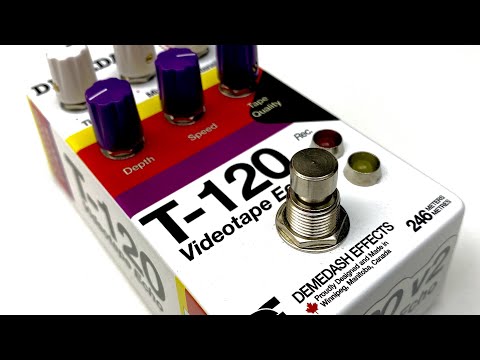

Inspired by the garbled audio that accompanies worn-out and poorly aged budget bin video tape, the Demedash T120 Videotape Echo gives you exactly the type of sound that you're hearing in your head when you look at it.
Feed your guitar through the T120, and the recorded playback will be the sound of low bandwidth tape being fed haphazardly through a magnetic read head by an uncalibrated, unbalanced feed mechanism.
No DSP Involved.

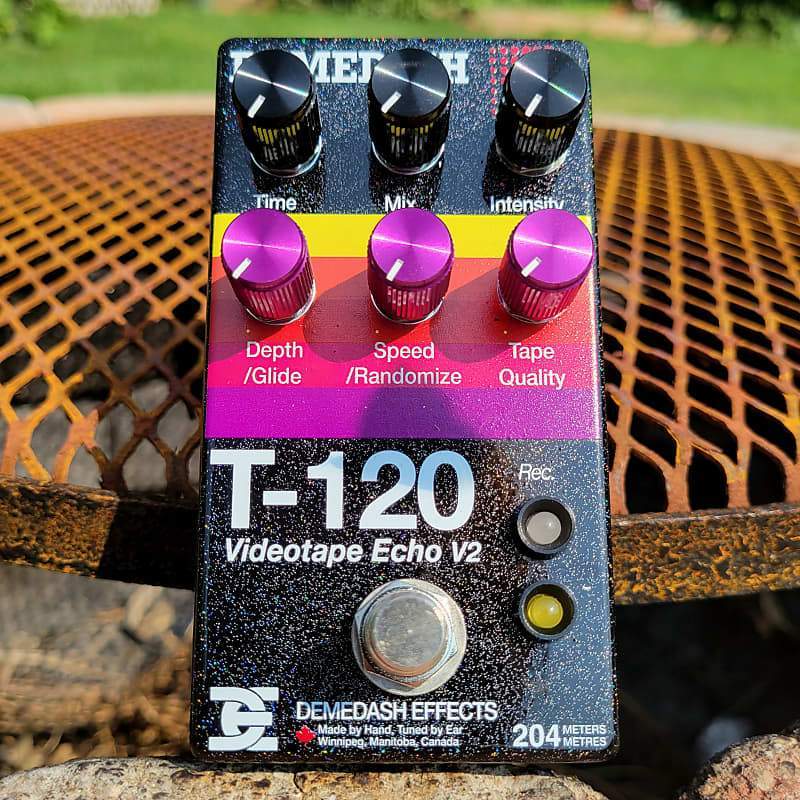

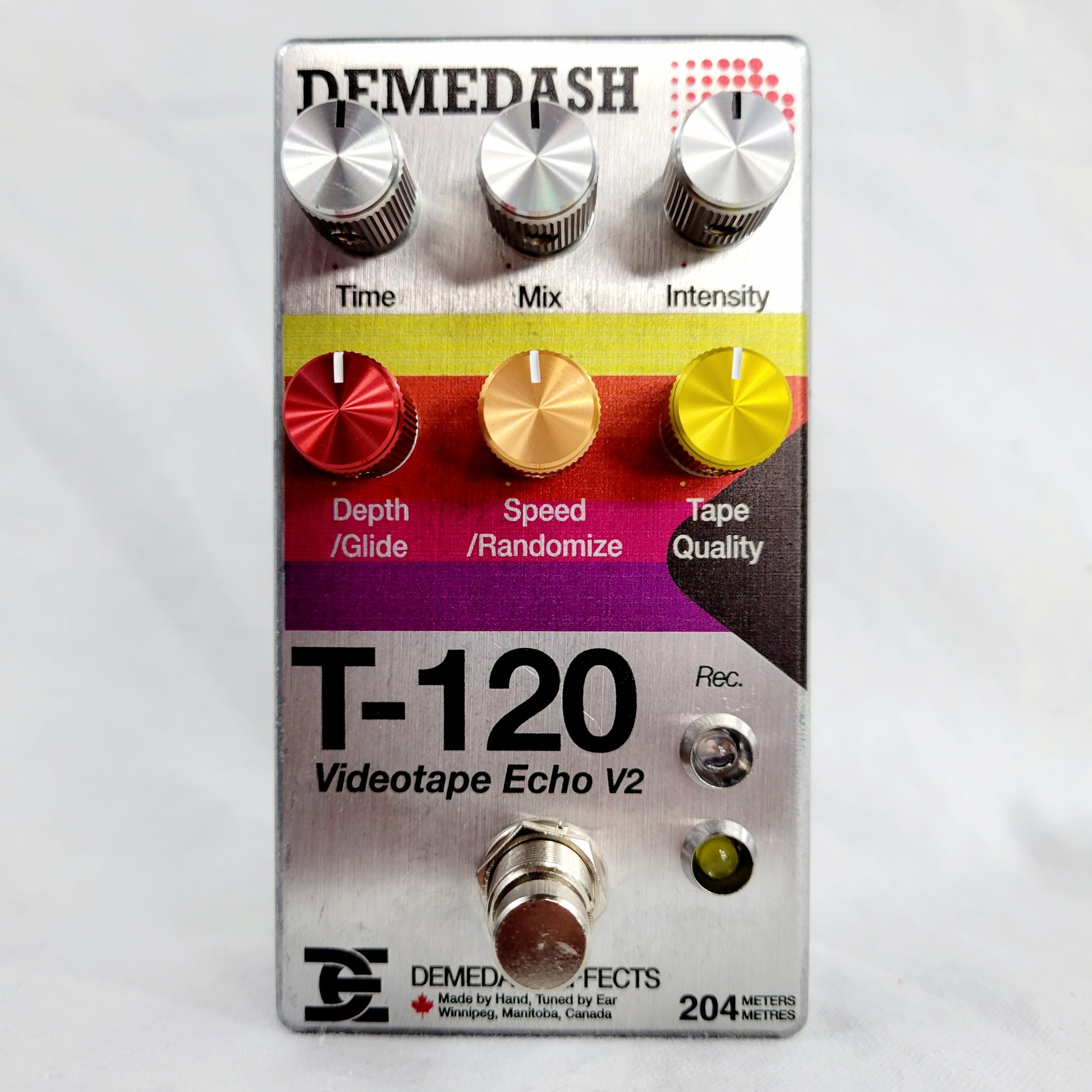

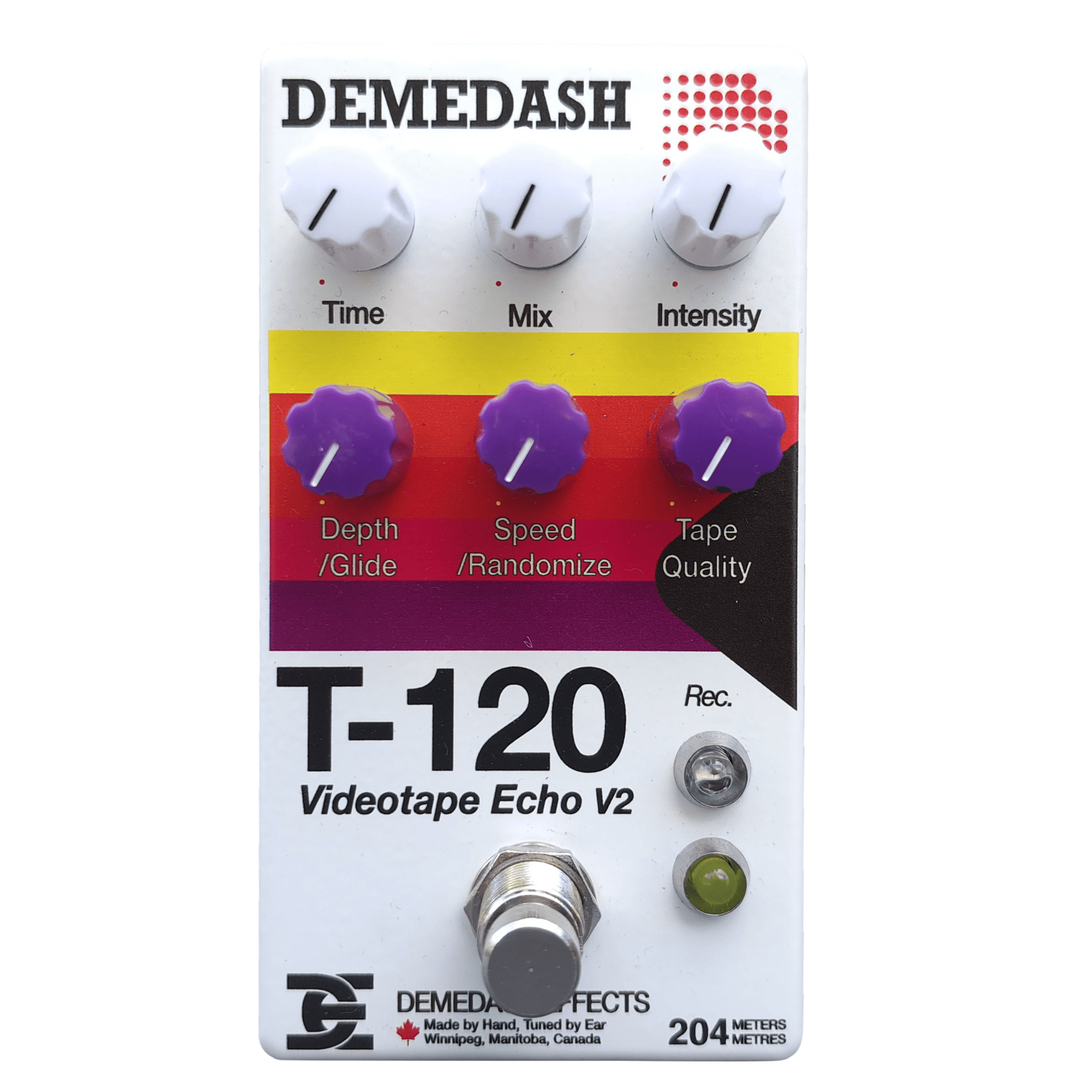

The Demeash T120 V2, introduced in June 2020, introduces soft switching and two new LFO parameters - 'Glide' & 'Randomize', accessible by holding the footswitch down while the effect is engaged and turning the 'Depth' & 'Speed' Knobs, respectively.
'Glide' controls how smooth the lfo waveform is, taking you from square at the lowest setting, to triangle at the highest.
'Randomize' controls the proportion of periodic (square/triangle) to randomized shapes present in the modulating waveform. At its lowest setting, the LFO will be entirely periodic. At the top setting, it will be entirely random. In between, varying mixtures of the two are available.
Sets the duration of time before each recorded note is played back, as well as the duration of time before each subsequent repitition of the note.
At minimum about 60ms of delay is available. Setting it here allows you to use the primary and secondary LFO controls (Depth, Speed, Glide and Randomize) to create a number of different
Sets the balance between the delay signal (Wet) and the unnafected (dry) signal. When fully counterclockwise only the unaffected signal will be audible. As you turn this knob clockwise, the volume of the dry signal will decrease as the volume of the wet signal increases in volume. When fully clockwise only the delayed signal will be audible.
Sets the volume of the wet signal as fed back into the delay input. This increases or decreases the amount and duration of repeats that echo out.
set high enough, self oscillation can occur. In this case simply turn intensity to zero for a moment to let the regeneration die down.
Varies the amount of pitch-shifting vibrato induced in the recorded signal. More clockwise = more pitch swing. Higher delay times and faster modulation speeds can also lead to wider pitch swing.
Sets the rate of pich-shifting vibrato in the recorded signal
Low settings give an uncalibrated, wavering sound, while the higher settings can give the impression that the tape is being eaten.
Sets how smooth the modulation is.
At minimum, the pitch will shift in immediate jumps, giving a glitchy sound. At maximium, smooth, out of tune, wavering sounds are in full supply.
Sets the amount of randomness in the modulating waveform. At minimum, the pitch shifting vabrato is full periodic, sounding like a warped record or a misaligned tape head. As the control increases, more random shifts are introduced. In full clockwise position, the modulating waveform is purely random, sounding like a stretched tape.
