Recovery Phase (Dual Modulation)

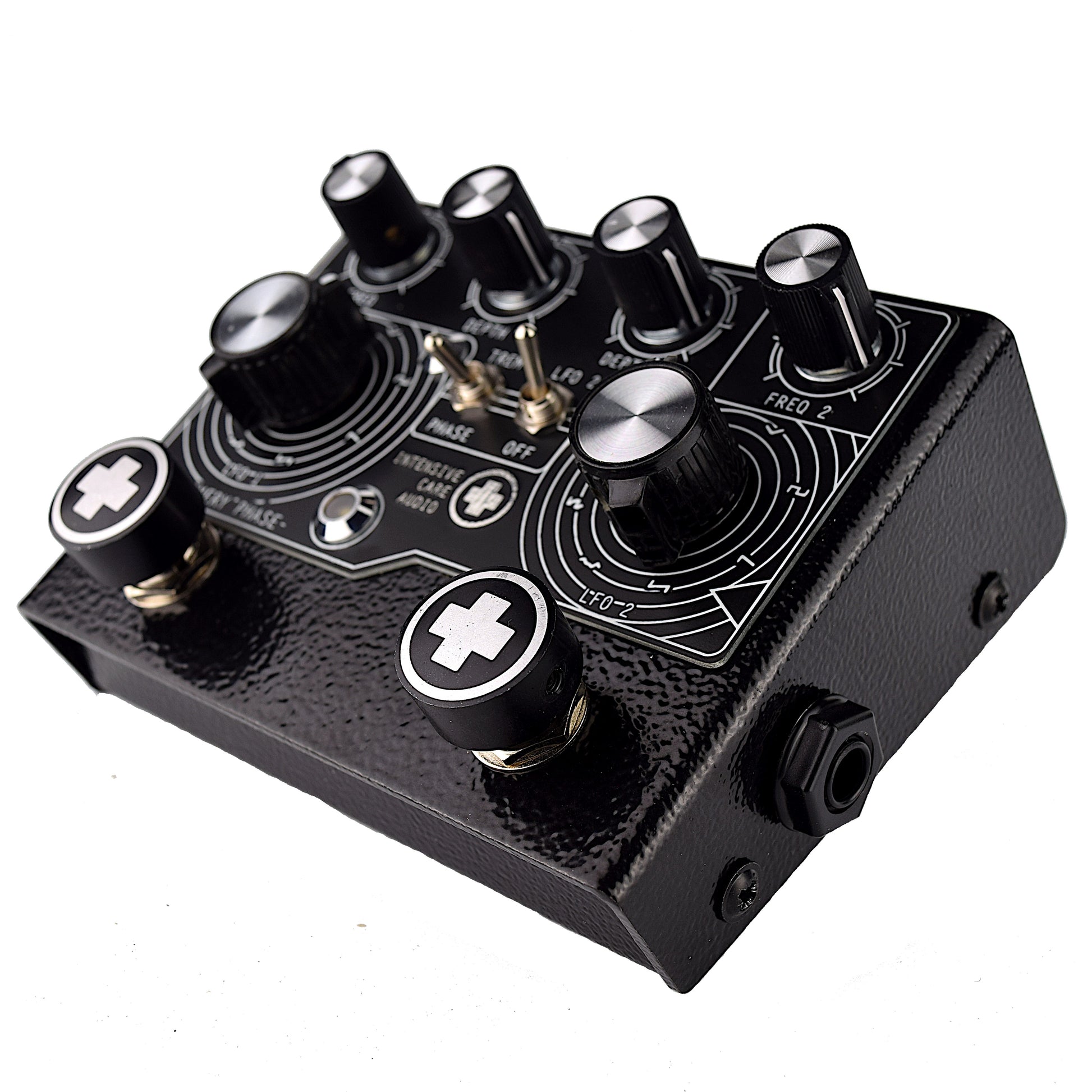

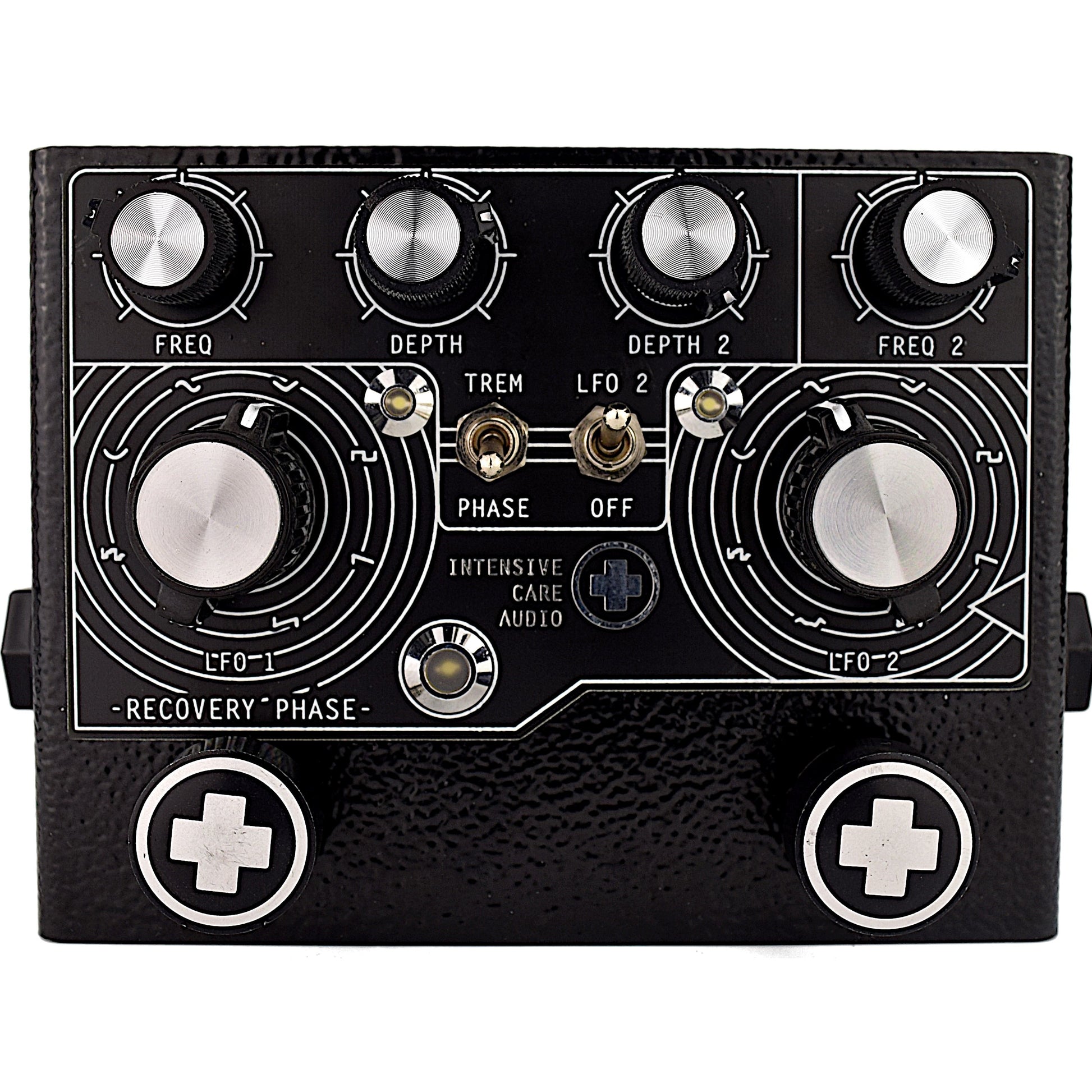

Intensive Care Audio's "Recovery Phase" is a dual modulation unit capable of bi-phase and phase shift/tremolo effects.

• LFO 1:

  An 8 position rotary switch allows you to select 1 of 8 available LFO waveforms. From left to right these are; Random Slopes, Random Steps, Sweep, Sine, Triangle, Square, Ramp Down, Ramp Up.   This LFO is the primary LFO used in the phase shifting.

  Holding the BYPASS switch for 3 seconds gives access to a hidden mode where LFO 1 controls LFO 2.



• LFO 2:

  An 8 position rotary switch allows you to select 1 of 8 available LFO waveforms which control either secondary phase shifting or a tremolo.




  FREQ: Sets the frequency (speed) of LFO 1.




  DEPTH: Sets the depth of LFO 1.




  DEPTH 2: Sets the depth of LFO 2




  FREQ 2: Sets the frequency (speed) of LFO 2.




• TREM/PHASE SWITCH: LFO 2 controls either secondary phase circuit

  tremolo circuit.

• LFO 2/OFF SWITCH: When in ‘PHASE’ mode this switch either turns on

  or off LFO 2. When in ‘TREM’ mode this switch selects between LFO 2

  controlling tremolo only or tremolo and secondary phase shifting.
