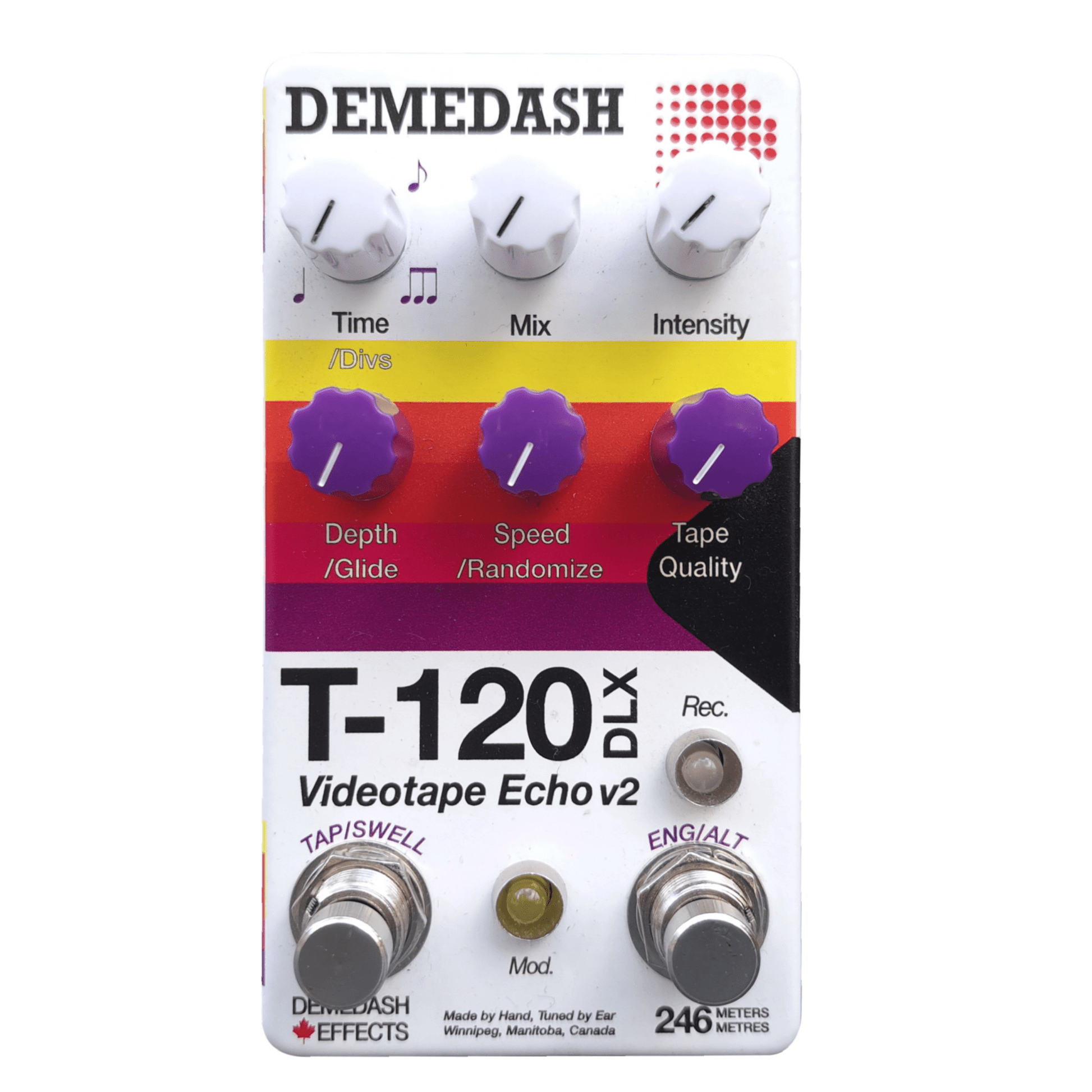

Demedash Effects T-120 Videotape Echo Deluxe V2 Front

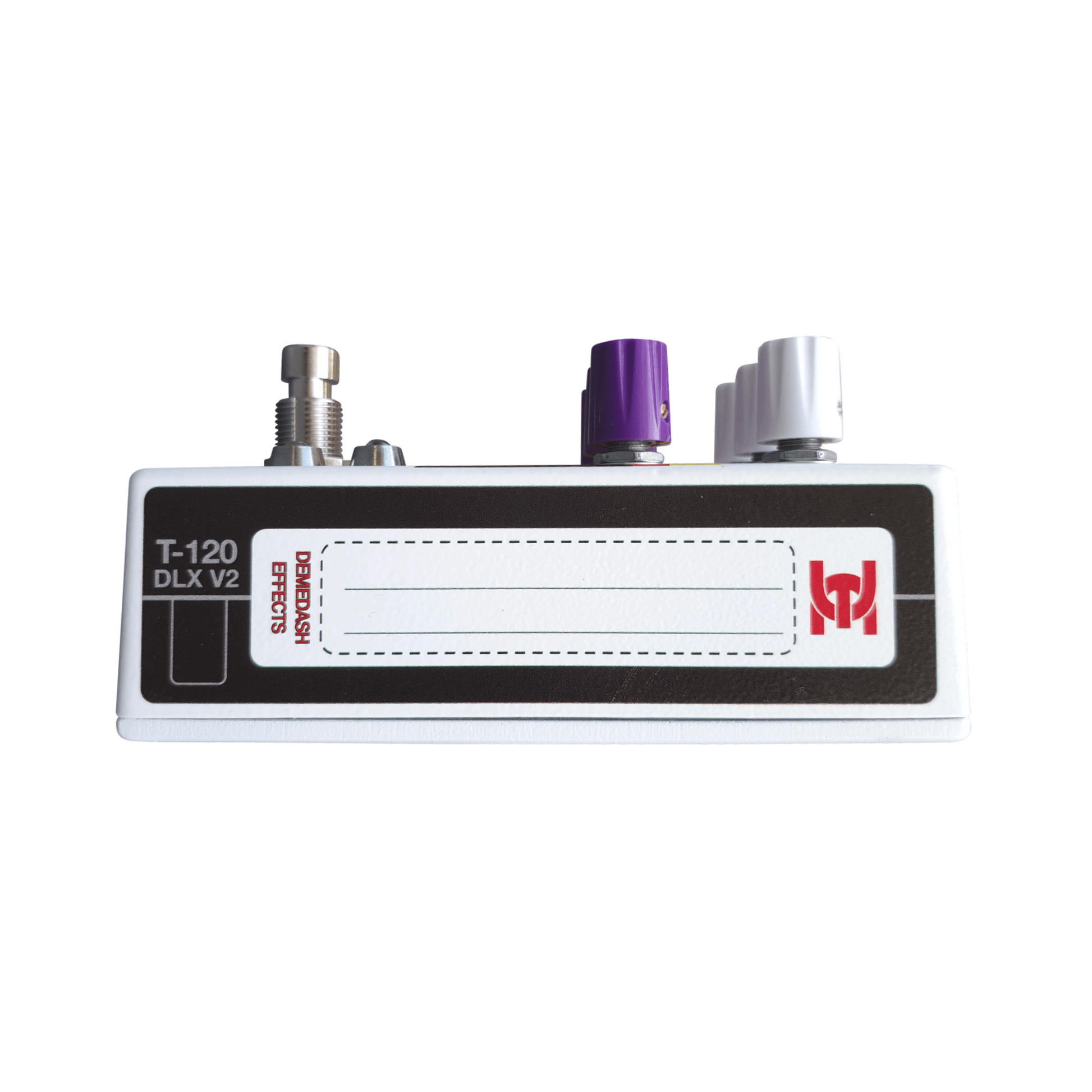

Demedash Effects T-120 Videotape Echo Deluxe V2 Left Side
Demedash Effects T-120 Videotape Echo Deluxe V2 Right Side
Demedash Effects T-120 Videotape Echo Deluxe V2 Bottom Right Corner
Demedash Effects T-120 Videotape Echo Deluxe V2 Top Left Corner

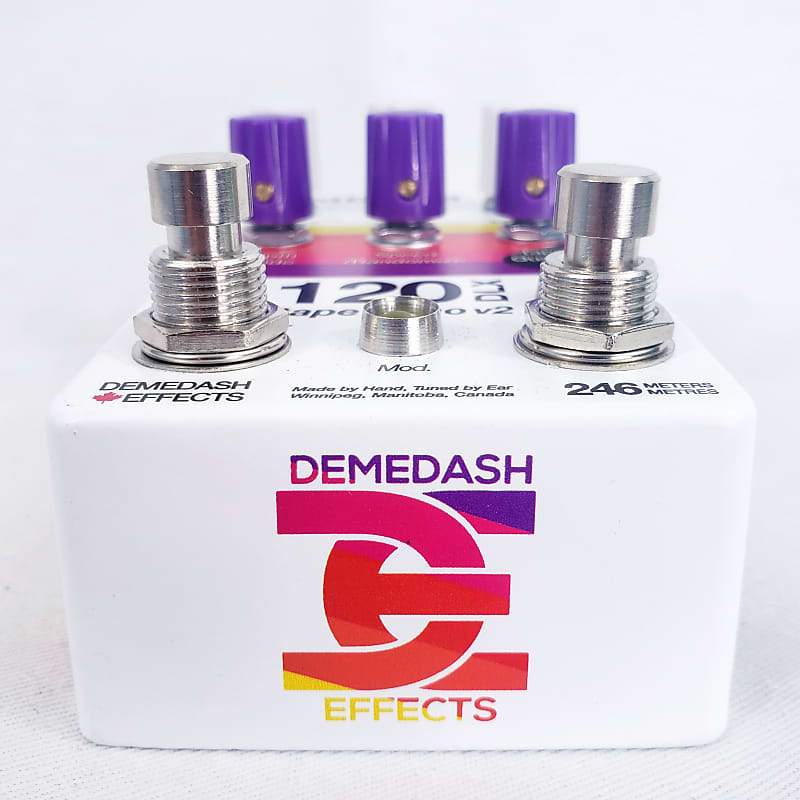

Demedash Effects T-120 Videotape Echo Deluxe V2 Bottom

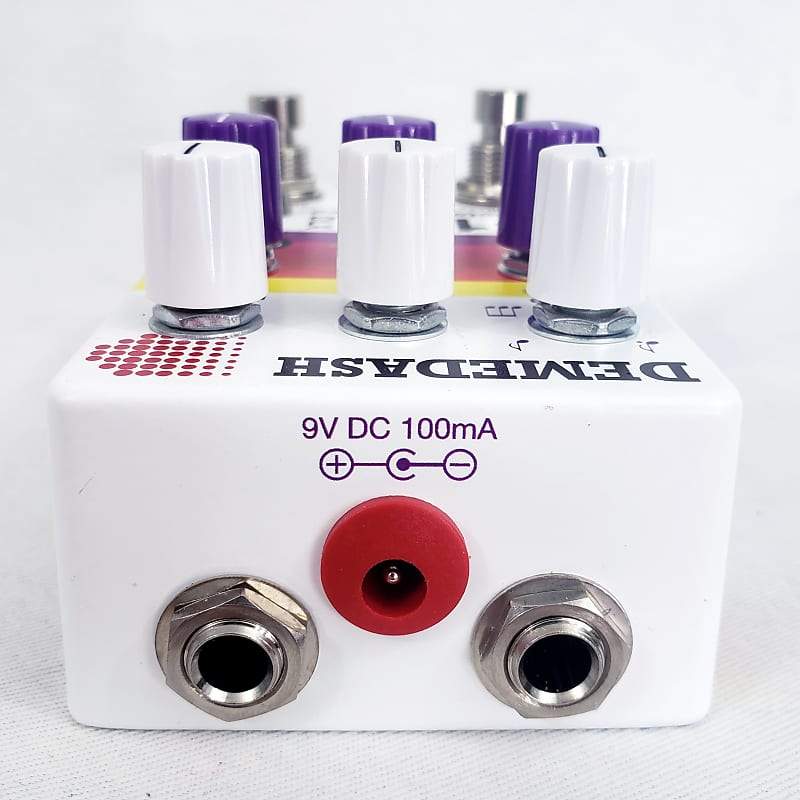

Demedash Effects T-120 Videotape Echo Deluxe V2 Top

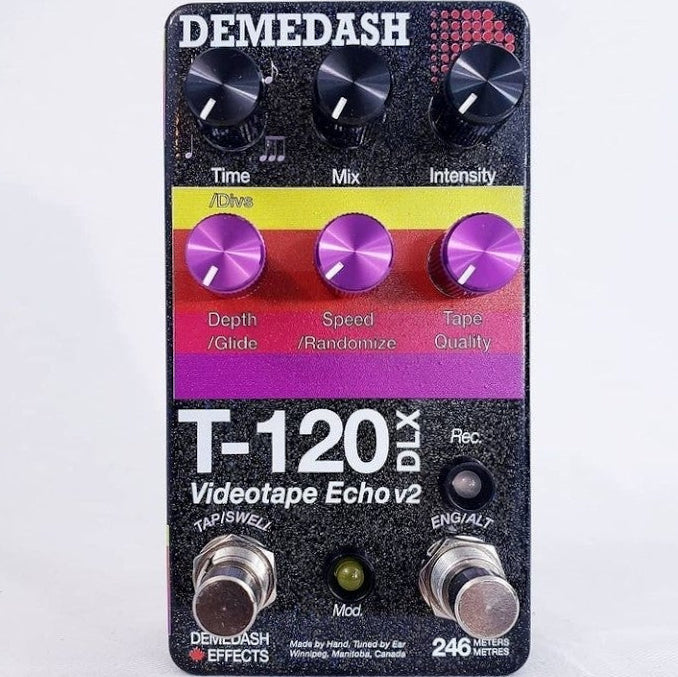

Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Front

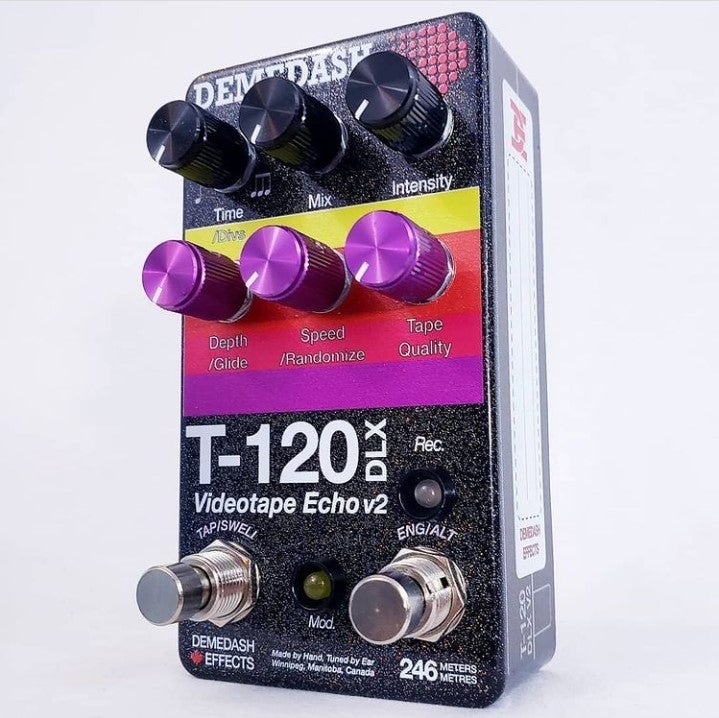

Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Right Side
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Front
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Bottom Right Corner
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Top Left Corner
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Top
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Bottom
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects Pink Videotape Echo Deluxe V2
Demedash Effects T-120 Videotape Echo Deluxe V2 Front

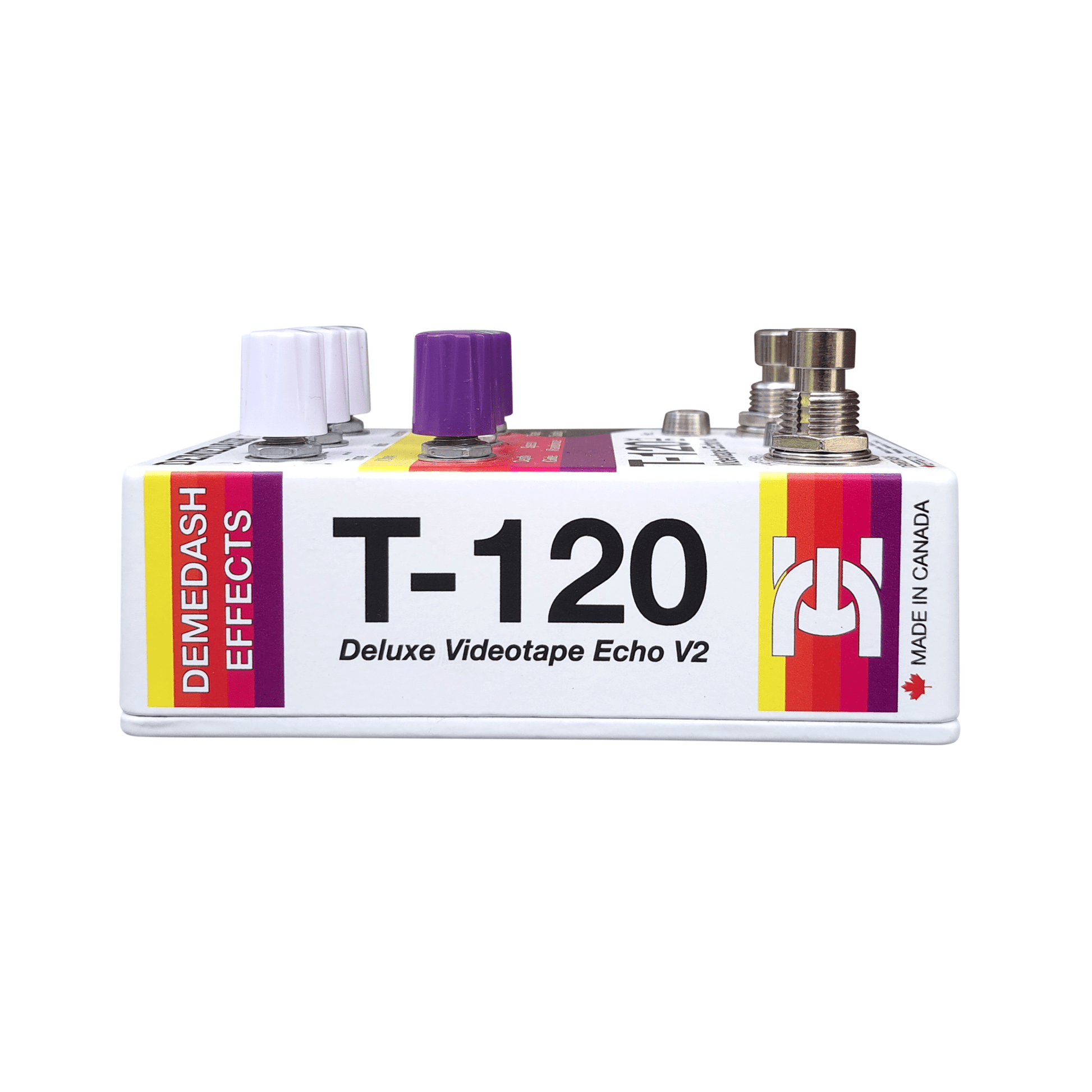

Demedash Effects T-120 Videotape Echo Deluxe V2 Left Side
Demedash Effects T-120 Videotape Echo Deluxe V2 Right Side
Demedash Effects T-120 Videotape Echo Deluxe V2 Bottom Right Corner
Demedash Effects T-120 Videotape Echo Deluxe V2 Top Left Corner

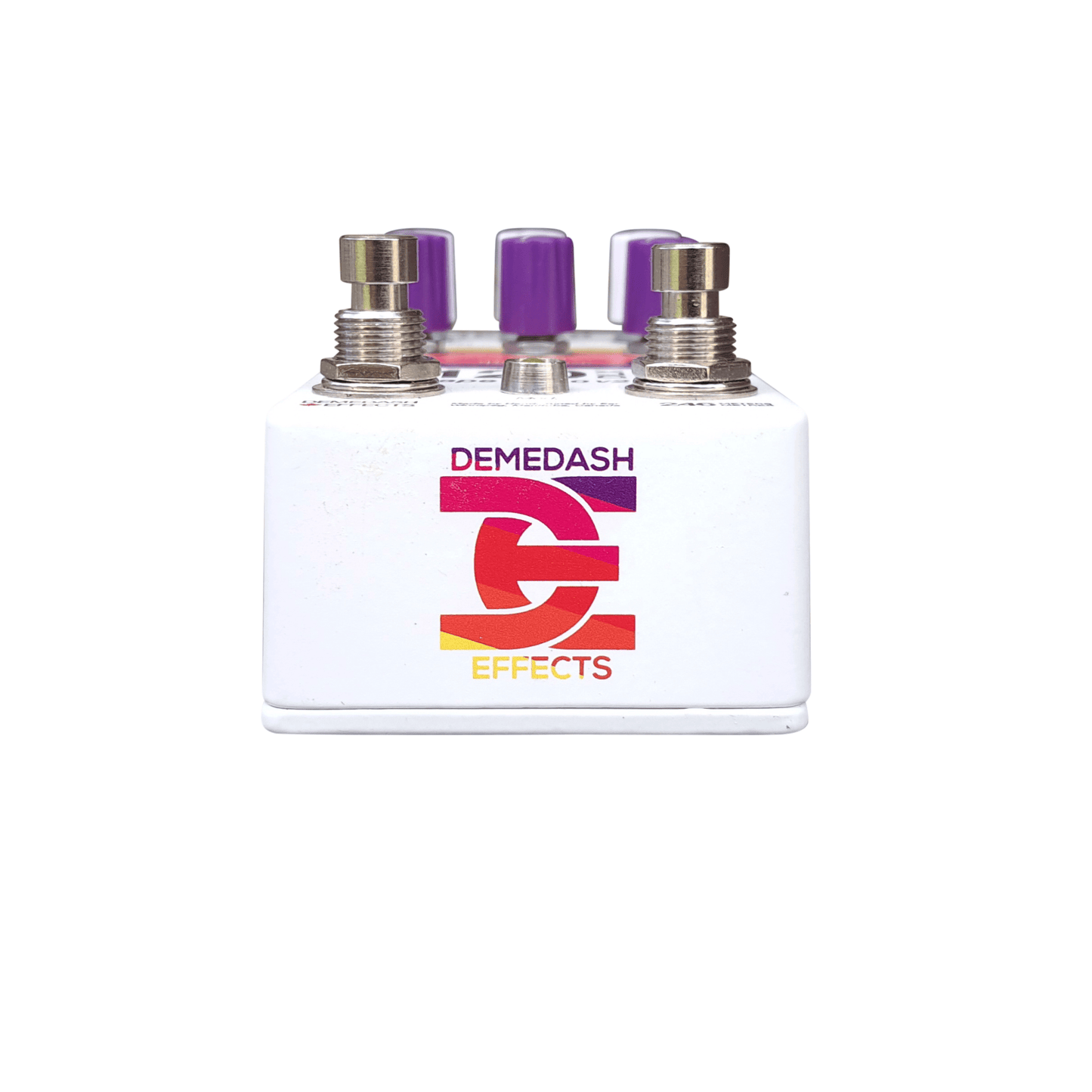

Demedash Effects T-120 Videotape Echo Deluxe V2 Bottom
Demedash Effects T-120 Videotape Echo Deluxe V2 Top
Demedash-T-120-Videotape-Echo-Deluxe-V2-Demo
Demedash-T-120-Videotape-Echo-Deluxe-V2-Demo
Demedash-T-120-Videotape-Echo-Deluxe-V2-Demo
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Front
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Right Side
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Front
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Bottom Right Corner
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Top Left Corner
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Top
Demedash Effects Black Sparkkle T-120 Videotape Echo Deluxe V2 Bottom

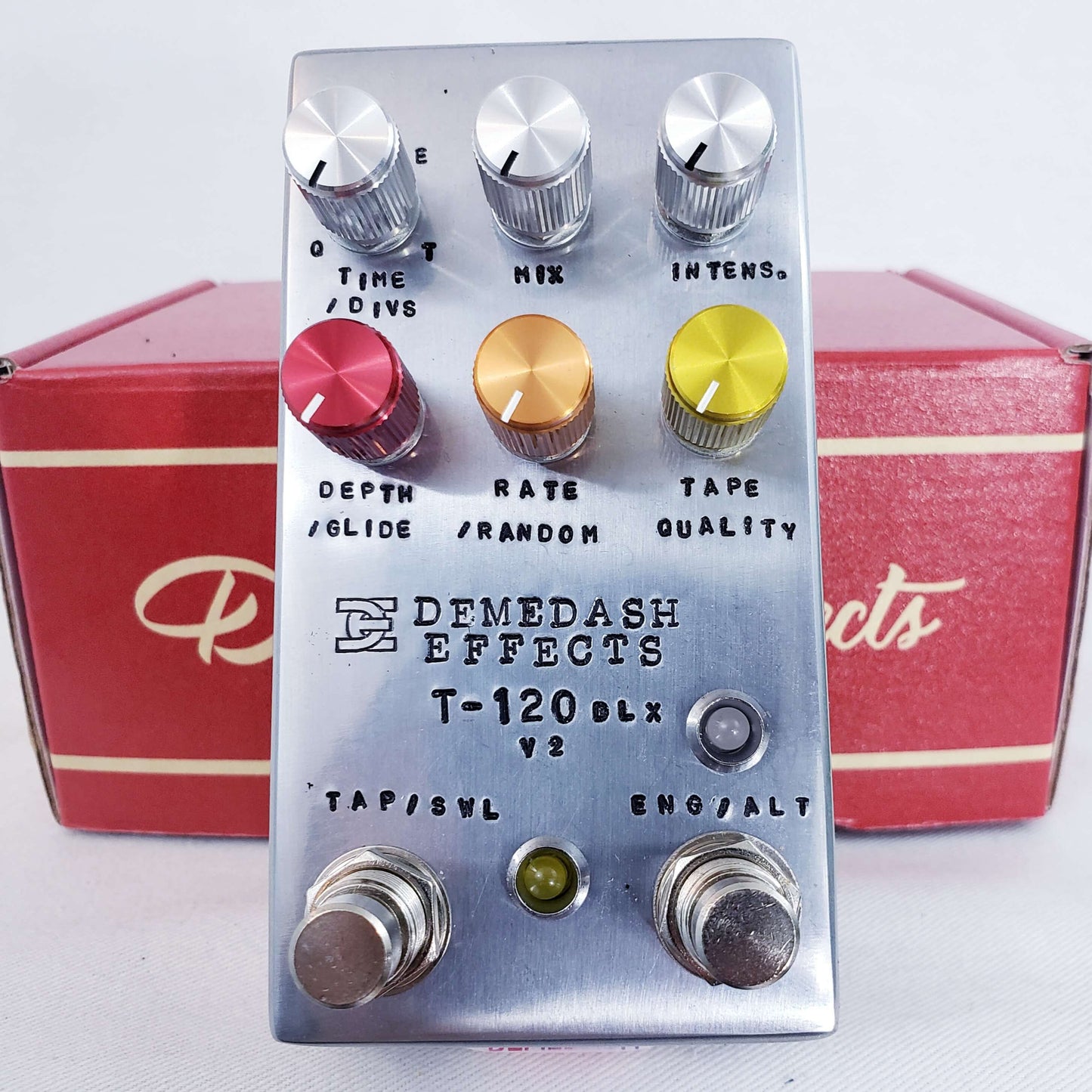

Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped
Demedash Effects T120 Videotape Echo Deluxe V2 Hand Stamped

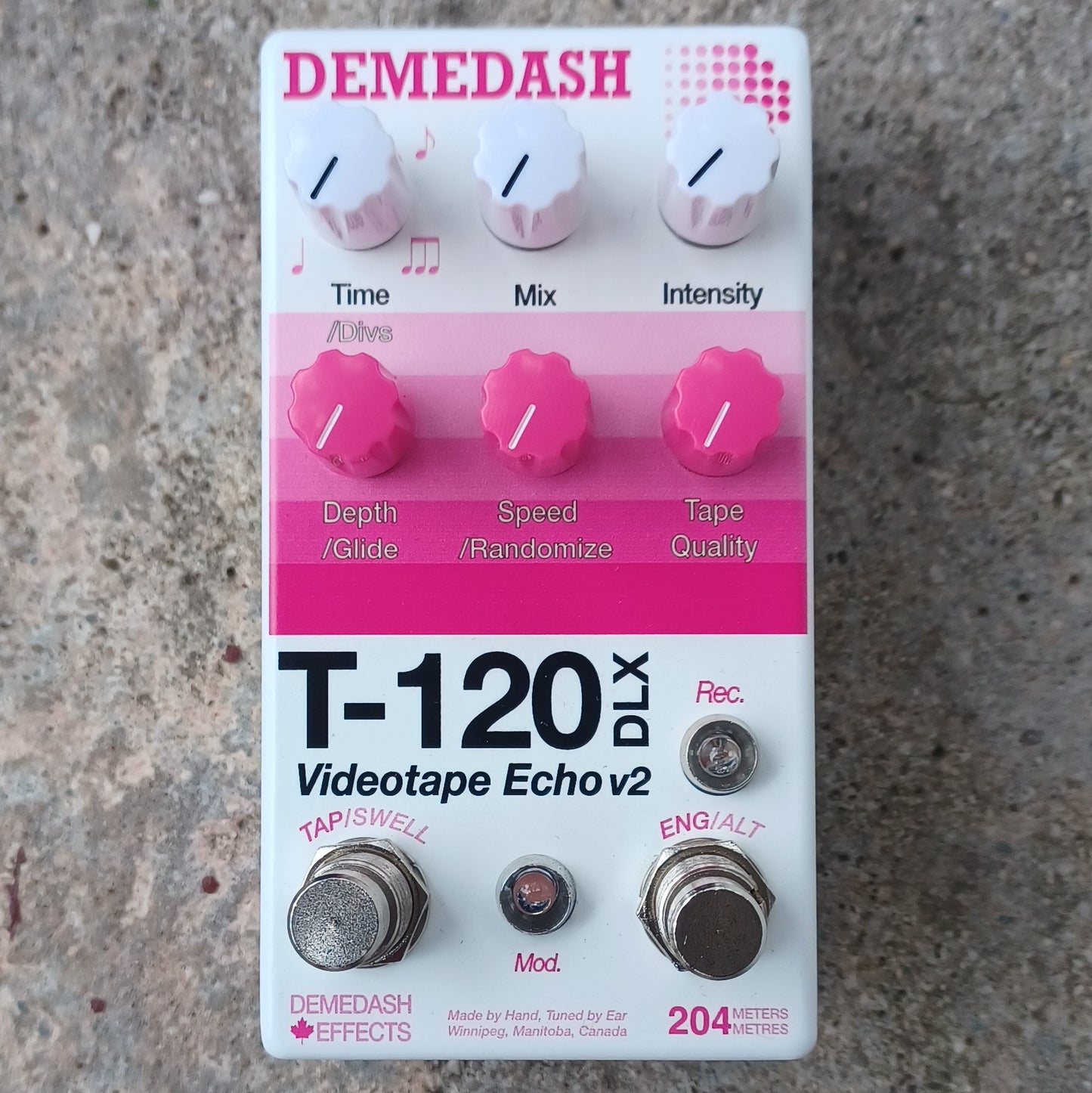

Demedash Effects Pink Videotape Echo Deluxe V2

T120 Videotape Echo Deluxe V2

$325.00 Sale Save
Color T-120 Videotape Echo Deluxe V2
FREE 2DAY Shipping!

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Analog signal path. 1200ms Max delay time.

The T120 Deluxe , has all the attributes of his litte brother, the V2, with these brand new Features.


Tap Tempo Tape Tapestry
 4 selectable tap divisions allow you to choose whether you'd like to use Quarter notes, Dotted Eighths, Eighth notes or Triplets. Just like on the T120 DLX V1, you can hold down this footswitch in either bypass or during regular operation to activate the swell feature and bask in the chaotic echoes that rise up and self oscillate.


Smooth or Glitchy Use the Glide control to adjust the smoothness or squareness or the LFO, giving you access to random computery bleeps and bloops or taking you into the realm of smoothly varying uncalibrated tape-head mechanisms that cause your pitch to drift.


Echo Trails or not? Decide later. Select whether echo trails are activated on the fly! While the DLX V1.5 allowed trails selection with an internal DIP switch, the DLX V2 lets you switch them on and off right from the front panel with no fuss.


3-D for your ears A new stereo-field generation design improves the depth of field by keeping your dry signal completely identical on both left and right channels, and inducing changes only in the wet signal on each respective side.

Demedash Effects T-120 Videotape Echo Deluxe V2 User Manual



  • Time

    At minimum about 60ms of delay is available. Setting it here allows you to use the primary and secondary LFO controls (Depth, Speed, Glide and Randomize) to create a number of different Chorus and Vibrato textures.



  • Tape Quality

    Raises or lowers the bandwidth of the delayed signal. At low settings echos degrade further and further with each repeat, reducing fidelity and allowing the playback to float on top of your playing.



  • Depth

    Varies the amount of pitch-shifting vibrato induced in the recorded signal. More clockwise = more pitch swing. Higher delay times and faster modulation speeds can also lead to wider pitch swing.



  • Bypass/Engage

    When in bypass you can also press and hold this switch (one second or more) to 'momentarily' engage, returning to bypass upon release.



  • Alternate Parameter Access

    R. Footswitch. While the effect is engaged, hold down the 'engage' footswitch. Once the indicator turns yellow, you are in ALT mode.

    Continue to hold the footswitch down and turn the knob of the alternate parameter you wish to adjust.

    Once you've released the footswitch and the indicator light turns back red, any modifications you've made to the alternate parameters are saved so the next time you turn on your T120 , they'll still be just the way you set them.





  • Tap Tempo

    L. Footswitch. Tap the Lefthand footswitch two or three times to enter a tempo. The time between the last two taps is what will be set. The maximum delay time is about 1200ms so if the tap tempo exceeds that then it will be divded in half, giving you a double time echo that remains aligned with the desired rhythm. Divisions are applied beforehand, so as long as your divided tempo is under 1200ms you get what you'd expect. Tempos can be entered in bypass or engaged modes.



  • Echo Swell

    Right Footswitch. To engage a swell-that is, to momentarily set the repeats of the delay to maximim intensity, hold down the Left footswitch.

    You can do this both while the effect is engaged and while the effect is bypassed if you wish to momentarilyactivate the affect and add a swell to a note.



  • Glide

    Depth's Alternate Parameter. Controls how smooth/Jittery the modulating waveform is.

    Set fully clockwise the pitch will jump to random values (Random levels if using a fully random wave, a square wave if using a fully periodic wave).

    Set clockwise the pitch will vary smoothly up and down (Random slopes if using a random wave, a triangle wave if using a fully periodic wave). This is the factory setting.

    In between, you will have a waveform that glides quickly to its target value and sits there before gliding to the next one.



  • Randomize

    Speeds Alternate Parameter. Controls the shape of the modulating waveform. Mix between fully periodic (Square/Triangular) and completely randomized (continuously varying levels/slopes).

    This knob offers a continuous spectrum of blending options, so there is a huge variety of shapes to play with.

    Slow, fully random modulation is an especially nice touch when trying to dial in the sound of a mid-90s wedding video, as one often does. Factory setting is 50% randomization.



  • Divisions

    Time's Alternate Parameter. 4 way selector between the various tap delay settings, evenly spaced from fully counterclockwise to fully clockwise.

    1. Quarter(Q)
    2. Dotted Eighth (DE)
    3. Eighth (E)
    4. Triplet (T)

    When you are in ALternate Parameter Mode, as you turn the Div control, the indicator LED will blink red once each time you update the selection to a  new tap tempo.
