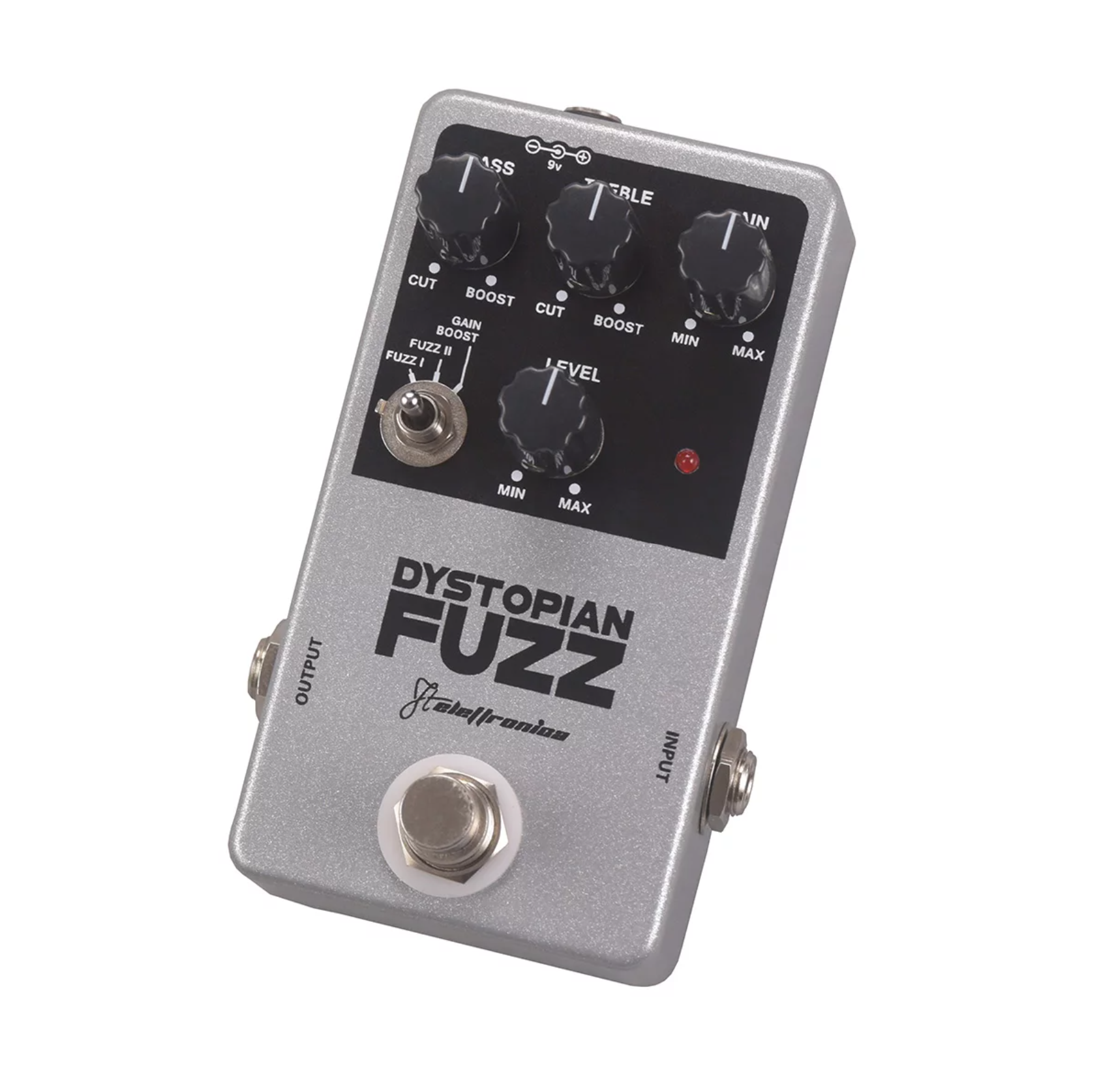

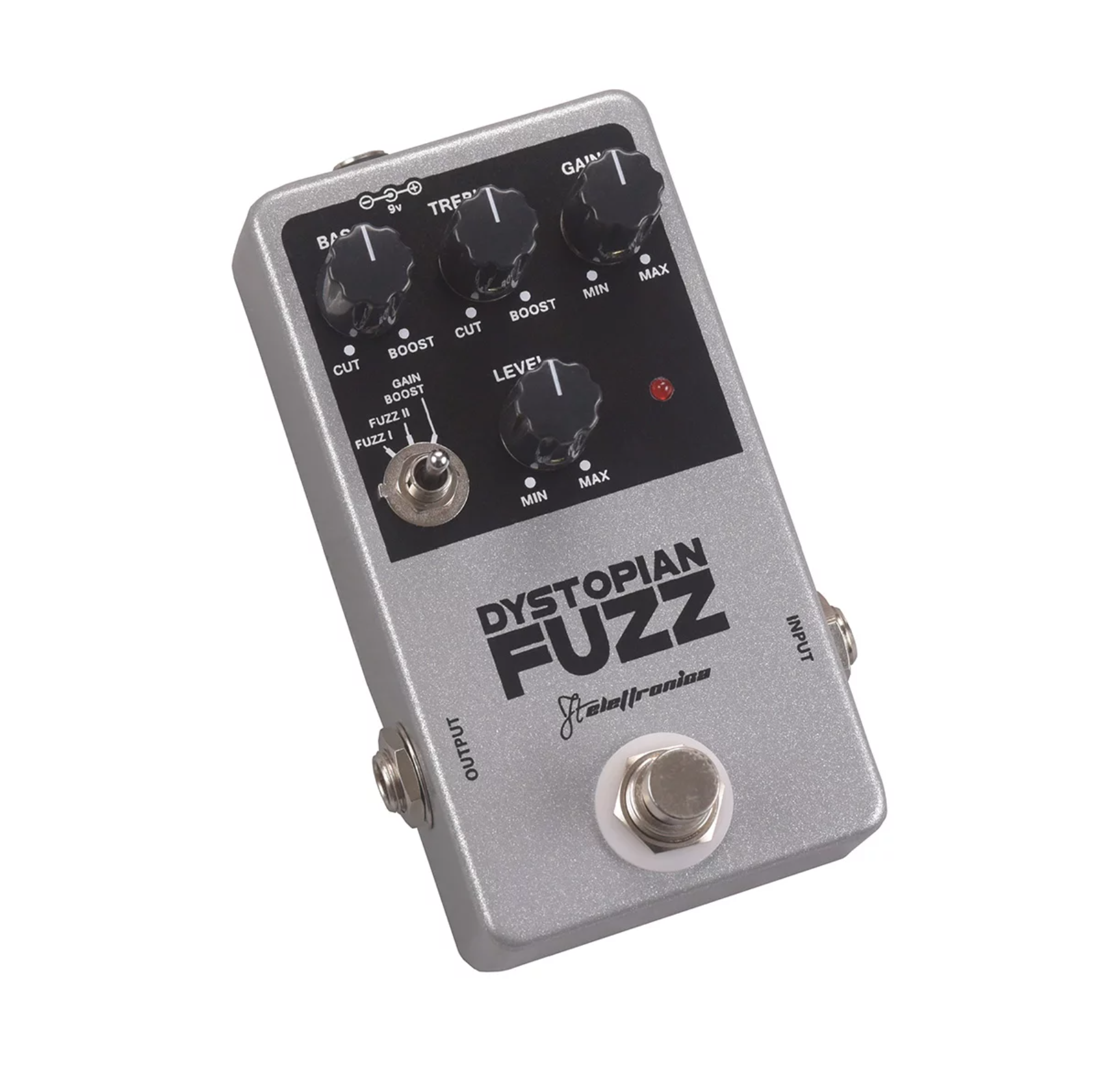

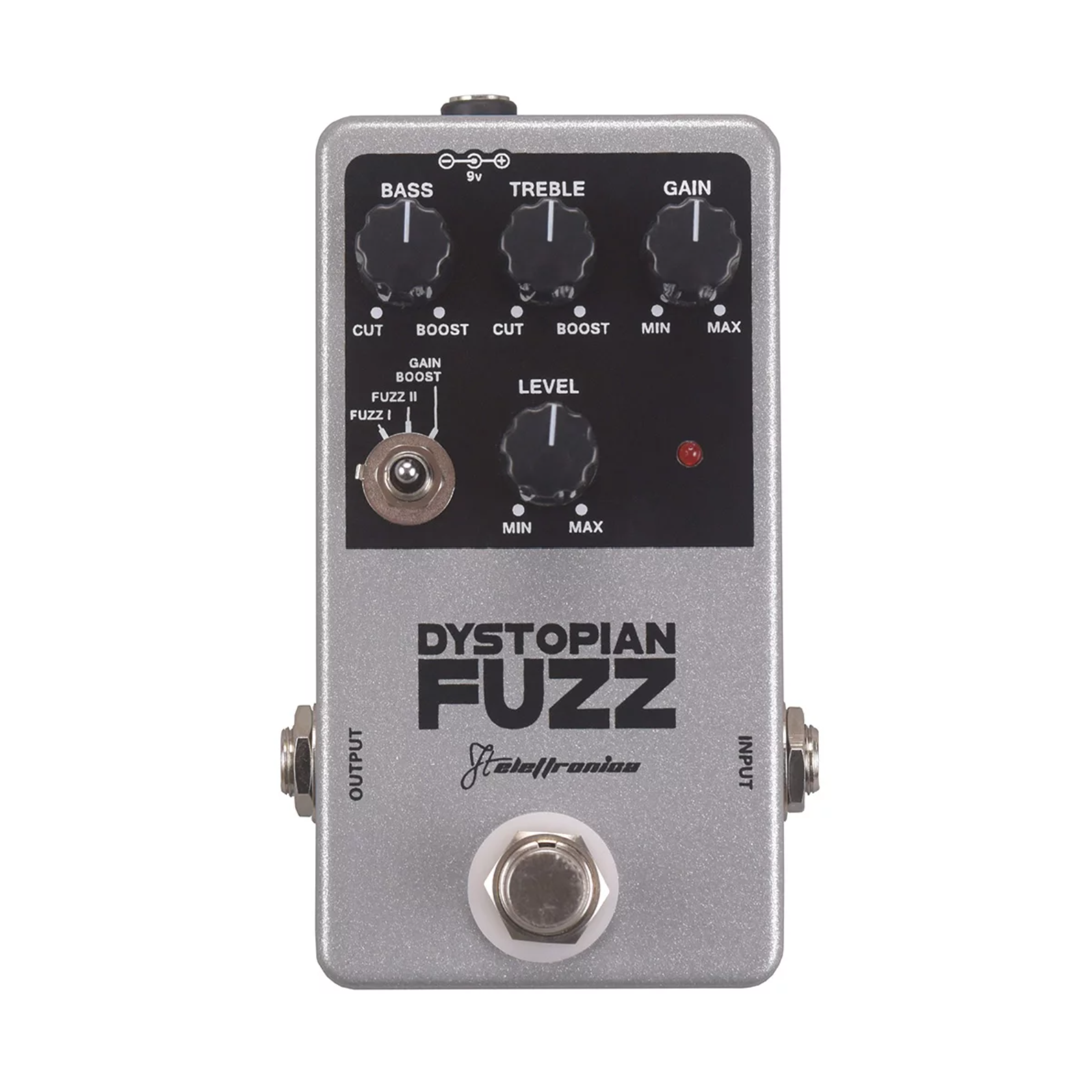

Dystopian Fuzz

Level Knob

Used to adjust the volume level of the sound while the effect is applied. Should be adjusted so there is no noticeable difference between the times when the effect is applied and when the sound is normal.

Tone Knob (Treble)

Allow the higher frequency portions to be boosted/cut. At the center, the tone will be flat. Boost the higher frequencies by turning it towards the right. Turn toward the left to cut them.

Tone Knob (Bass)

Allow the lower frequency portions to be boosted/cut. At the center, the tone will be flat. Boost the lower frequencies by turning it towards the right. Turn toward the left to cut them.

Mode Selection Switch

Allows you to select the function you wish your Dystopian Fuzz to perform.

FUZZ 1

A basic fuzz sound that places emphasis on the harmonics.

FUZZ 2

A full-bodied fuzz sound that places emphasis on the lower frequency range.

GAIN BOOST

Ideal for boosting the power of a guitar with limited output power (such as one with a single-coil pickup); or for increasing the amount of distortion you can obtain when using a distortion-type effects units or guitar amplifier.

 Gain Knob

(When FUZZ 1 or FUZZ 2 is selected)

Allows you to adjust the depth of the fuzz. The distortion depth is increased (and sustains will be lengthened) as you move the knob to the right.

(When GAIN BOOST is selected)

Allows you to adjust the amount by which the gain is to be boosted. The gain is increased the more you move the knob to the right.

* Oscillation could be produced if the depth is increased too much.
