Pedal Features
Pedal Features
• Pitch Shifting of up to 2 Octaves Up or Down
• Ballistics Controls with Trajectory LED Meter
• Switchable Classic & Chords Modes
• Selectable Momentary or Latched Footswitch Operation
• True Bypass
• Compact Design
• Solid Construction
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted);ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz;ref = 1 dBu w/ unity gain
A/D/A Conversion: 24-bit
Input Type: 1/4” Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on)
True Bypass (Effect bypassed w/ Momentary switch off)
Output Type: 1/4” Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on)
True Bypass (Effect bypassed w/ Momentary switch off)
Dimensions: 4.75” (L) x 2.875” (W) x 1.75” (H)
Weight: 0.36 lbs.
Power Consumption: 2.1Watts (235 mA typical @ 9VDC)

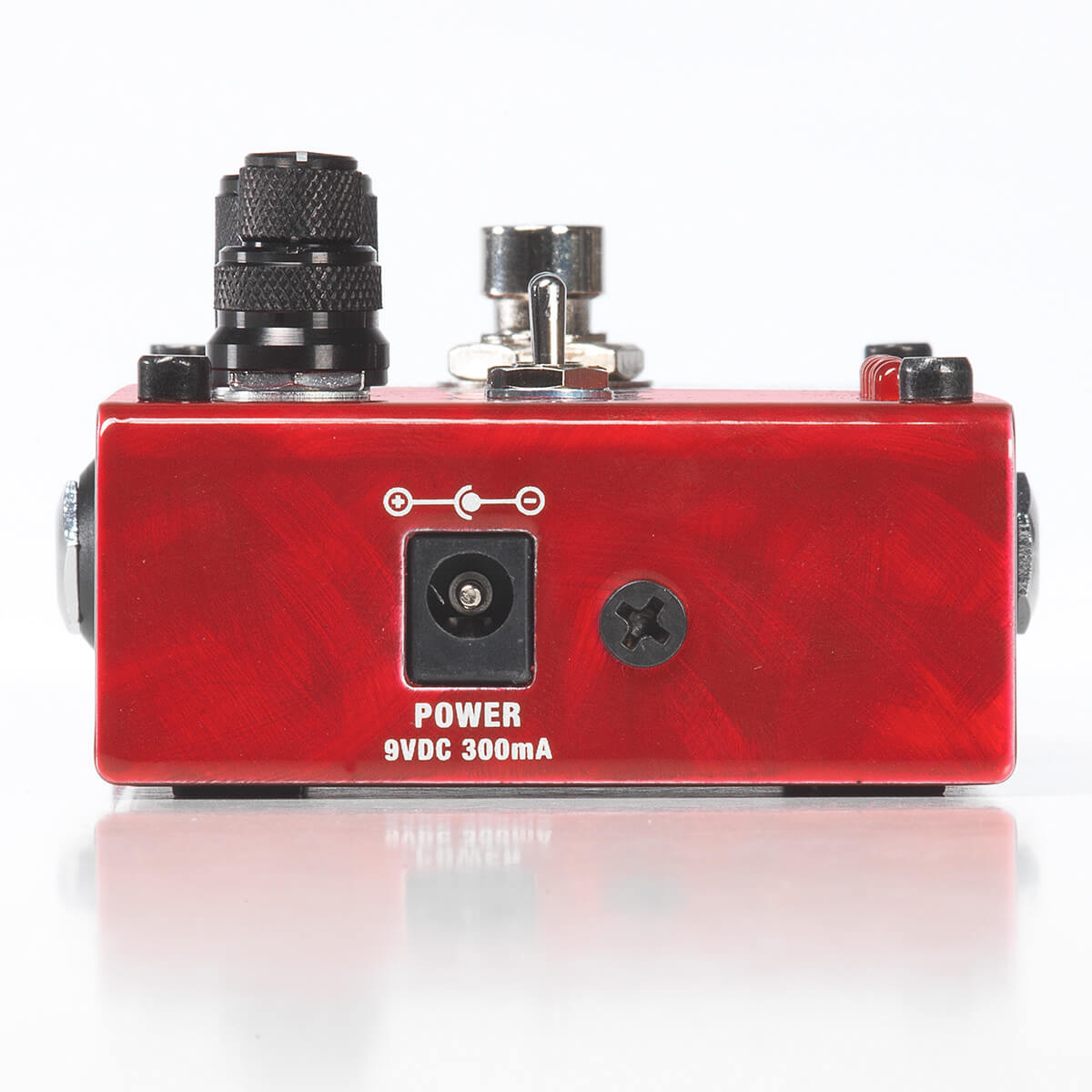

Power Requirements: 9VDC External Adapter (sold separately)
Recommended Power Adapter (Not Included)
Power Adapter Model: PS0913DC-01 (US, JA, EU)
PS0913DC-02 (AU, UK)
PS0913DC-04 (US, JA, EU,AU, UK)
Power Adapter Polarity:
Power Adapter Output: 9VDC 1.3 A
Couldn't load pickup availability

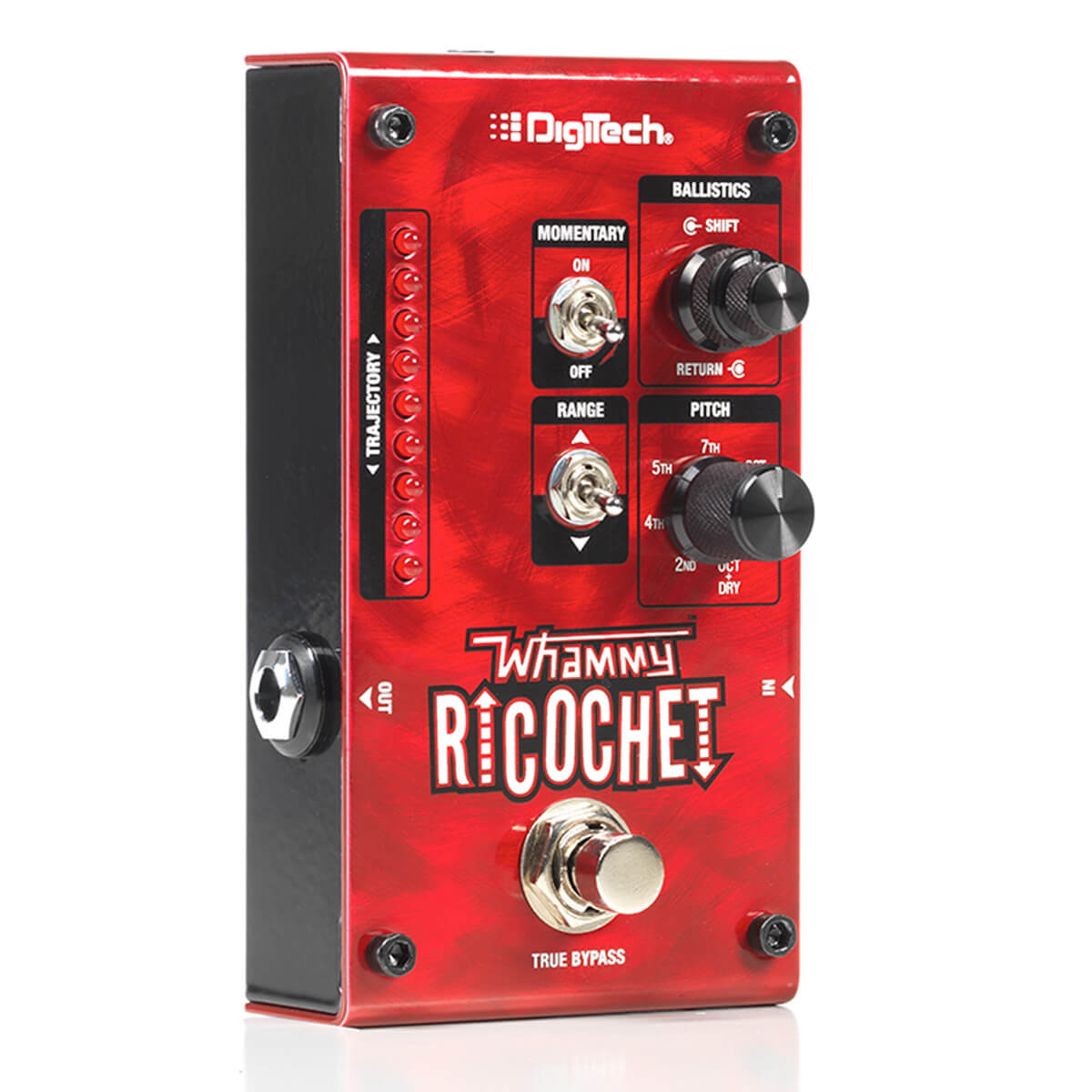

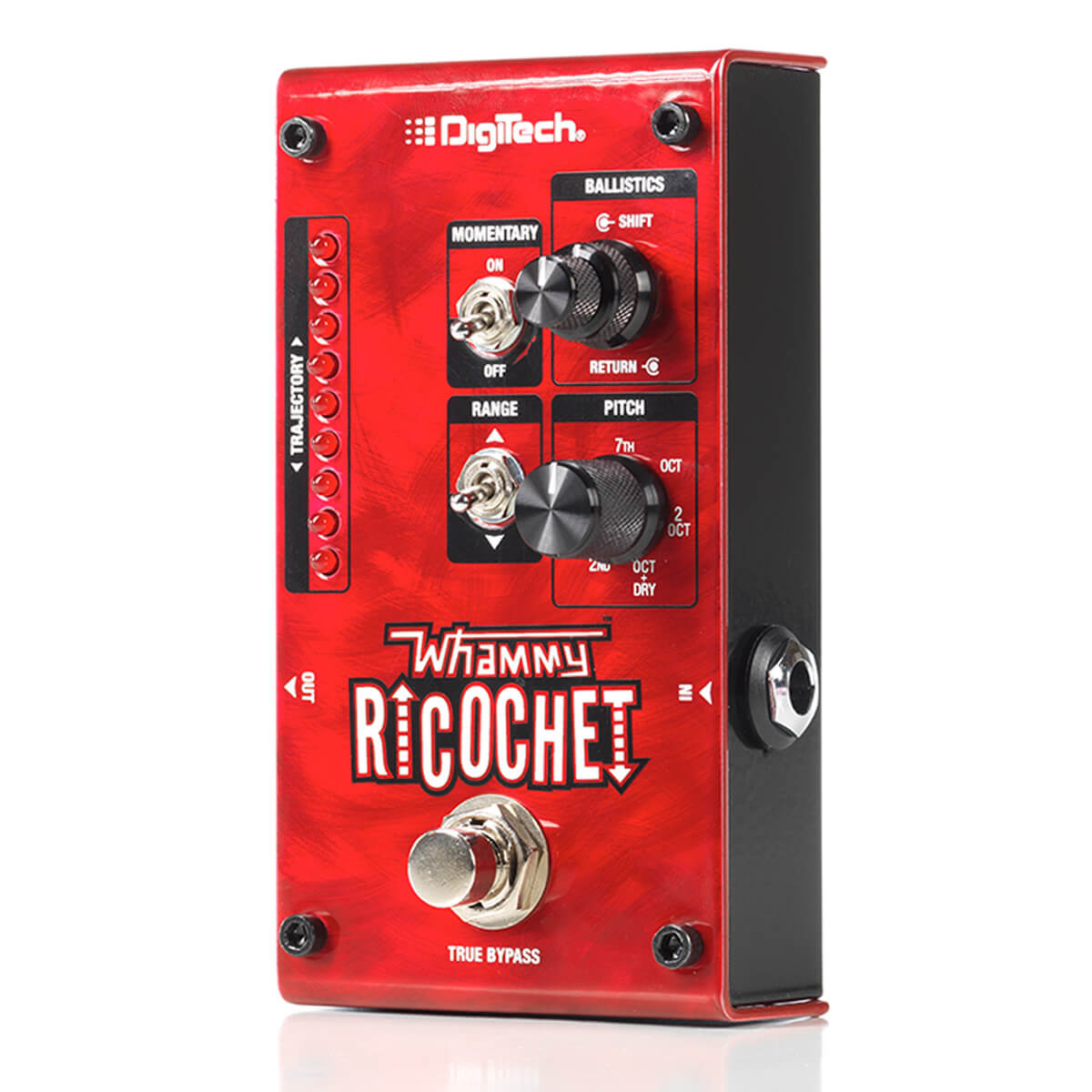

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections – 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch.
The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times.
All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

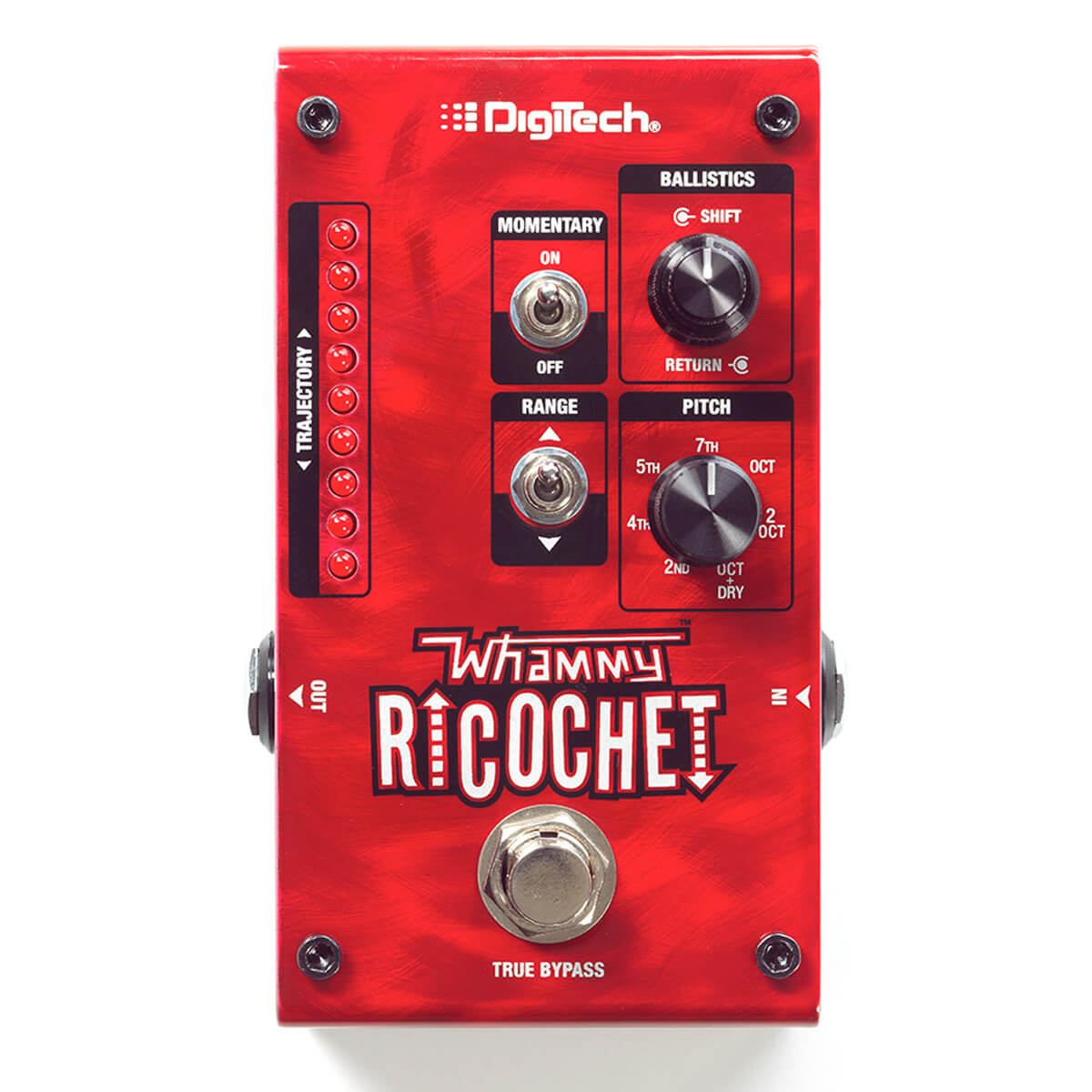

The Whammy effect can be turned on or off using the Footswitch, which can operate as a momentary or latching switch. The
Trajectory LED: ladder lights in sequential order to provide a visual indication of pitch shifting rate and direction. The incoming note can be pitch shifted up or down by the following
intervals:
• 2ND
• 4TH
• 5TH
• 7TH
• OCTAVE
• 2 OCTAVES
• OCTAVE + DRY
Ballistics Knobs: This concentric pot consists of two knobs, SHIFT and RETURN. The SHIFT knob sets the rate at which the incoming note will be pitch shifted to the selected interval when the effect is enabled. The RETURN knob sets the rate at which the incoming note will return to its normal pitch when the effect is bypassed.
Pitch Knob: Sets the interval of the pitch shifted note. Pitch will be shifted up or down depending on the position of the RANGE switch.
