Pedal Features
Pedal Features
- 14 Reverb Engines — Ventris features 12 onboard reverb engines accessible via the center selector wheel, plus an expanding collection of reverb engines available via the Neuro Desktop Editor and Mobile App.
- 128 Presets — Save up to eight presets accessible via the onboard controls or save up to 128 presets recallable with MIDI program change (PC) messages.
- Dual Reverb Processing — The Ventris Dual Reverb features two independent signal processors giving the pedal essential features like preset spillover and dual reverb effects.
- True Spillover — Two individual signal processors make it possible to change from one preset to another without abruptly cutting off the reverb tail of the original preset (Note: Spillover is unavailable when creating simultaneous dual reverb effects (A+B on the toggle switch)).
- Simultaneous Reverb Processing — Select the A + B toggle switch position and create dual reverb effects. Run two reverbs simultaneously in parallel, series, or left/right signal paths.
- Selectable Footswitch — Choose from a variety of OPTION Footswitch assignments. Control options include preset scrolling, A to B or A plus B reverb toggling, reverb hold, runaway reverb, and tap tempo.
- Hold (a.k.a. “Freeze”) Control — Use the OPTION switch to hold a small portion of the reverb tail in a continuous loop, essentially sustaining a note or chord until the footswitch is released. While the Hold function is engaged it is possible to play over the top of the loop with either a dry signal or the dry/wet signal from the second reverb processor.
- Runaway Reverb — Similar to the Hold function, the Runaway Reverb uses the OPTION switch to loop a small portion of the reverb trail. But rather than maintaining a steady sustain, the loop is fed back into the reverb processor, creating a building self-oscillation effect.
- A to B Reverb Toggling — Use the OPTION switch to toggle between any preset’s A and B reverb, or use it to toggle from a single reverb to reverb A + B.
- Stereo Input and Output Jacks — Create dramatic stereo reverb effects or set up an external effects loop.
- Analog Dry Through — For most of the reverb engines and signal routing options the dry signal remains an analog signal and does not pass through the signal processor at any stage while the pedal in engaged.
- Deep Editing Functionality — Adjust additional parameters, save and share personal presets, and download bonus reverb engines with the Neuro Desktop Editor or Mobile App. (Check the Neuro tab for more details).
- Complete MIDI Functionally — Receives MIDI program change (PC) or continuous controller (CC) via the 5-pin MIDI DIN Input (also includes a MIDI Thru jack), the USB port, or in conjunction with the Neuro Hub.
- Universal Bypass — Select either buffered or true bypass.
- Trails Mode — Rather than abruptly cutting off the reverb trails upon bypassing the effect, Trails Mode allows the Ventris Reverb’s trails to decay naturally.
- Expression Control — Program simultaneous expression control to multiple knobs with independent depth and direction assignments for each. Compatible with all Source Audio expression pedals, the Hot Hand 3 Universal Wireless Effects Controller, and 3rd party 1/4” TRS (tip hot) expression pedals.
- External Switching Capabilities — Choose from a variety of external control options with an external 1/4” TRS (tip hot) footswitch. Control options include preset scrolling, hold, runaway, tap tempo, and processor toggling.
Nuero Editor Features
Nuero Editor Features
Connect the Ventris Dual Reverb to the Neuro Desktop Editor or the Neuro Mobile App and explore the power of effect downloading, customization, and sharing that comes with every Source Audio One Series pedal. The Neuro Desktop Editor is a free downloads for Windows and Mac computers. The Neuro Mobile App is a free download for iOS and Android mobile devices (download instructions below).
- Free Effects Downloads — Access a growing library of additional effect engines. Edit those engines and burn them to any position on the effect selector or any of the pedal’s 128 presets.
- Customize Effects — Make deep editing changes with the Neuro Editor’s huge collection of additional parameters.
- Save and Share Customized Presets — Fine tune your reverb effect, then save it to your personal effects library and easily share it with the growing community of Neuro users.
- Download Presets — Explore Source Audio’s ever-expanding, library of free effect presets.
- Simple Connection — The Neuro Mobile App. connects with the Ventris Dual Reverb via the mobile device’s headphone jack and stereo Input 2 on the pedal. A Neuro App connector cable (1/8” to 1/4”) is included with the pedal. The Neuro Desktop Editor connects to your computer via the mini USB port on the top of the pedal.
- USB to Mobile App Connectivity - Connect the Mobile App to your Ventris Dual Reverb via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your Ventris preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).
- Join the Neuro Community — Visit the Web tab on the Neuro Mobile App or the Neuro Collective page on the Source Audio website and download from the ever expanding library of Ventris Reverb presets created by other Neuro Community members.
MIDI Features
MIDI Features
Using the MIDI IN jack (5-pin DIN) or a USB connection, the Ventris can be controlled by generic MIDI Continuous Controller (CC) and Program Change (PC) messages. Many of the Ventris’s parameters (even those that are not assigned to a control knob) are directly accessible via MIDI continuous controller messages.
- Preset Saving / Program Change (PC) Messages — Save up to 128 effect presets recallable with MIDI PC messages.
- MIDI Continuous Controller (CC) Messages — Control individual parameters or specific pedal functions with MIDI CC messages. Accepts multiple CC messages simultaneously (the number of possible simultaneous CC messages varies depending on the message complexity)

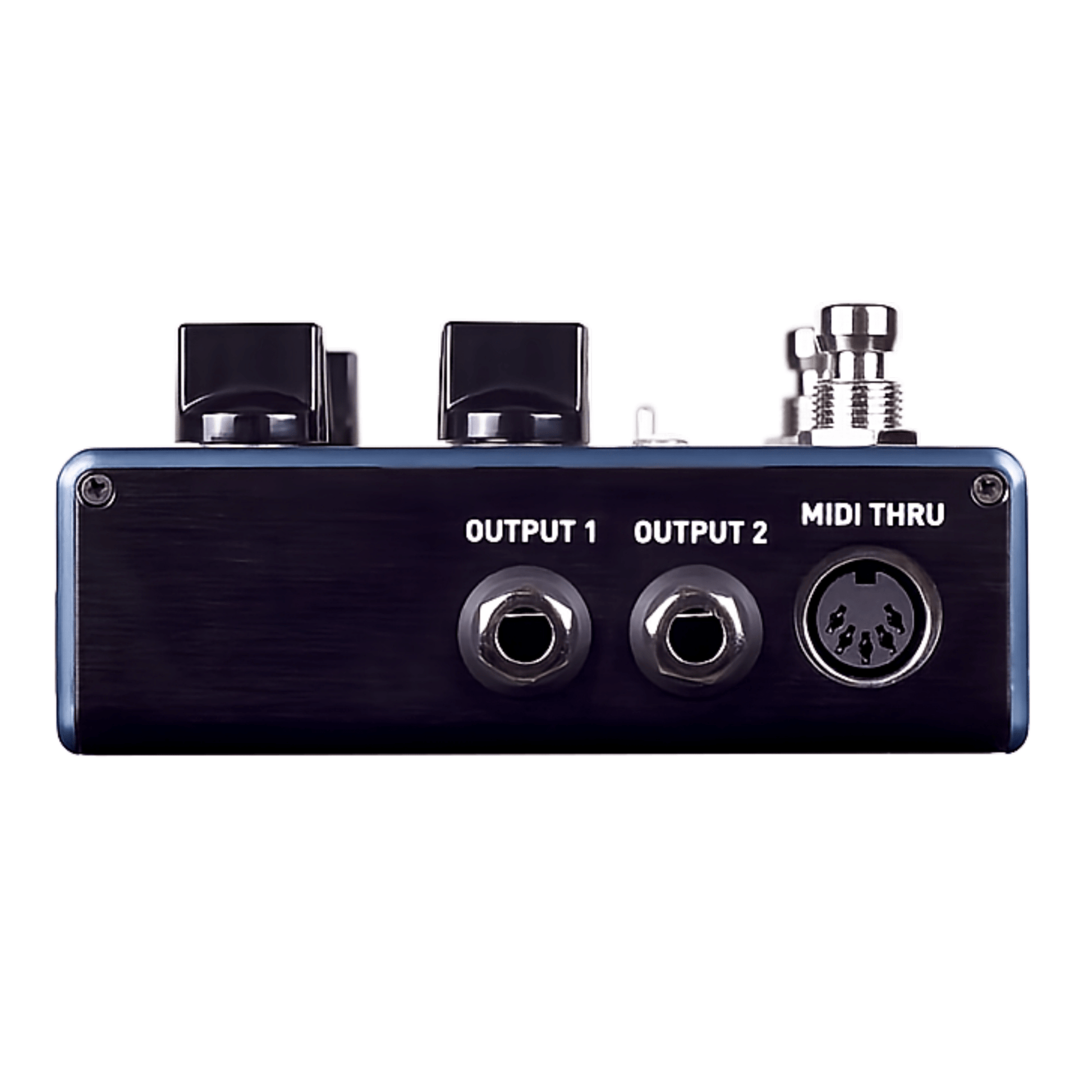

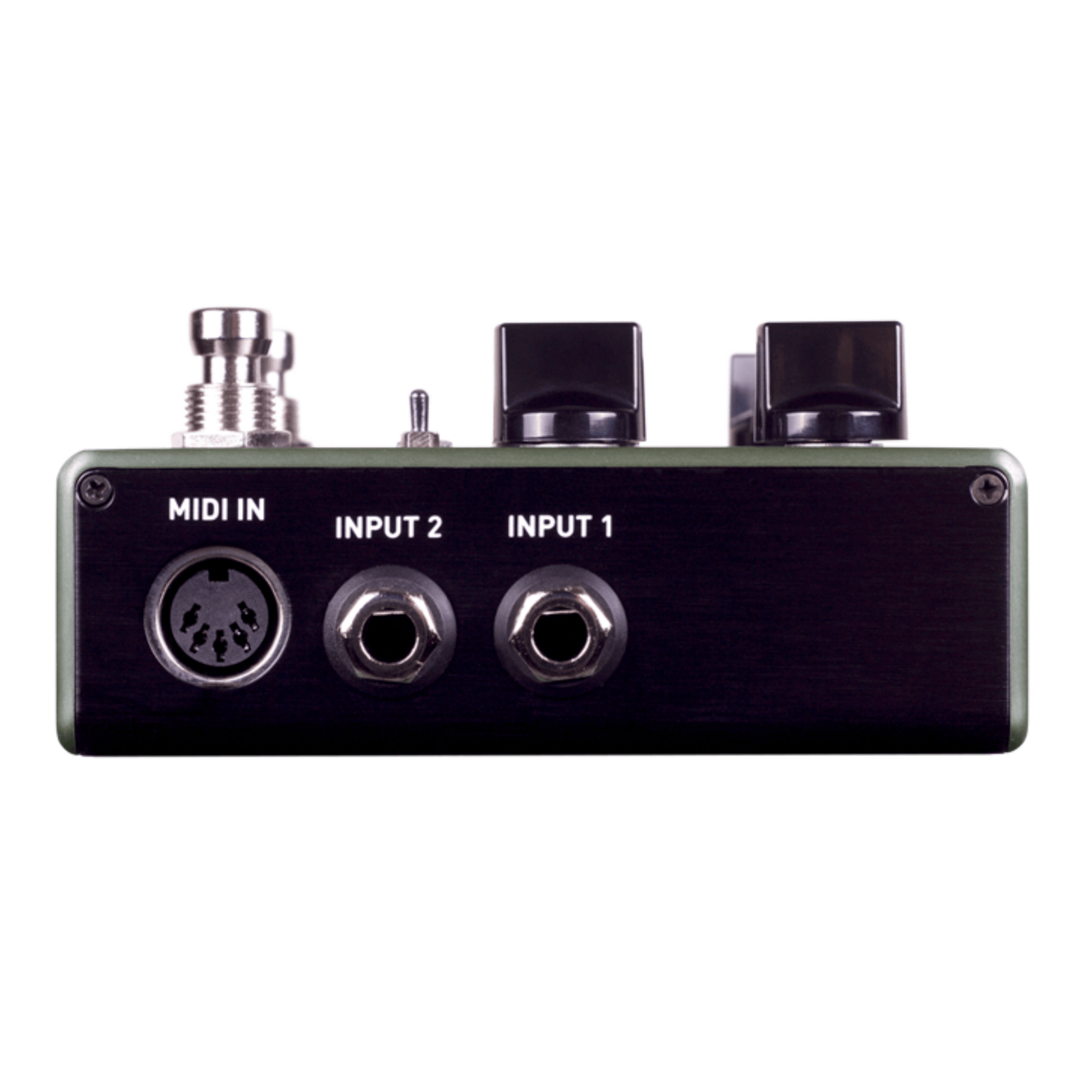

- 5-Pin MIDI DIN Ports — Send MIDI program change (PC), continuous controller (CC), and clock messages to the Ventris via its MIDI IN jack. Pass MIDI messages on to other pedals with the MIDI THRU jack.
- USB Port — Send MIDI program change, continuous controller, and clock messages to Ventris via its USB port.

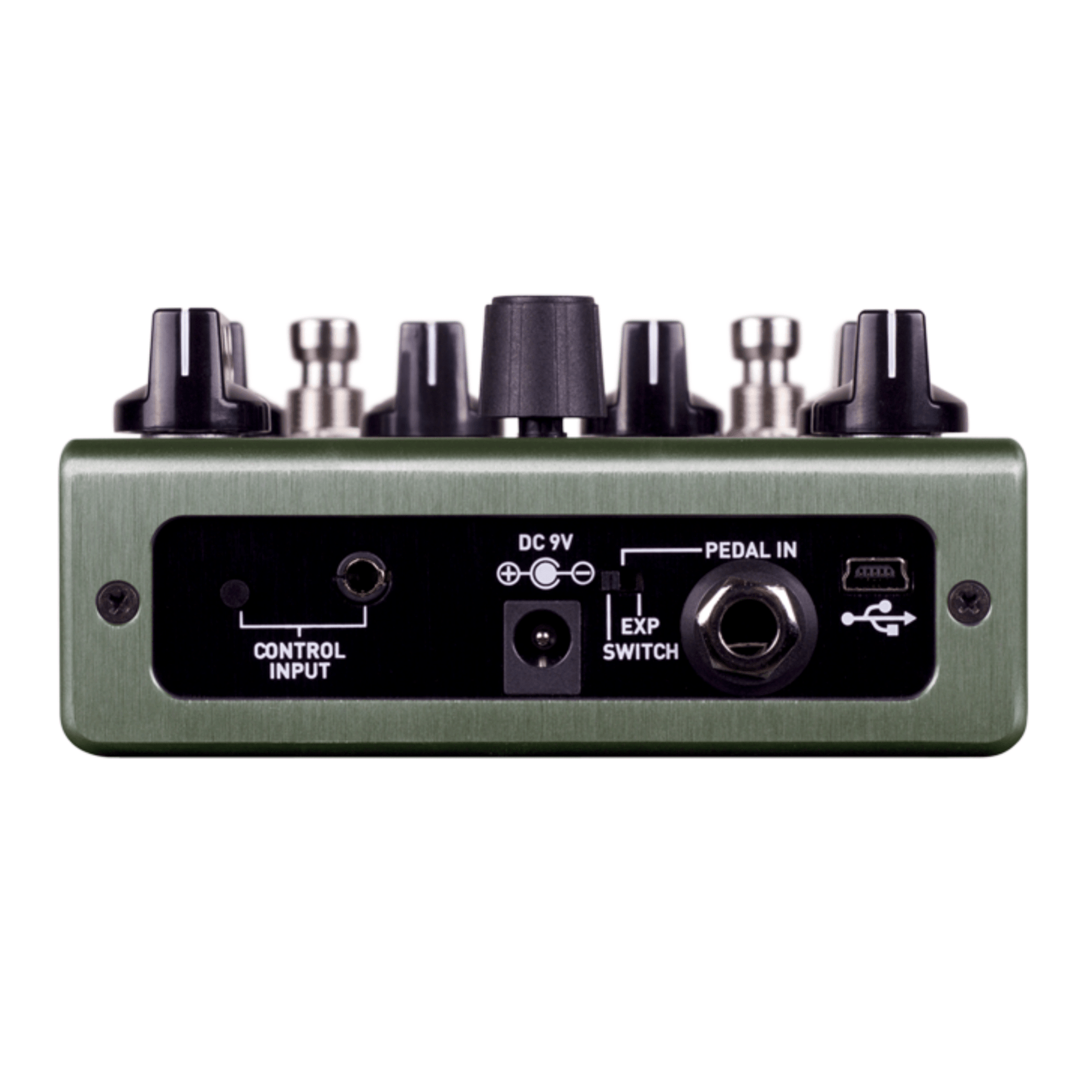

- Neuro Hub — Connect the Ventris to the Neuro Hub and send receive MIDI messages via the pedal’s 1/8” Control Input.
Specifications
Specifications
- Includes 9v DC power supply (400mA / Negative Tip)
- Includes 1/8” to 1/4” cable for Neuro Mobile App connection.
- Power Consumption — 280mA
- Brushed anodized aluminum housing.
- Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)
- Weight: 1 lb./0.45 kg.
- Maximum Input Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
- Full Scale Output Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
- Input Impedance: 1 MegaOhm (1 MΩ)
- Output Impedance: 600 Ohm (600 Ω)
- 110 dB DNR Audio Path
- 24-bit Audio Conversion
- 56-bit Digital Data Path
Dual Reverb

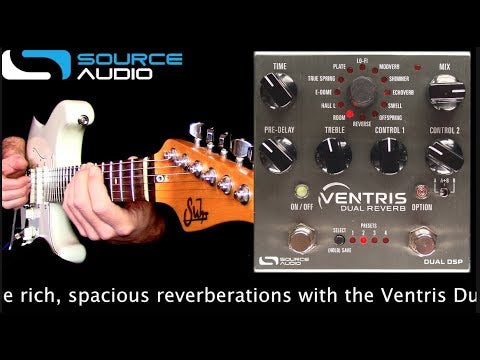

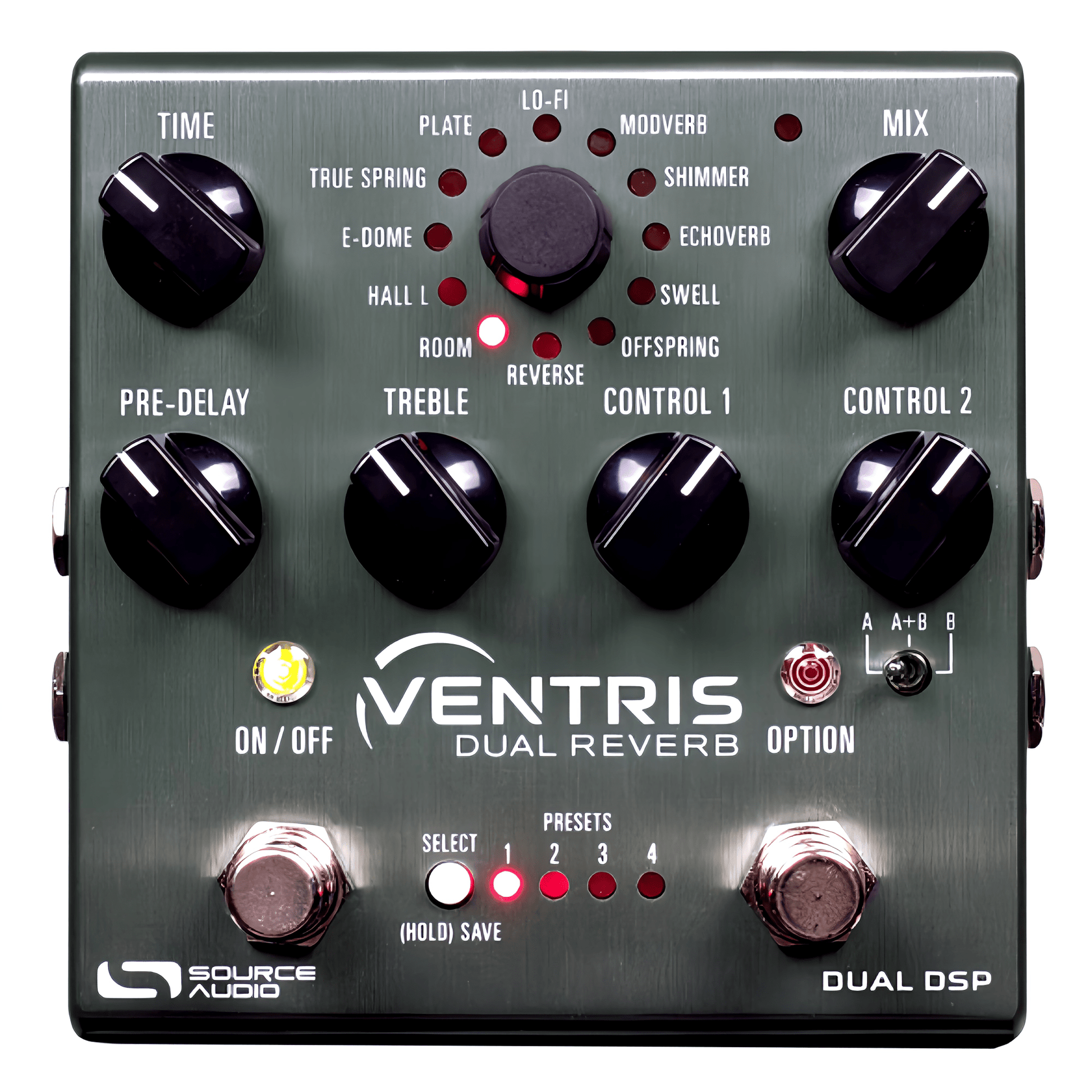

Create rich, spacious reverberations with the Ventris Dual Reverb. The Ventris features 14 meticulously crafted reverb engines built on two completely independent 56-bit signal processors, essentially housing a matching pair of high-powered, stereo reverb pedals in a single box. The pedal’s dual DSP architecture provides massive processing muscle, adjustable preset spillover time, and advanced dual reverb effects. Step into a vast realm of ambient space.
ROOM: Captures the ambient reverberations of a real acoustic space. In contrast with the E-DOME engine (which offers a massive, arena-sized reverb) the ROOM engine can summon a variety of room sizes from a warm and intimate household room to a larger theatre sized space.
HALL L: Patterned after the lush sounds of studio rack units from the 80s, the Hall L engine is distinguished by its highly diffuse tones and glorious blooming characteristic. The Source Audio engineering team invested massive research time to perfectly capture the complex sounds of these powerful effects units.
E-DOME: The cavernous E-DOME (a.k.a. “Enormo-Dome”) produces long reverb trails with a lovely smooth and lush modulation. Invoke the sound of massive arena settings with the Ventris Reverb’s largest room simulation. This one is huuuuge.
TRUE SPRING: Source Audio’s Chief Scientist, Bob Chidlaw, worked long and hard to perfectly capture the sweet idiosyncrasies of a vintage spring reverb tank. The result is an exceptionally realistic effect with the unmistakable “drip” heard in vintage spring reverb equipped amplifiers.
PLATE: A meticulously crafted simulation of vintage plate reverb units for the 50s and 60. Basically it replicates the simple, yet beautiful sound created by blasting audio into the face of a large plate of suspended sheet metal.
LO-FI: Turns the lush and grandiose effect of reverb on its head and embraces destructive elements like distortion, oversaturation, and pitch fluctuation. Turn up the ugly and add a layer of nastiness to your sound.
MODVERB: This modulating effect revisits the earthy combination of tremolo and spring reverb found in many vintage guitar amplifiers. Apply varying degrees of tremolo to your dry signal, your wet signal, or both.
SHIMMER: This pitch shifting reverb engine mixes traditional room sounds with octave-up reflections for an angelic reverb effect. Connect the Shimmer engine to the Neuro Desktop Editor and swap the octave-up for variety of additional pitch intervals. Hold down the OPTION footswitch for a cool, dive-bombing pitch effect.
ECHOVERB: For those in need of simultaneous reverb and delay effects, the Echoverb engine provides a sprawling echo effect with huge, ambient repeats. Or tone down the cavernous reverberations and use the Echoverb engine like a classic delay pedal.
SWELL: Applies a volume swell effect to your instrument’s dry signal, which is then fed into the reverb effect for amorphous clouds of sound.
OFFSPRING: Nothing else sounds like the Offspring reverb. This unique and dramatic effect falls somewhere between the sound of an angel’s harp and a retro-futuristic sci-fi soundtrack.
REVERSE: Create chilling and dramatic backwards effects with this haunting reverb engine. Set the MIX knob to 100% wet for a menacing sound surge or mix it with the dry signal for an unnerving shadow effect.
OUTBOARD SPRING: Like the True Spring engine, Outboard Spring replicates the sound of a classic spring reverb. But Outboard Spring was inspired by the sound of intensely crafted outboard spring tanks, like the Fender 6G15 or the more contemporary SurfyBear Reverb. The most notable characteristic of outboard spring units is their intense “drip,” a distinct drippy sound heard in the early reflections of the physical springs. It is a sound sought after by surf rock guitarists from coast to coast.
METAL BOX: Direct from the mind of Bob Chidlaw (Source Audio’s Chief Scientist of Sound), the Metal Box captures the reverberations of a very small space with extremely reflective walls – imagine your guitar amp in a metal cargo-shipping container. It’s wild to imagine, ever wilder to hear. Turn up the Modulation and turn down the reverb Time to create an interesting chorus effect.
