Source Audio

Ultra Wave

Ultra Wave

Regular price $249.00 USD
Regular price Sale price $249.00 USD
Sale Out of Stock

FREE 2Day Shipping

USA Free 2 Day Shipping

(Next Day in New England)

Canada 15USD Flat Rate*

Worldwide 30USD Flat Rate*(Wherever you are)

Flat Rate means no additional charge for more than one pedal.

No Hassle Returns

Just let us know within 30 days.

If there's a malfunction, shipping's on us.

Full Policy

Pedal Features

  • 37 Different Band Splitting Options: Band Splitting options including single, 2, 3, 4, 8, and 10 bands. Each band splitting option includes several sub-sets with different band splitting frequency points.
  • 44 Different Distortion Types: Choose from distortion/overdrive/fuzz types that include Tube, Diode, Foldback, Negative Flip Diode, Octave Up, and more.
  • Dual Channel Compressor/Expander: Compressor features Input Gain, Threshold, Ratio, Attack, Release, and Output Gain controls with a detailed graphic monitor. Use the dual channel capabilities to isolate compression to specific frequencies. Place the compressor/expander before or after the overdrive module.
  • Growing Library of Published Presets: For quick and easy access to a world of great tones, try sampling sounds from a vast collection of published presets created by the Source Audio team and the ever-growing Ultrawave Neuro Community.
  • Stereo Ins and Outs: Create two entirely different presets and run them in series, parallel or run each to a separate output. Stereo options also apply to the Multiband Tremolo - use the Channel 1/Channel 2 Sync options or the Phase Offset control to create stereo ping-pong, tremolo effects.
  • Detailed LFO Controls: Use the LFO module to control the Ultrawave's Tremolo, Morphing or Ring Mod features. Choose between a standard Sine Wave or use the Attack/Release controls to create highly customized LFO shapes.
  • Sound Morphing: Change from one sound to another with an expression pedal, envelope follower or LFO. ​
  • 8 Band Graphic Equalizer
  • Adjustable Noise Gate

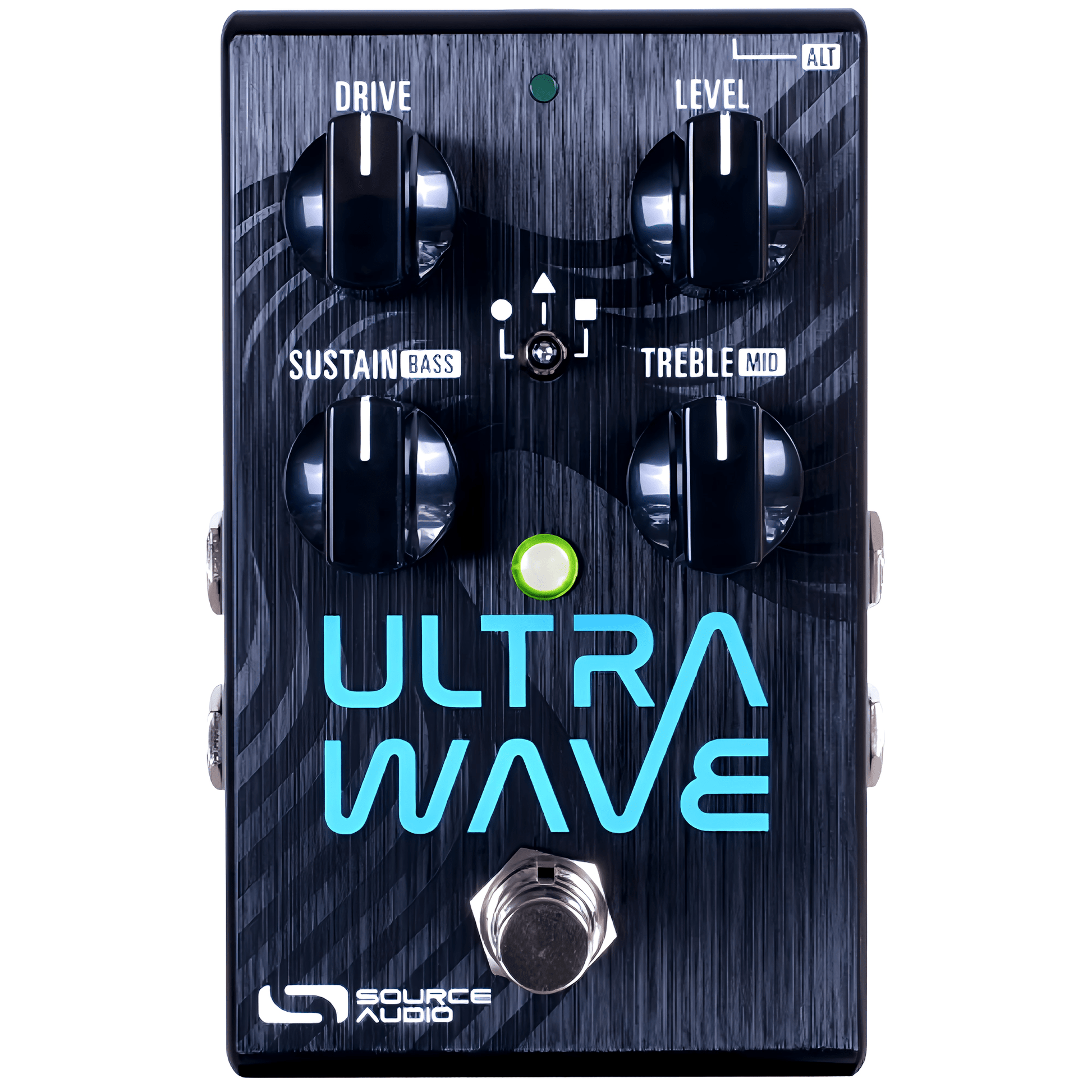

  • Assignable Knobs: Reassign all four of the Ultrawave's knobs to the parameters most useful for making quick, on-stage changes. Save a different set of knob assignments for every preset.
  • External Expression Pedal Control: Make simultaneous, on-the-fly changes of up to three parameters with an external expression pedal.
  • 6 Toggle Switch Accessible Presets: Quickly access up to 6 pedal presets with the Ultrawave's toggle switch.
  • Universal Bypass — Select either analog buffered or relay based True Bypass.
  • MIDI Capable — Connect the Ultrawave to the Source Audio Neuro Hub and access up to 128 presets with MIDI Program Change (PC) messages. Control many of the pedal’s parameters with MIDI Continuous Controller (CC) messages or assign LFO modulation speed with MIDI Clock.
  • USB Port - Class compliant USB-MIDI allows the Ultrawave to work as a plug-and-play device with recording software running on Mac and Windows. The USB port offers connectivity to the Neuro Desktop Editor providing access to deep editing possibilities and pedal firmware updates.
  • USB to Mobile App Connectivity - Connect the Mobile App to your Ultrawave via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your Ultrawave preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).
  • Compact Design – The durable, anodized aluminum housing has a small footprint and sturdy hardware. Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs).
  • Universal BypassTM – Select either analog buffered or relay based True Bypass.

Nuero Editor Features

Check out our curated package of Ultrawave Distortion Lab presets. This package contains an all-encompassing range of sounds, from traditional high-gain, medium gain, tremolo, and compressor tones to contemporary trailblazers like multiband tremolo and foldback distortion. It's an easy way to get an idea of the wide range of tones available in the Ultrawave. Use these sounds as is or as a jumping off point to create and publish your own custom presets. There are two ways you can download the package:

1.DOWNLOAD THE ULTRAWAVE BACKUP FILE. This file instantly uploads the entire UW Preset Package to your pedal. After downloading the package go to DEVICE in the top-bar navigation of the Neuro Editor and select LOAD DEVICE BACKUP then follow the prompts.

2.DOWNLOAD INDIVIDUAL ULTRAWAVE PRESETS. This is a .zip folder containing each individual preset in the UW Preset Package. After downloading and opening the .zip folder, select the IMPORT option, under the Device tab  in  the top right corner of the Neuro Desktop Editor. This option allows you to upload one preset at a time to your Ultrawave.

MIDI Features

Connect the Ultrawave to the Source Audio Neuro Hub and access up to 128 presets with MIDI Program Change (PC) messages. Control many of the pedal’s parameters with MIDI Continuous Controller (CC) messages or assign LFO modulation speed with MIDI Clock.

Specifications

  • Length: 11.4 cm (4.5 inches)
  • Width: 7.00 cm (2.75 inches)
  • Height (not including knobs and footswitches): 3.71 cm (1.46 inches)
  • Height (including knobs and footswitches): 5.1 cm (2 inches)
  • 280 grams (0.625 pounds)

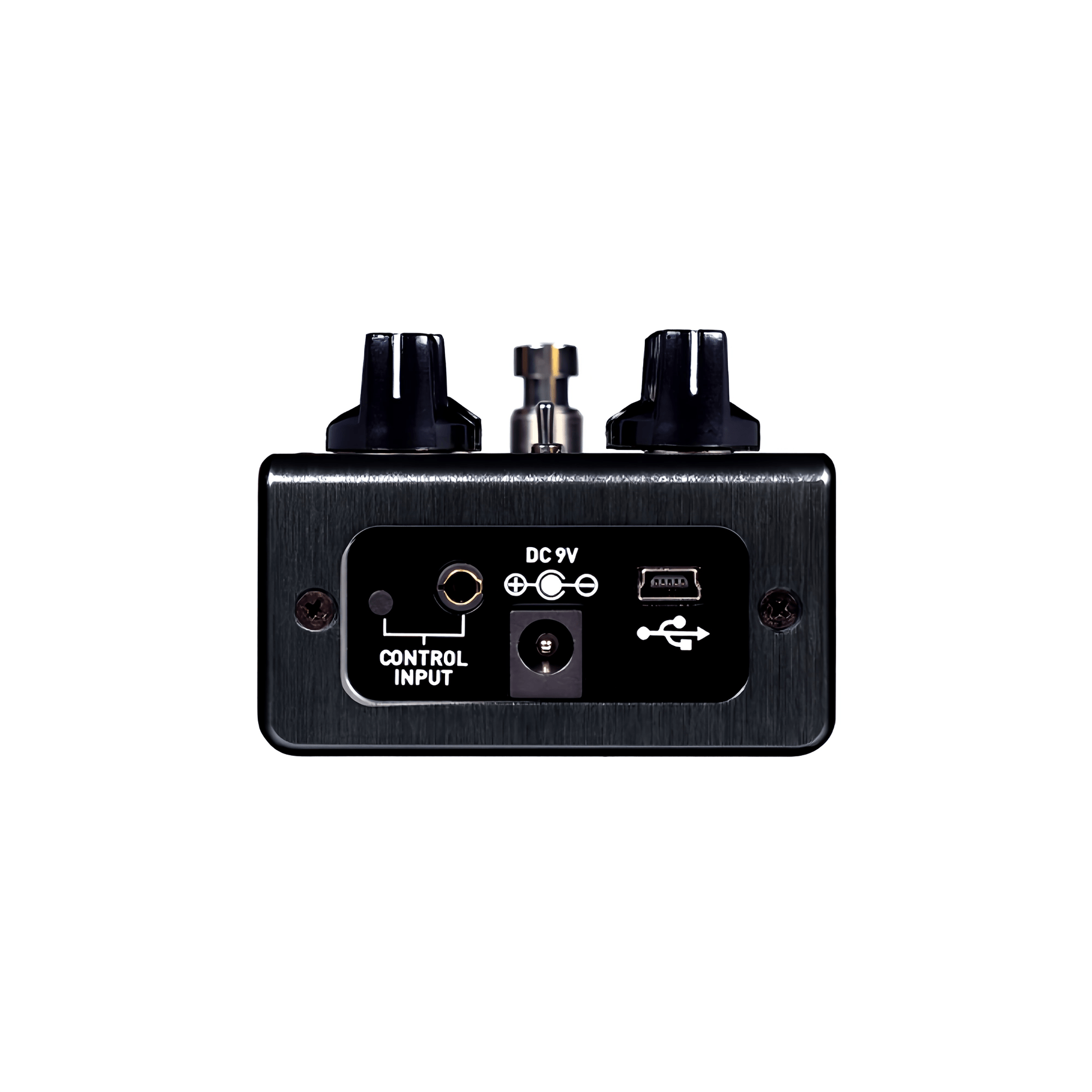

  • 150mA @ 9V DC
  • Center-negative plug, 2.1 mm inner diameter, 5.5 mm outer diameter
  • Maximum Input Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
  • Full Scale Output Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
  • Input Impedance: 1 Mega Ohm (1 MΩ)
  • Output Impedance: 600 Ohm (600 Ω)
  • 110 dB DNR Audio Path
  • 24-bit Audio Conversion
  • 56-bit Digital Data Path
  • Universal Bypass (relay-based true bypass or analog buffered bypass)

Distortion

The Ultrawave Distortion Lab embarks on a pioneering journey into the advanced potential of overdrive and tremolo, exploring a brave new universe of sounds yet unheard. At the Ultrawave’s core is a dynamic and multi-dimensional approach known as multiband processing. This process splits the frequency spectrum of a guitar, bass, or synthesizer into multiple, discrete frequency bands and equips each band with its own array of adjustable parameters. In the case of overdrive, the Ultrawave splits the incoming signal and provides separate drive and output level controls for each individual band. The result is a thick and rich distortion with loads of unique overtones and dynamic interplay. Split the signal into 1, 2, 3, 4, 8, or 10 frequency bands, and apply any of the band splitting options to an exciting collection of overdrive types, including Tube, Diode, Foldback (a method of distortion often heard in the world of synthesizers), Octave Up, Negative Flip Diode, and more. ​Plug in, turn up, and explore the wonders of multiband processing built on over a decade of refinement and experimentation.
