Source Audio

Nemesis ADT

Nemesis ADT

Regular price $329.00 USD
Regular price Sale price $329.00 USD
Sale Out of Stock

FREE 2Day Shipping

USA Free 2 Day Shipping

(Next Day in New England)

Canada 15USD Flat Rate*

Worldwide 30USD Flat Rate*(Wherever you are)

Flat Rate means no additional charge for more than one pedal.

No Hassle Returns

45 day returns for the Holidays!

If there's a malfunction, shipping's on us.

Full Policy

Pedal Features

  • 26 Delay Engines — Nemesis features 12 onboard delay engines accessible via the center selector wheel, plus an additional 14 delays downloadable via the Neuro Mobile App.
  • Analog Dry Through - The instrument’s dry signal remains completely unprocessed, maintaining a 100% pure analog signal path that runs alongside the pedal’s delay effects.
  • 128 Presets — Save up to eight presets accessible via the onboard controls or save up to 128 presets recallable with MIDI program change (PC) messages.

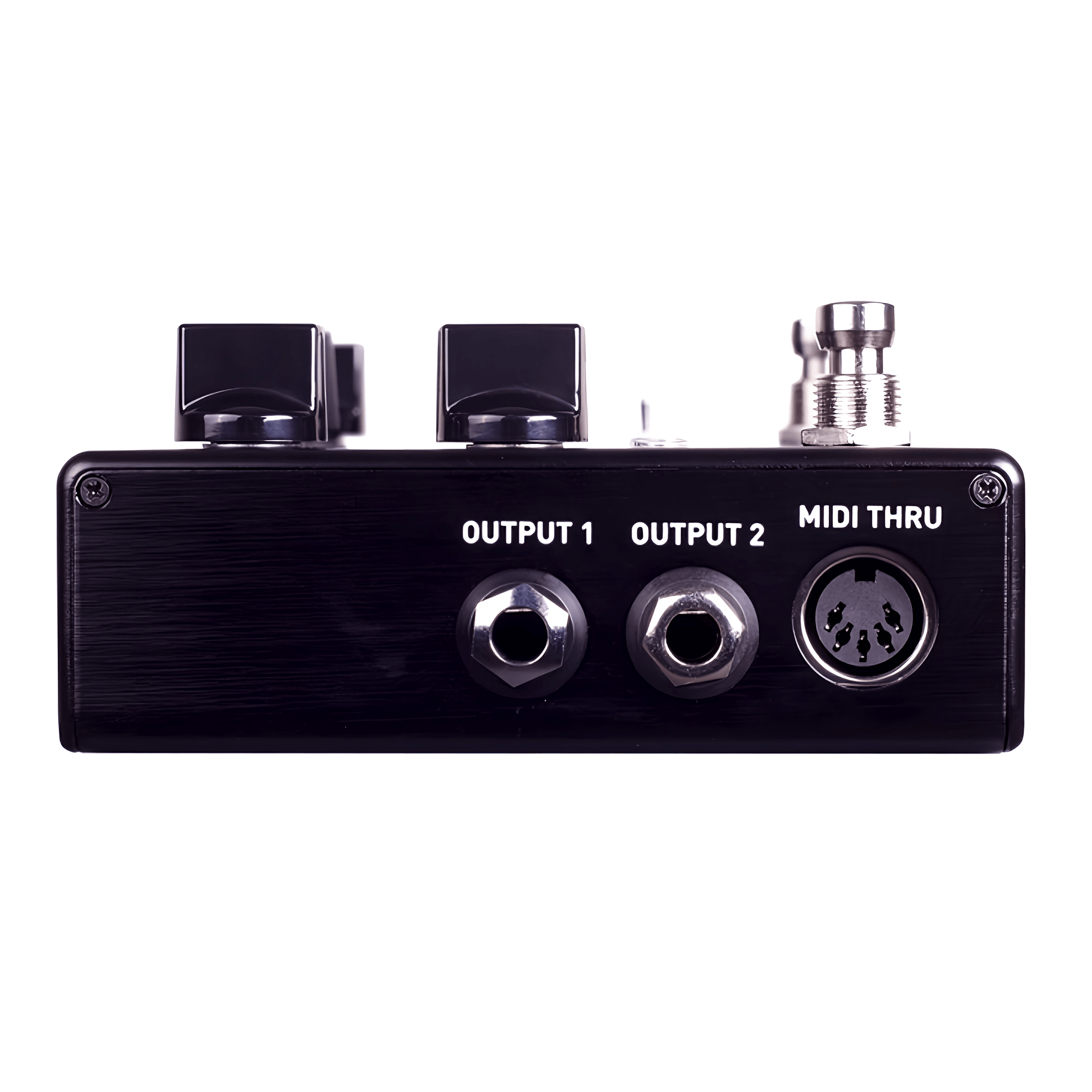

  • Stereo Input and Output Jacks — Create dramatic stereo ping-pong delays, stereo phase inversion, or set up an external effects loops, pre or post delay.
  • Tap Tempo — Tap in the delay time with the onboard tap tempo switch. Beat divisions include quarter notes, dotted eighth, and triplets.
  • Hold (a.k.a. “Freeze”) Control — Use the tap tempo switch to freeze a small portion of the delay in a continuous loop.
  • Deep Editing Functionality with the Neuro Mobile App. — Adjust additional parameters, save and share personal presets, and download bonus delay engines with the Neuro Mobile App. (Check the Neuro tab for more details).

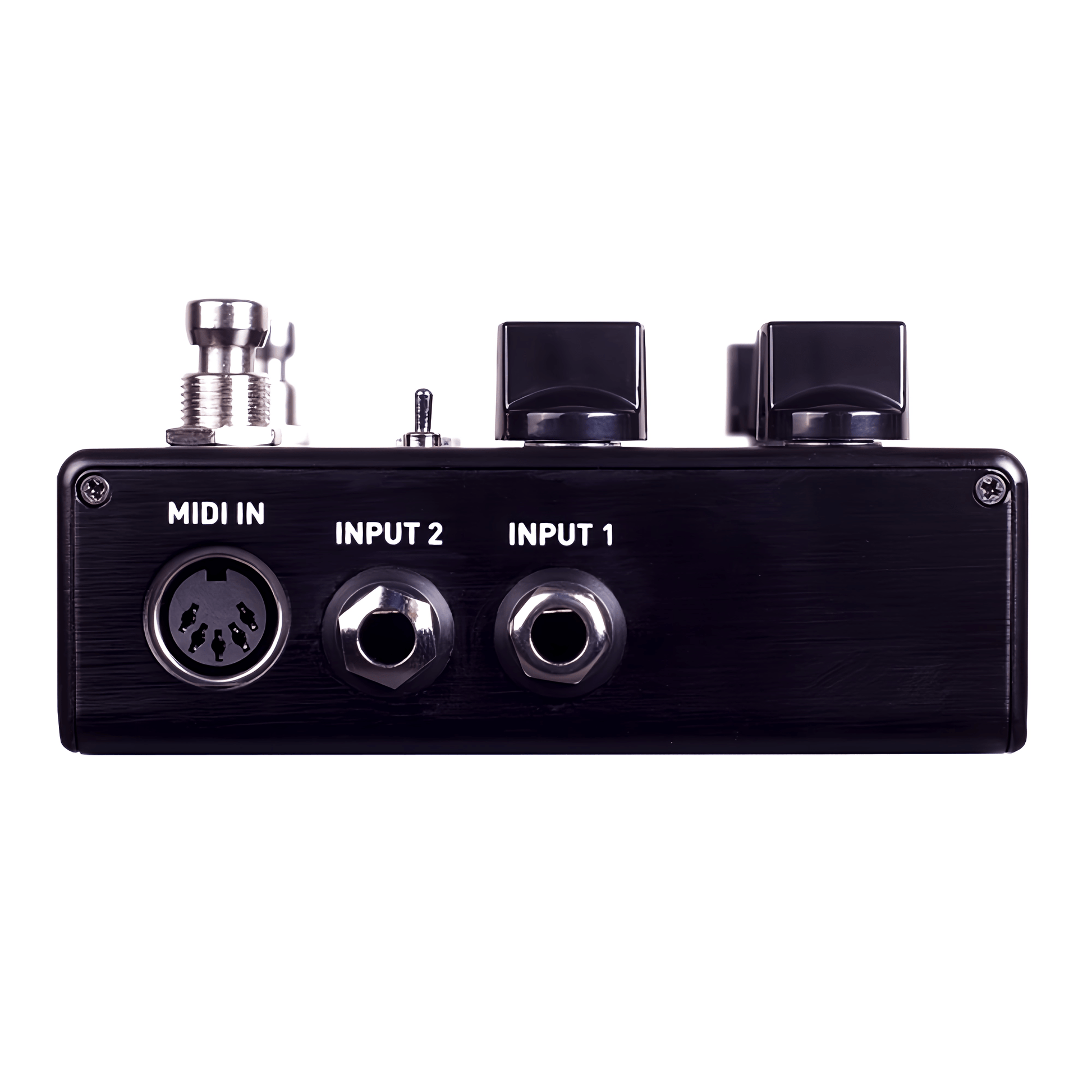

  • Complete MIDI Functionally — Send MIDI program change (PC), continuous controller (CC), or MIDI clock messages via the 5-pin MIDI DIN Input (also includes a MIDI Thru jack) or the USB port.
  • Universal Bypass — Select either analog buffered or relay based true bypass.
  • Expression Control — Assign expression control to any combination of knobs and program the depth and direction of each. Compatible with all Source Audio expression pedals, the Hot Hand 3 Universal Wireless Effects Controller, and 3rd party 1/4” TRS (tip hot) expression pedals.

External Switching Capabilities — Change delay presets with an external 1/4” TRS (tip hot) footswitch.

Nuero Editor Features

Connect the Nemesis Delay to the Neuro Mobile App (a free download for iOS or Android) and explore the power of effect downloading, customization, and sharing that comes with every Source Audio One Series pedal.

  • Free Effects Downloads — Access an additional 12 free effect engines and burn them to any position on the rotary encoder.
  • Customize Effects — Make deep editing changes with a wide range of additional parameters.
  • Save and Share Customized Presets — Once you’ve fine-tuned an effect, save it to your personal effects collection and share it with the growing community of Neuro users.
  • Download Presets — Explore Source Audio’s ever-expanding, library of free effect presets.
  • Simple Connection — The Neuro App. connects with the Nemesis Delay via the mobile device’s headphone jack and stereo Input 2 on the pedal. A Neuro App connector cable (1/8” to 1/4”) is included with the pedal.
  • USB to Mobile App Connectivity - Connect the Mobile App to your Nemesis Delay via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your Nemesis preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).

MIDI Features

  • Preset Saving / Program Change (PC) Messages — Save up to 128 effect presets recallable with MIDI PC messages.
  • MIDI Clock — Sync your delay time with external MIDI clock messages.
  • MIDI Continuous Controller (CC) Messages— Control multiple knob parameters simultaneously with MIDI CC messages. Program your CC messages to control any combination of knob parameters (as well as output level) and map an independent depth and direction path for each.
  • USB Port — Send MIDI program change, continuous controller, and clock messages to Nemesis via its USB port.
  • Multi Pedal Scene Saving with the Neuro Hub — Connect Nemesis (along with up to five One Series or Soundblox 2 pedals) to the Neuro Hub and create 128 multi pedal scenes complete with expression control, recallable via MIDI program change (PC) messages.
  • External Expression Control — Connect the Neuro Hub to any Source Audio expression pedal, Hot Hand 3 Wireless Effects Controller or third party TRS (Tip Hot) expression pedal and assign expression control to any combination of knob parameters.

Specifications

• Length: 11.63 cm (4.58 inches)

• Width: 11.17 cm (4.40 inches)

• Height (not including knobs and footswitches): 3.71 cm (1.46 inches)

 • Height (including knobs and footswitches): 5.61 cm (2.21 inches)

 • 450 grams (1 pound) Nemesis Delay ADT User’s Guide 45

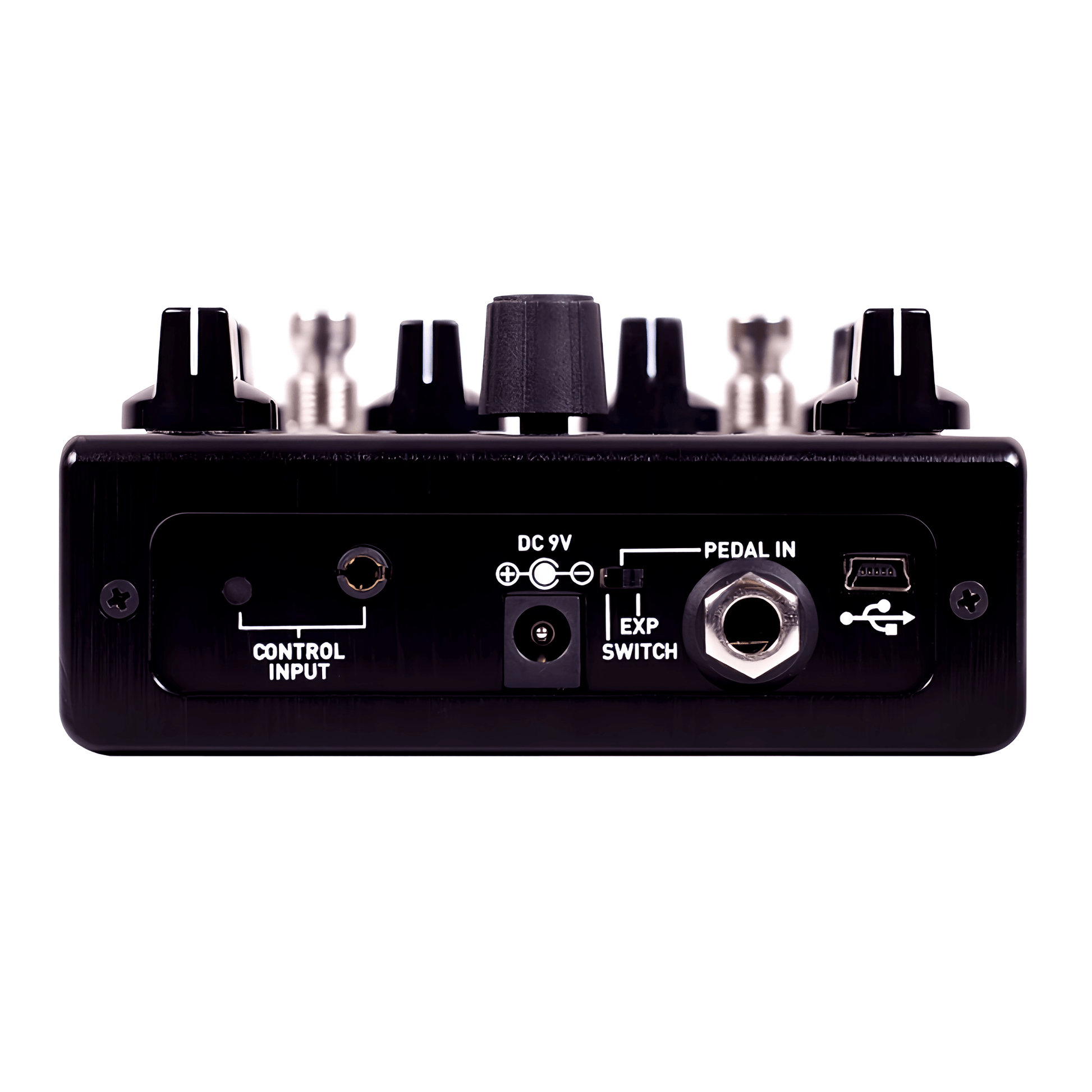

 • 200 mA @ 9V DC

 • Center negative, Barrel positive plug, 2.1 mm inner diameter, 5.5 mm outer diameter

 • Maximum Input Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p

• Full Scale Output Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p

 • Input Impedance: 1 MegaOhm (1 MΩ)

 • Output Impedance: 600 Ohm (600 Ω)

 • 110 dB DNR Audio Path • 24-bit Audio Conversion

• 56-bit Digital Data Path

 • Universal Bypass (relay-based true bypass and analog buffered bypass)

Delay

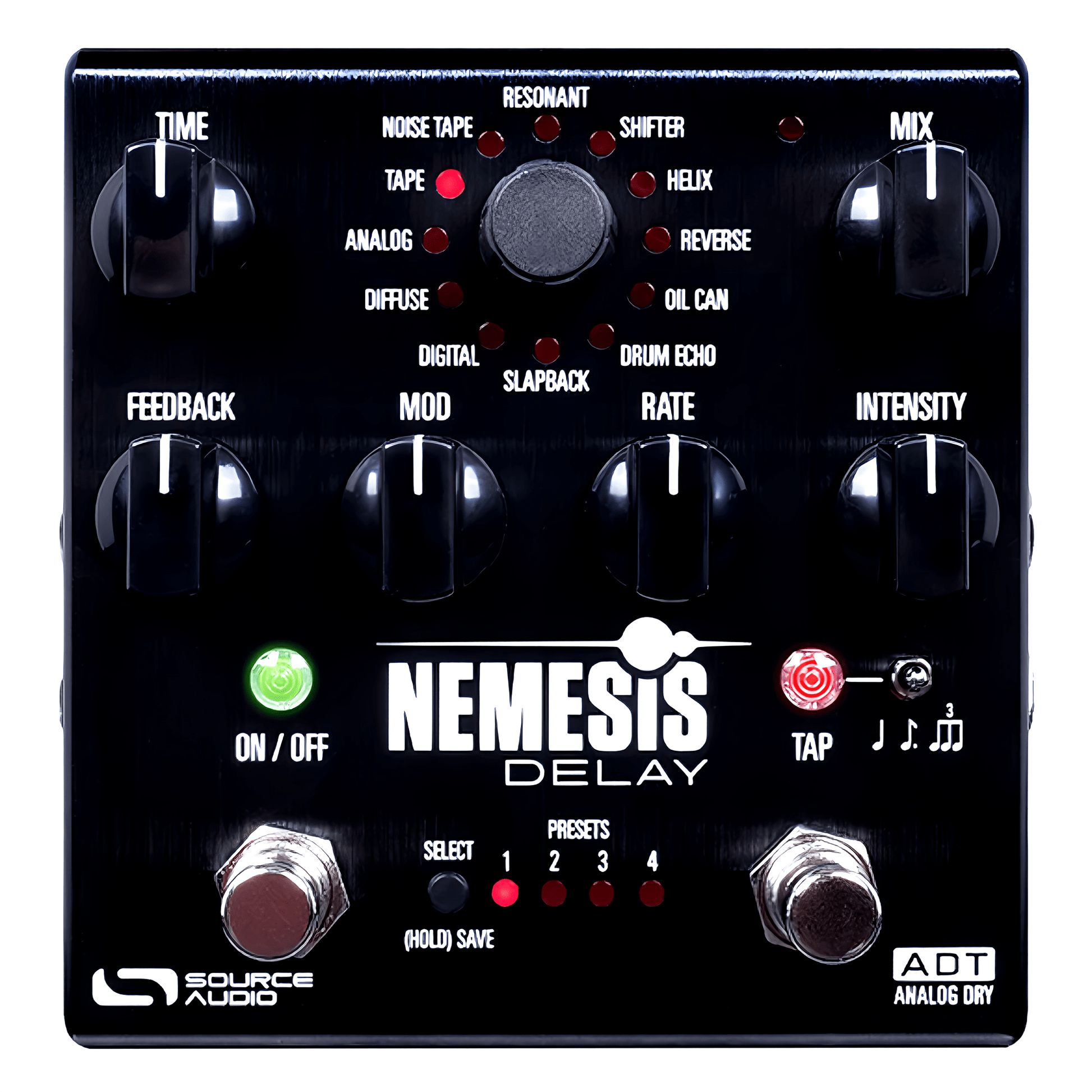

The award-winning delay pedal that catapulted Source Audio into the hearts and pedalboards of the guitar effects pedalverse is back and better than ever. The Nemesis ADT has all the tones and features that made the original Nemesis a go-to delay of guitarists and keyboard players of all genres, plus some excellent new updates including a 100% unprocessed dry signal path, 100 factory loaded presets, and an updated collection of delay effects easily accessible on the face of the pedal. Nemesis ADT is also compatible with over 1,000 Neuro user presets created for the original Nemesis delay.



The Nemesis includes twelve basic delay effect engines, with more effects available in the Neuro Mobile App. Existing effect engines can also be further edited using the Neuro App’s extended set of adjustable parameters.

  • Slapback — Synonymous with rockabilly guitar effects, Slapback delivers a short single-repeat echo based on early tape delay machines.
  • Digital — A classic clear digital delay with optional delay time modulation. The intensity knob controls filtering allowing for high pass filters (creating a thinner delay sound) or low pass filters (creating a warmer delay sound). 12 o’clock on the Intensity knob offers a 100% pure, unfiltered delay. The Nemesis features a 56-bit signal path with a 24-bit delay line for immaculately clean repeats.
  • Diffuse — A delay line with a diffusion effect that smears the attack of the repeated signal, softening it and allowing it to blend in more easily with the unprocessed dry signal. This creates an ethereal sound reminiscent of classic “oil can” delay systems.
  • Analog — The sound of classic bucket brigade analog delays. Successive delays are warm, resonant and increasingly lo-fi.
  • Tape — A detailed re-creation of classic moving-head tape delays. Tape captures all the characteristic flutter, warmth, and color that give vintage tape delay machines like the Echoplex and Space Echo their classic charm.
  • Noise Tape — A detailed re-creation of classic fixed-head tape delays. Noise Tape is grittier and darker than the Tape engine, capturing the sound of old or damaged tape.
  • Resonant — A Carbon Copy inspired delay effect, based on a particularly dramatic analog bucket brigade delay, characterized by its quickly degenerating echo that shaves off more and more high and low frequencies with each subsequent repeat.
  • Shifter — A delay with polyphonic pitch-shifting on the delayed signal. Choose from octave (either up or down), minor or major 3rds, 4ths, and 5ths.
  • Helix — This angelic delay effect combines reverse delay with an octaver to create a strange, shimmering delay that disappears into the upper frequency range.
  • Reverse — The classic reverse tape sound made popular made popular by a number of iconic psychedelic ere guitar players who shall remain nameless. The Nemesis creates several overlapping reversed delays that fade in and fade out regularly to create a pulsing tremolo effect.
  • Oil Can — Captures the sound of a 1950’s Tel-Ray Electronics Sound Chamber, an oil can delay famous for its rotating oil filled canister that created haunting and reverberant echoes with a mild chorusing effect
  • Drum Echo — Seizes the magic of a Binson Echorec rotating drum delay unit, famously used on several Pink Floyd tracks. The Echorec is known for its multiple playback heads and rhythmic delay patterns.
