Pedal Features
Pedal Features
Input impedance @ 1 Khz: 500kΩ
Output impedance @ 1 Khz: 1kΩ

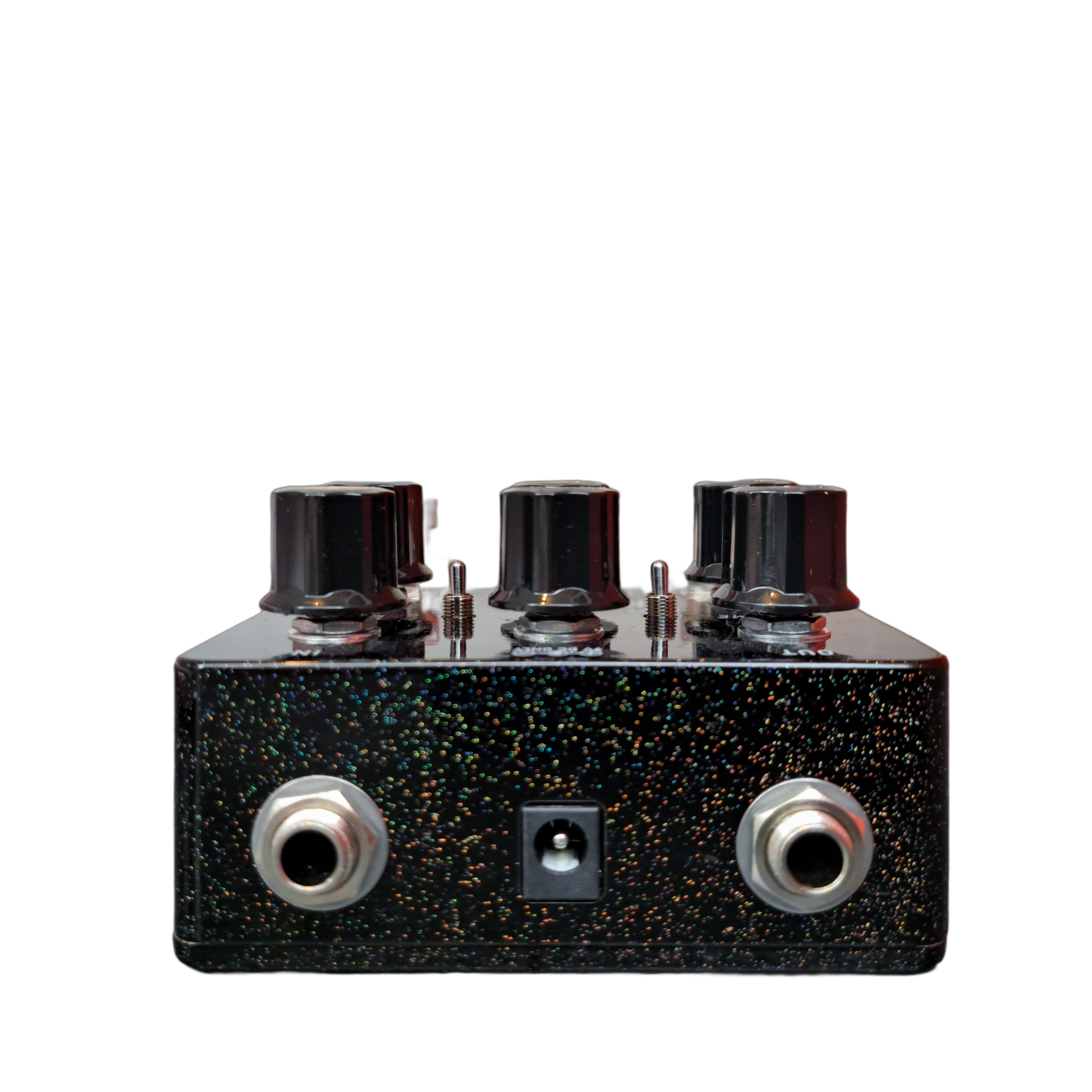

Power: 9V DC, 2.1 mm center negative barrel. The current draw is 75 mA.
We recommend a regulated, isolated power supply rated for 100 mA minimum. The PSU input is protected against reverse polarity and over-voltage up to 24V. Our pedals do not accept batteries.
Couldn't load pickup availability
The Electronic Audio Experiments Longsword is yet another contender in the endless void of op-amp based drive pedals, but it is one that takes the topology in a novel direction. Cascaded gain stages allow for the full range from clean boost to massive distortion, all without sacrificing tonal flexibility. The equalizer combines bass and treble shelving filters with an active, frequency-selectable midrange boost/cut control. This lets the user sculpt a diverse array of tones and carve out a niche in even the most dense of mixes. The Longsword has a broad frequency response which makes it work equally well with guitar, baritone, and bass.

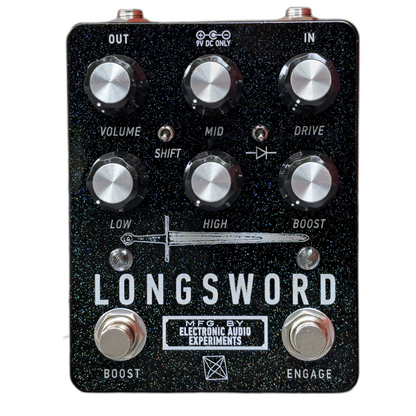

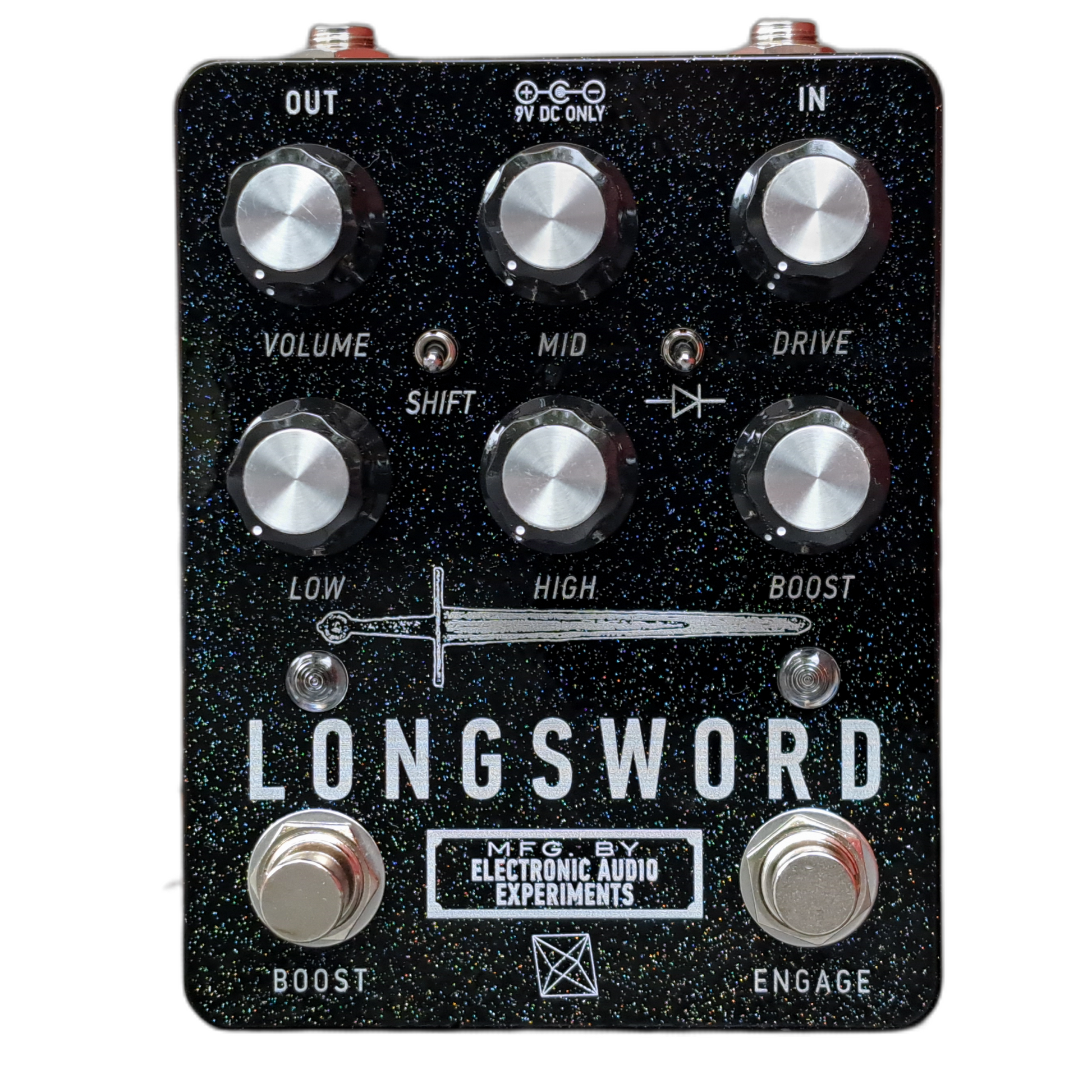

Level: output volume
Drive: go from light grit to heavy overdrive
Low/High: James/Baxandall tone stack (shelving filters)
Mid: active midrange boost/cut
Shift: selects frequency controlled by Mid pot
Diode: selects between clipping diodes, to alter dynamics and headroom
Up: MOSFET clipping, medium compression
Center: no diodes, minimal compression
Down: Silicon diode clipping, maximum compression
Boost (Footswitch): engages a front end mid boost
Boost (Knob): adds up to 20dB of gain when the Boost is engaged
Bypass: Relay switching with true bypass
