Universal Audio

Knuckles '92

Name: Knuckles '92
Brand: Universal Audio
SKU: UA-KNUCKLES-U
Price: 399.00 USD
Availability: InStock

$399.00 USD

Sale Out of Stock

FREE 2Day Shipping

USA Free 2 Day Shipping

(Next Day in New England)

Canada NOW FREE

Worldwide 30USD Flat Rate*(Wherever you are)

Flat Rate means no additional charge for more than one pedal.

No Hassle Returns

45 day returns for the Holidays!

If there's a malfunction, shipping's on us.

Full Policy

Pedal Features

Plug into the famous 1992 Rev F Dual Rec high gain amplifier tone that fueled punk, alt rock, and metal from the ‘90s onward
Powerful UAFX dual-engine delivers the most authentic emulation of the amp ever placed in a stompbox
Dial in genre-defining sound with built-in TS-style overdrive, preamp boost, noise gate, channel switching, output tubes and selectable solid-state or tube rectification
Experience groundbreaking physical room modeling derived from UA’s award-winning OX Amp Top Box
Experiment with six classic mic/speaker pairings as used on classic ‘90s alt rock and metal records
Play presets designed by UA’s tone gurus, dual-rec specialists and artists; or customize and save your own tones in the UAFX mobile app
Power requirements: (power supply sold separately) Isolated 9VDC, center-negative, 400mA minimum

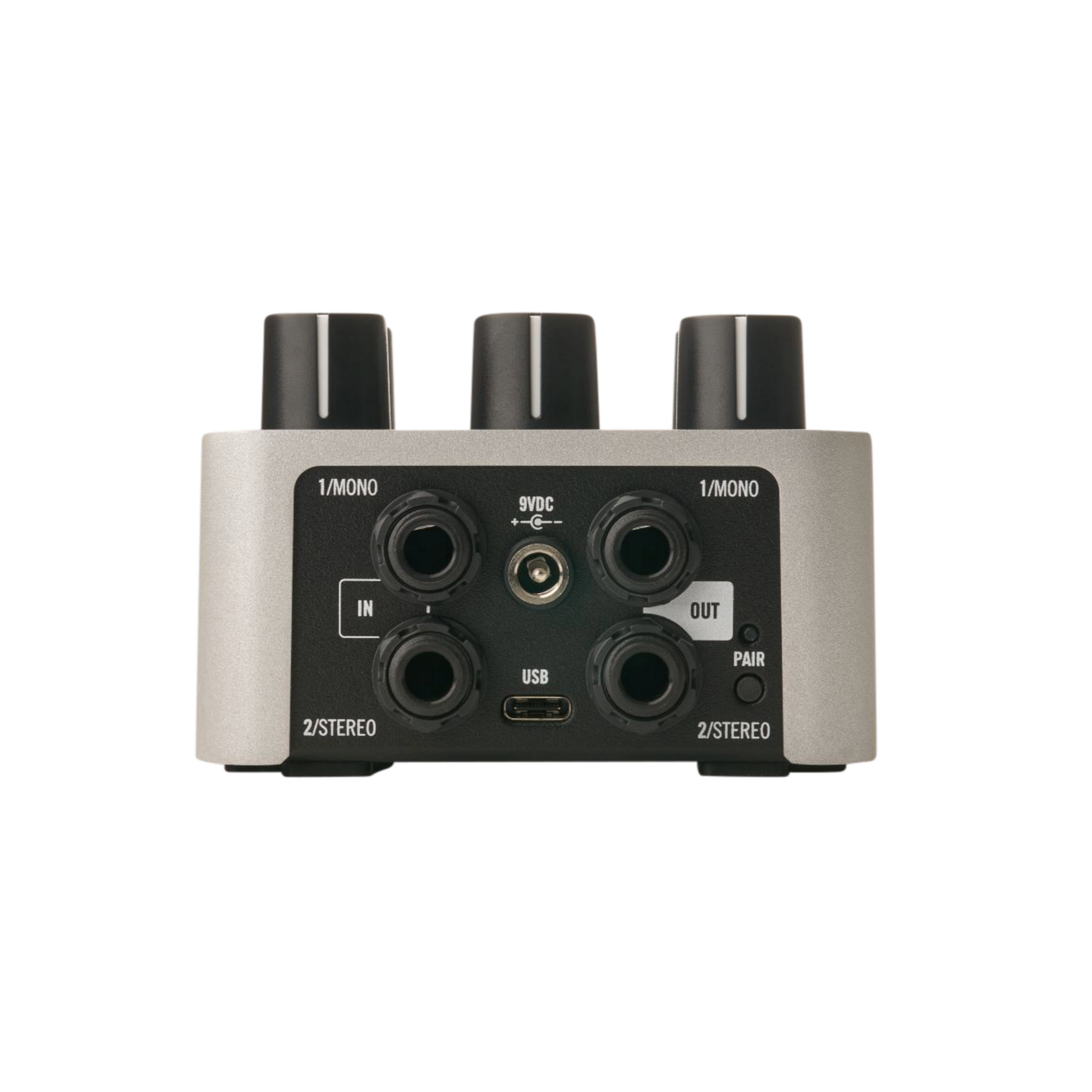

Inputs2 x ¼" unbalanced TS (input 2 for stereo connections)
Outputs2 x ¼" unbalanced TS (output 2 for stereo connections
Input impedance: 500 Kilohms (Mono In) 1 Megohms (Stereo In)
Output impedance: 500 Ohms
Maximum input level: 12.2 dBu
Maximum output level: 12.1 dBu
Frequency response: 20 Hz to 20 kHz, ±3 dB
USB Type-C:L For registration and firmware updates via computer
Wireless technology: Bluetooth v5
Transmitted Frequency Range: 2.402 – 2.480 GHz
Maximum Output Power: +4.35 dBm

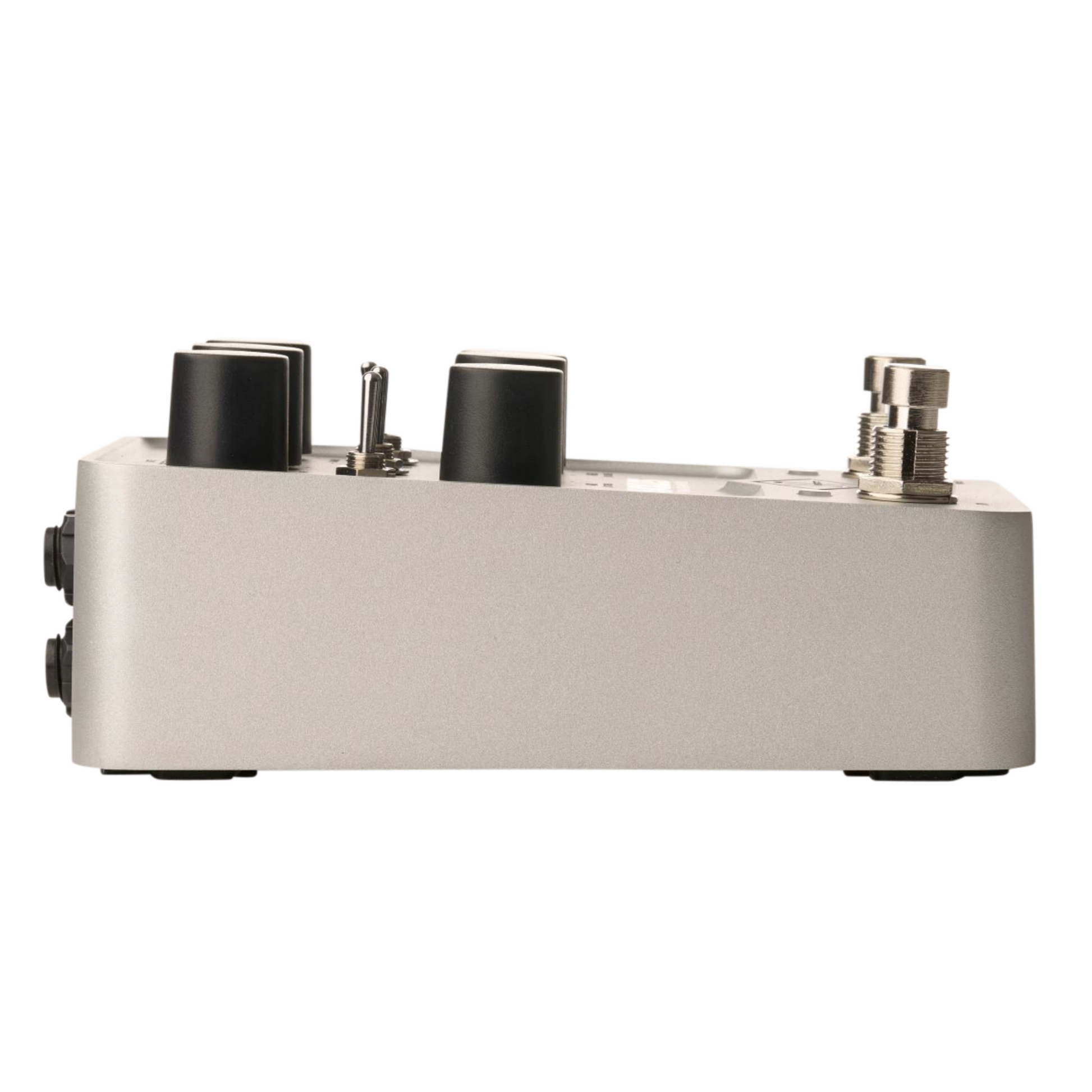

Dimensions: (with knobs and protrusions)
Height: 2.56 inches, 6.5 cm
Width: 3.62 inches, 9.2 cm
Depth: 5.55 inches, 14.1 cm
Weight (unboxed): 1.34 lbs. / 0.605 kg

Mesa Boogie Dual Rec Amplifier

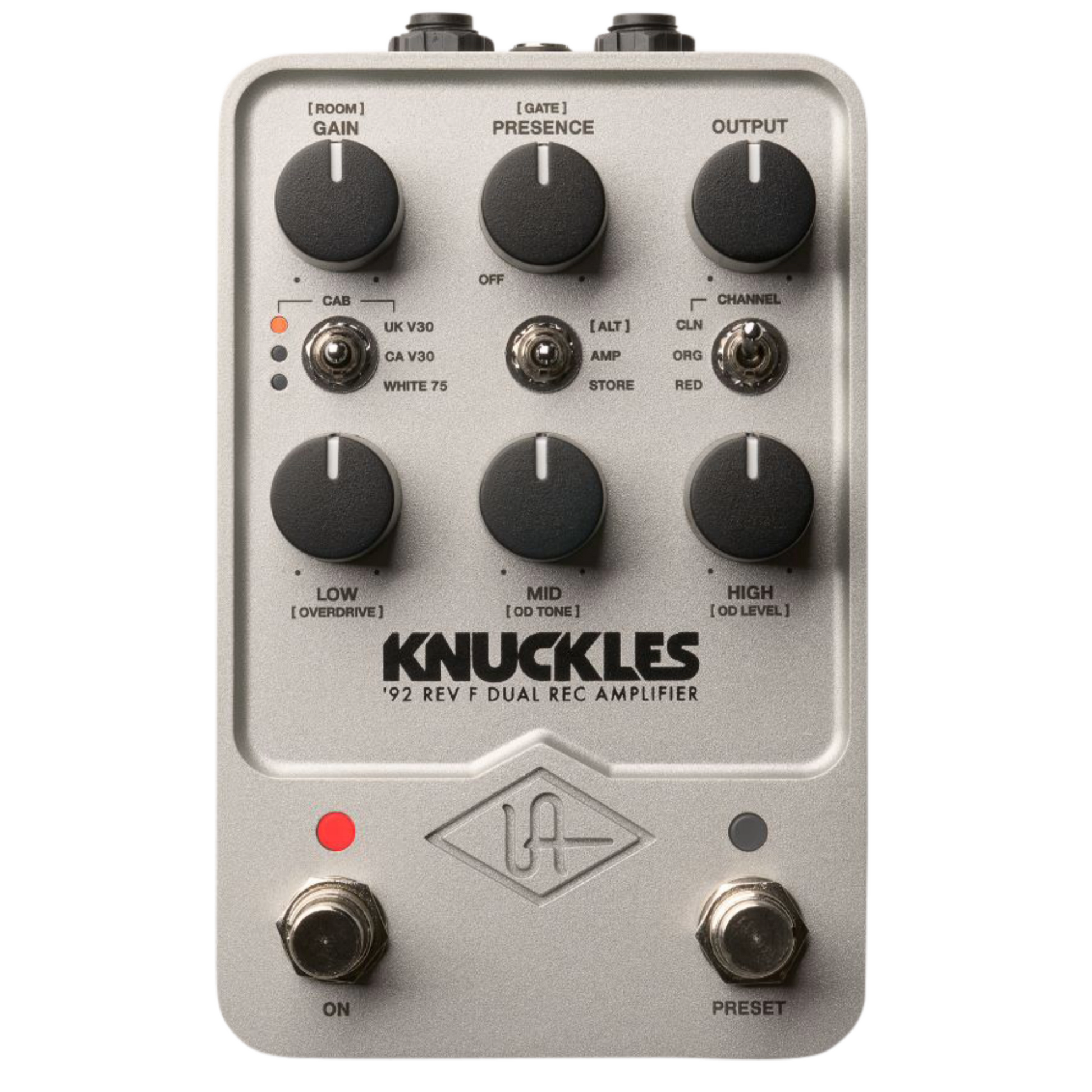

Stereo amp and cab emulation pedal with six famous mic/speaker pairs, built-in boosts, live and preset modes, and customization with the UAFX mobile app.

Knuckles delivers the searing high-gain tone that powered legendary punk, alt rock, and metal bands from Foo Fighters and Incubus to Nevermore, Dream Theater, and more. Giving you six classic mic and speaker pairings, built in TS-style OD/boost, and noise gate, Knuckles puts the authentic genre-defining sound of one of the world's most ferocious high-gain amps under your boots. Whether you seek the gritty power chords of punk and alternative anthems by the likes of Dave Grohl and Incubus or the complex aggression of Nevermore and Dream Theater.

Knuckles ‘92 puts one of the most versatile multi-channel amps ever made right on your pedalboard. Use the famed green, orange, and red channels to explore perfect cleans to bone-crushing crunch and smoldering lead sounds. Then experiment with EL-34 or 6L6 power tubes and switch between solid-state or tube rectifiers for ultimate control and feel under your fingertips. Knuckles '92 is equipped with a classic TS-style overdrive — a tried and true component for tight, articulate playing — and an integrated preamp boost that’s famous for sculpted modern metal tones. And with its built-in noise gate giving clear sound even at extreme gain settings, you’ll melt faces the minute you power it up. Experiment with six mic and speaker pairings used on countless iconic records. From alt rock anthems to de-tuned nu-metal brutality, Knuckles ‘92 captures the full essence of playing through one of the greatest aggressive amps ever made

Explore a Range of Rectifier Tones

Use the famed green, orange, and red channels to explore perfect cleans to bone-crushing crunch and smoldering lead sounds. Then experiment with EL-34 or 6L6 power tubes and switch between solid-state or tube rectifiers for ultimate control and feel under your fingertips.

Play Through Perfect Preamp Boosts

Knuckles '92 is equipped with a classic TS-style overdrive — a tried and true component for tight, articulate playing — and an integrated preamp boost that’s famous for sculpted modern metal tones. And its built-in noise gate gives you clear sound even at face-melting gain levels.

Get 6 Epic Mic & Speaker Pairings

UK V30: This vintage style closed-back cabinet with four Celestion V30 12-inch speakers is one of the industry standards for modern rock and metal guitar. Miked with a dynamic 57.
CA V30: This modern and deep closed-back American-made cabinet with four Celestion V30 12-inch speakers was designed for heavy, distorted, and scooped amp tones. Miked with a dynamic 57.
WHITE 75: This custom ported cabinet features four 12-inch Celestion "creamback" 75-watt modern British speakers. Miked with a dynamic 57 and a ribbon 121.
UK V30: Classic '80s Electro-Voice EVM12L speaker with a massive magnet in a 1x12 cabinet, miked with a 414 condenser mic.
CA V30: This custom ported cabinet features four 12-inch vintage Celestion 80-watt Classic Lead speakers. Miked with a dynamic 57 and a ribbon 121.
WHITE 75: 1968 basketweave 4x12 cabinet with vinyl removed, with two Celestion Greenback speakers and two JBL 120F speakers. Both speaker types are miked separately with dynamic 57s, and pre-mixed.
