Eventide
H90 Harmonizer
H90 Harmonizer
FREE 2Day Shipping
FREE 2Day Shipping
USA Free 2 Day Shipping
(Next Day in New England)
Canada NOW FREE
Worldwide 30USD Flat Rate*(Wherever you are)
Flat Rate means no additional charge for more than one pedal.
No Hassle Returns
No Hassle Returns
Pedal Features
Pedal Features
- Preloaded with 66 effect algorithms:
- New low-latency Polyphonic Pitch Shifting with SIFT (Spectral Instantaneous Frequency Tracking) technology
- ARM-based architecture lays the foundation for new and exciting creative effects
- Use two algorithms at once per Program
- True spillover between Programs
- Route effects in series or parallel
- Instrument or line-level operation
- Two mono inserts or one stereo insert can be positioned anywhere in the signal chain
- Dual-mode for processing two independent stereo signals at once
- Five push-turn knobs for more tactile control
- Two expression inputs for pedals, up to 3-button auxiliary switches, and CV signals
- Use H90 Control software to edit Programs, create lists, and update firmware on a Mac or PC
- Built-in tuner

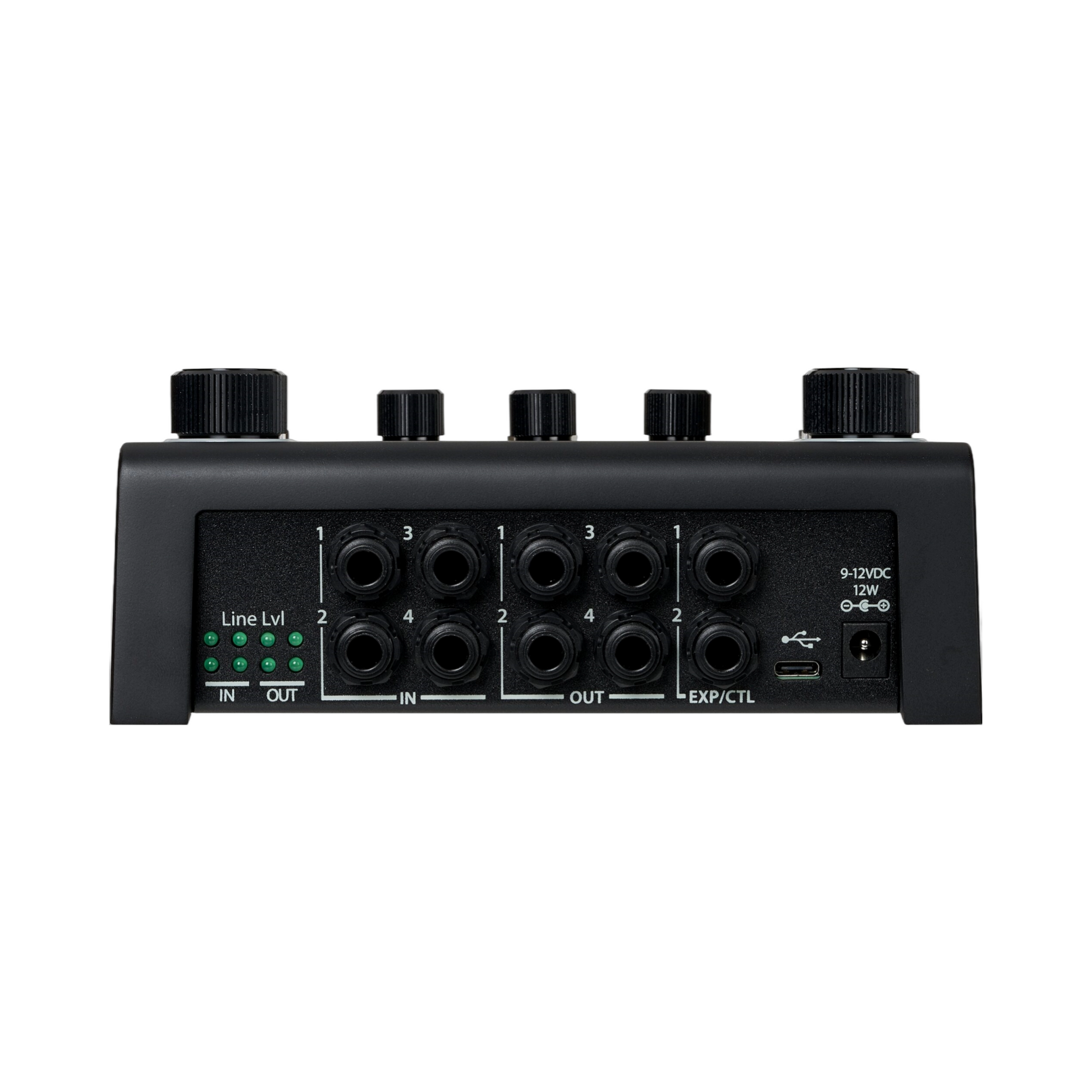

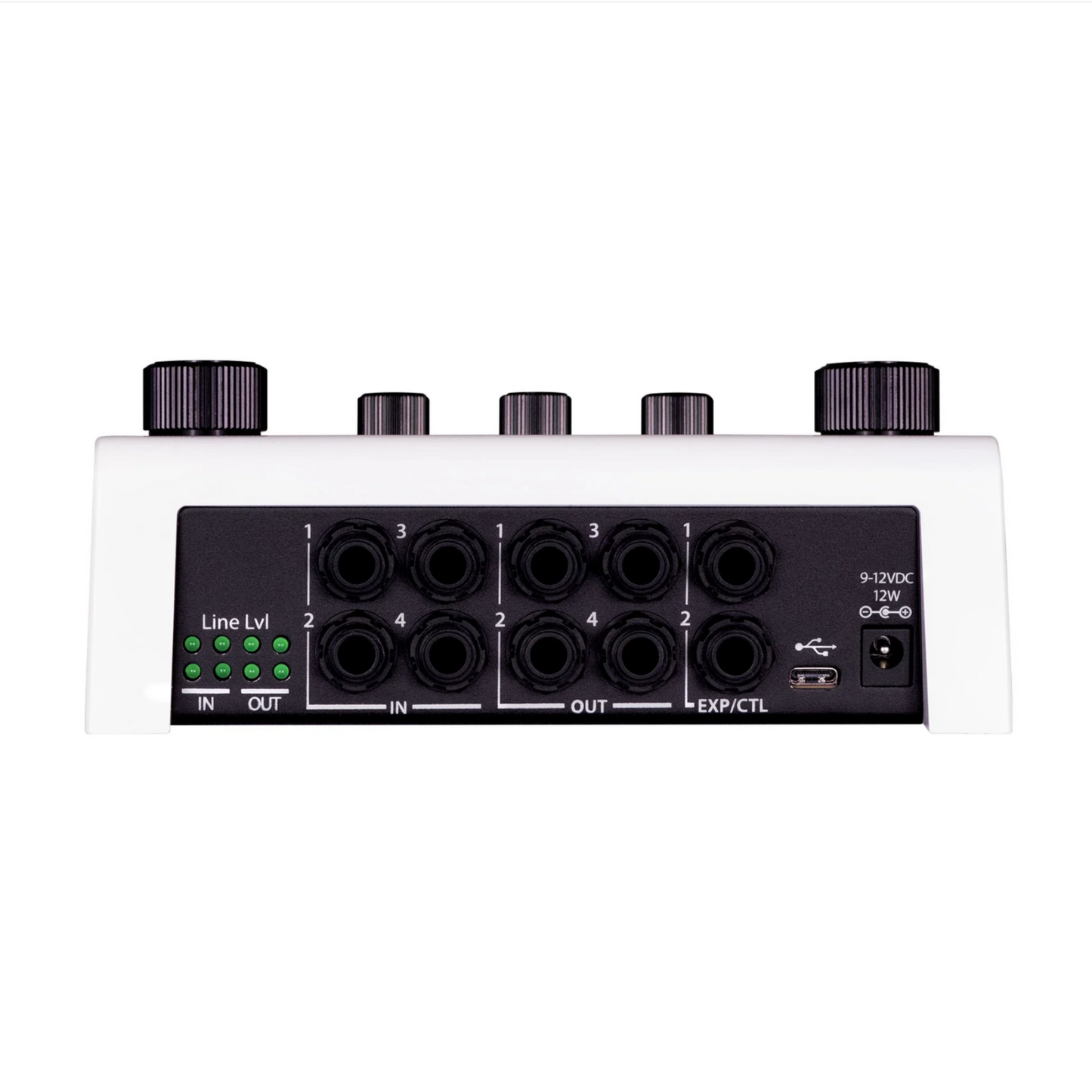

Inputs 1 – 4: ¼ inch TS mono jack
Outputs 1-4: ¼ inch TS mono jack
Exp/Ctl 1-2: ¼ inch TRS / Expression pedal or Aux Switch
USB Type-C: Use USB 2.0 for control, updates, and MIDI
MIDI In: Five-pin DIN (Female)
MIDI Out/Thru: Five-pin DIN (Female)
DC Input Jack: 5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level): >600k ohms
Input Impedance (Line Level): >80k ohms
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Maximum Input Level (Inst): +4dBu
Maximum Input Level (Line): +14dBu
Power: 12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack
Dimensions (Product): English: 6.5″ (W) x 5.25″ (D) x 2.5″ (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm
Dimensions (Package): English: 10.5″ (W) x 7″ (D) x 3″ (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product): 1.85 lbs / 0.84 kg
Weight (Package): 3 lbs / 1.36 kg
Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide
Couldn't load pickup availability
The H90 Harmonizer features modern ARM-based architecture derived from the world’s most powerful effects processor, Eventide’s flagship H9000 Harmonizer.

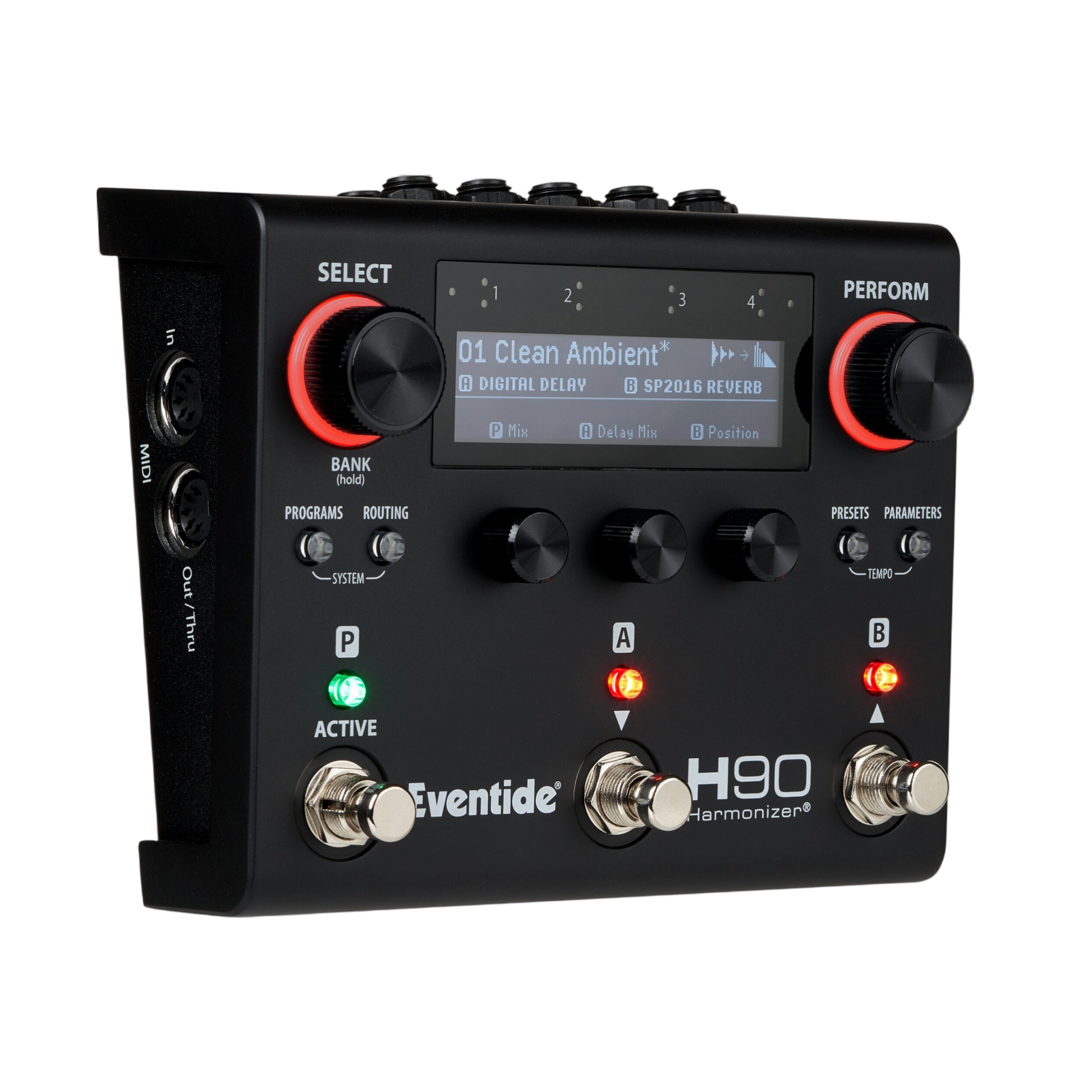

The H90 Harmonizer comes with hundreds of factory Programs that can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of three Programs, perfect for cueing up the range of sounds for a song. Organizing your favorite sounds has never been easier, simply load a new Playlist and you’re ready for the next gig!
In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset and insert bypass with momentary states, and performance parameters like reverb freeze, pitch flex, or delay repeat. Furthermore, you can make multiple instantaneous parameter changes with three HotSwitches.
The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that’s not enough, take advantage of the pedal’s extensive MIDI control.
Two mono inserts allow you to incorporate outboard effects in any configuration or combine them for one stereo insert. Optimize your signal flow with instrument or line level operation and full gain controls to incorporate the H90 into your rig or make it the centerpiece.
Dual Mode lets you do things like connect using the four-cable method or process two independent stereo instruments at once! Let the H90 Harmonizer take you beyond the effects horizon.
