Signal Path: 100% Analog
Bypass Type: Buffered bypass
Footswitch: Soft switching
Power: 9V DC Centre negative
Current: 350 mA
Weight: 1.2kg
Input Impedence: TS - 1 ΜΩ,
XLR - 10 ΚΩ
Output Impedence: TS - 600 Ω,
XLR - 600 Ω
Couldn't load pickup availability

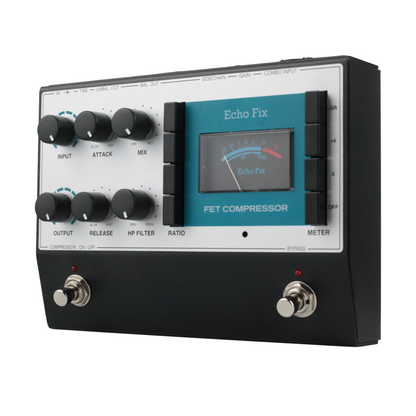

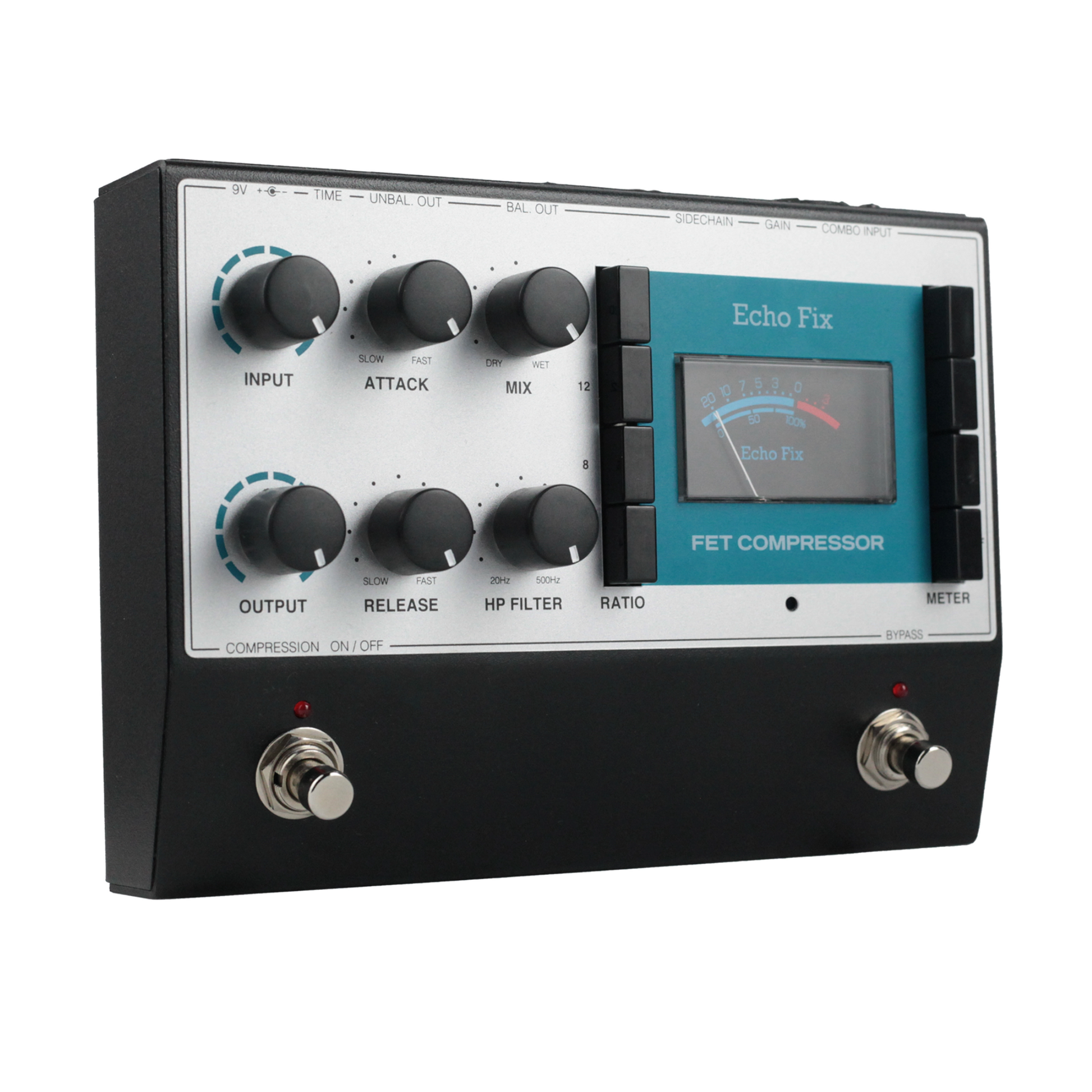

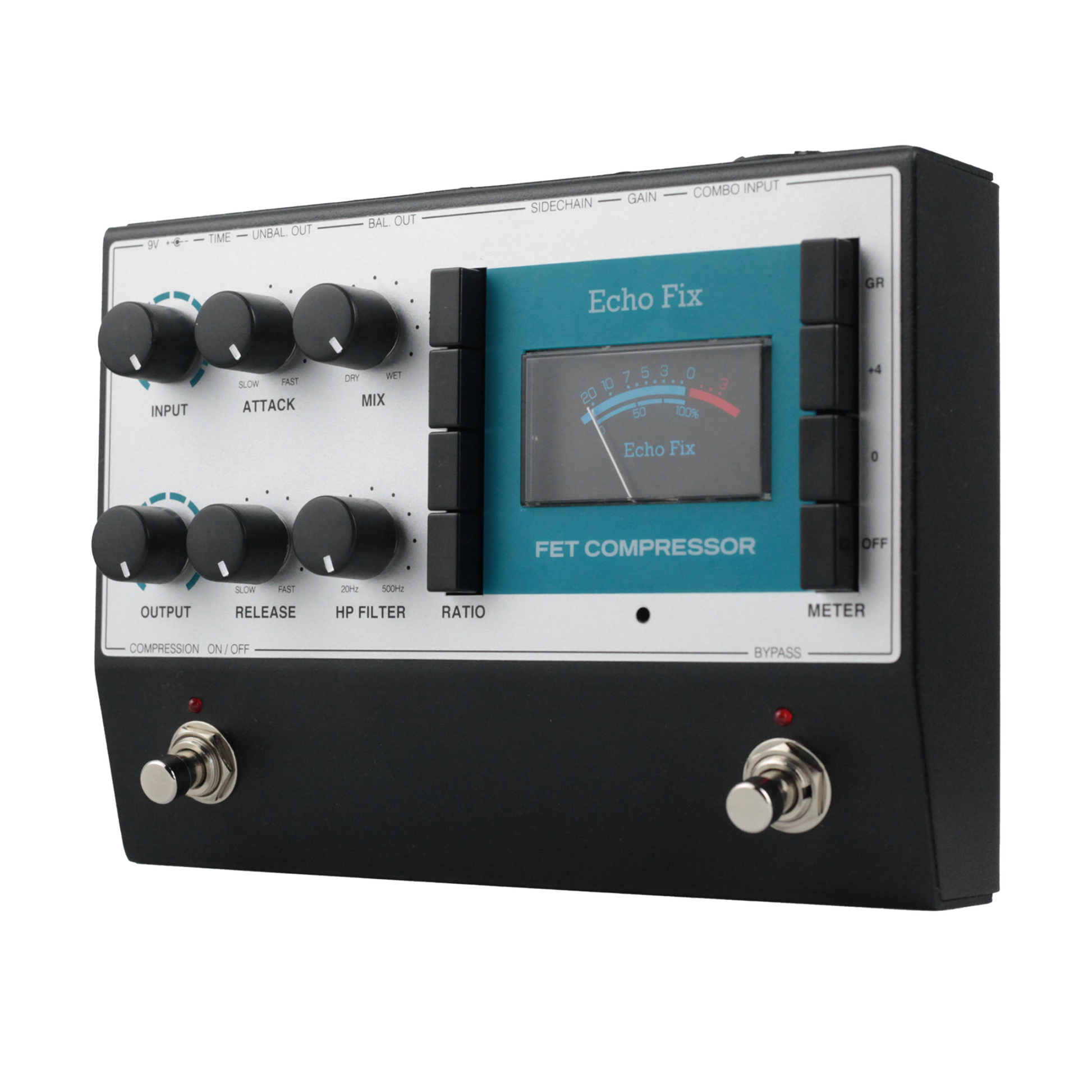

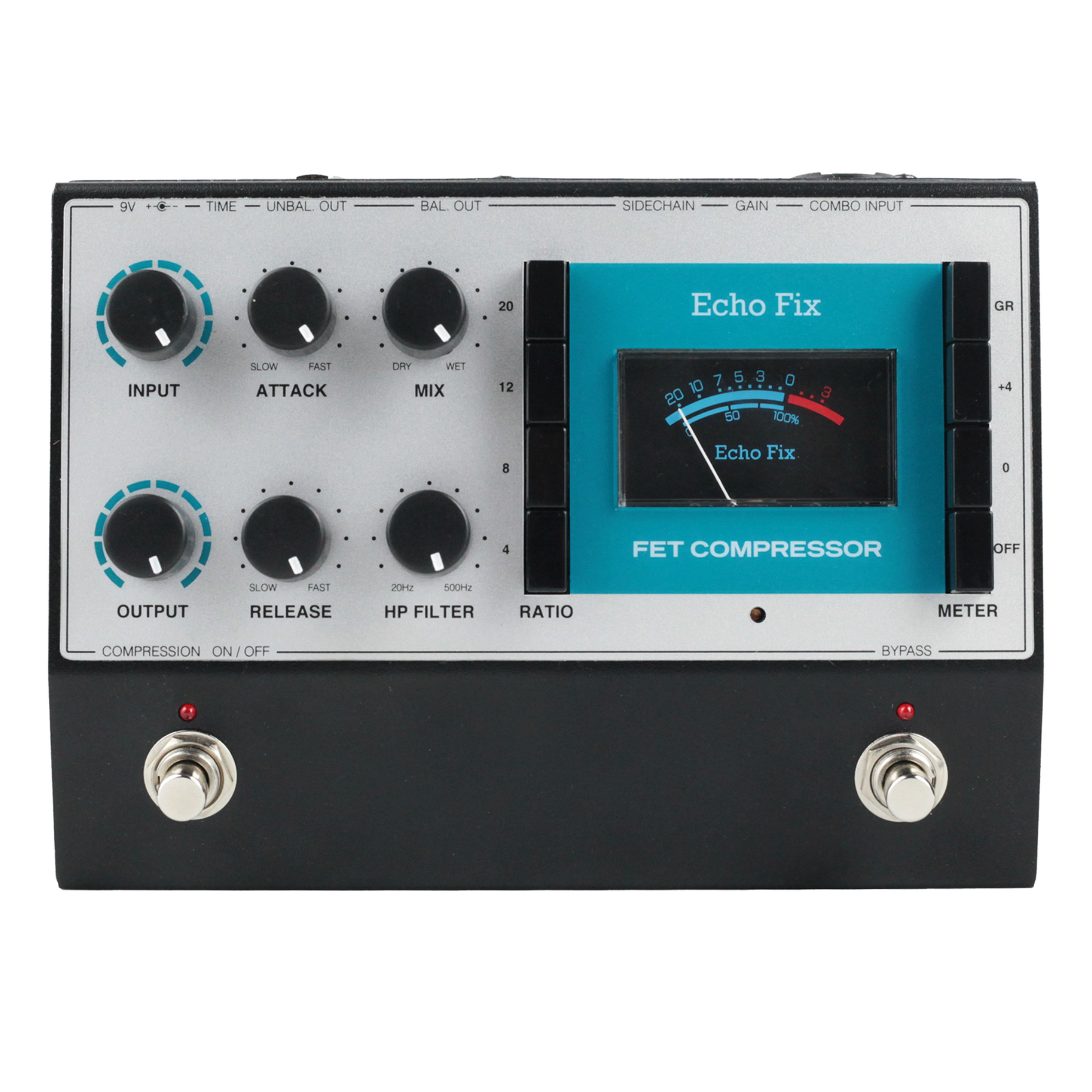

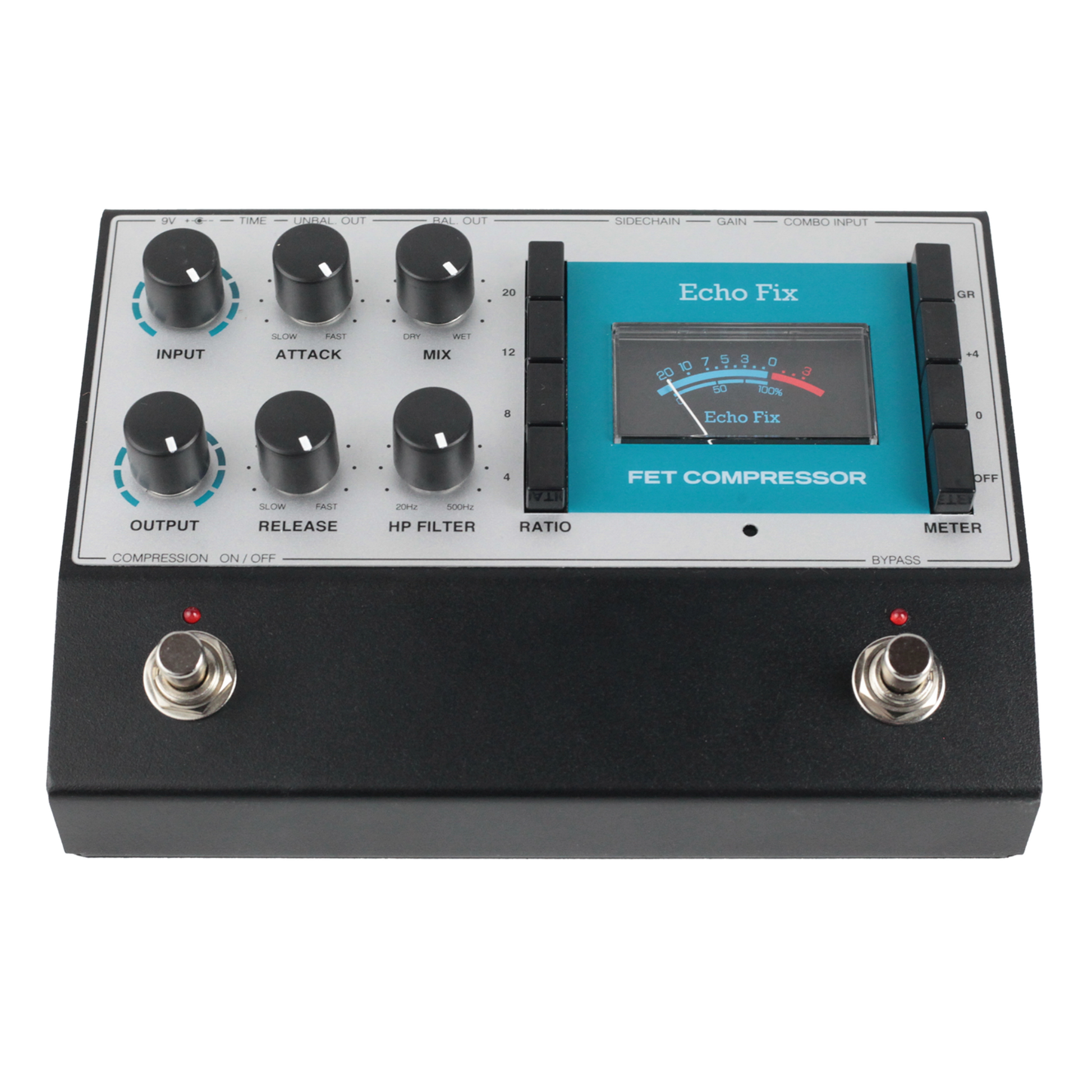

The EF-P5 is a modern take on classic FET compressors, offering expanded control, versatility, and portability. Delivering studio-grade compression wherever you need it, the EF-P5 features XLR I/O for studio use, and TS I/O for seamless integration into a pedalboard, making it a flexible tool for both studio setups and live performances.
Equipped with input and output transformers, a sidechain input, and FET-driven input gain, the EF-P5 offers a broader range of attack and release times, providing faster and slower settings than traditional FET compressors.
The high-pass filter ensures a more controlled, defined response without compromising tonal balance, while the mix control blends compressed and dry signals for a more dynamic sound. The compression on/off foot switch lets you bypass compression, and the gain boost switch adds an extra 20dB of input gain.

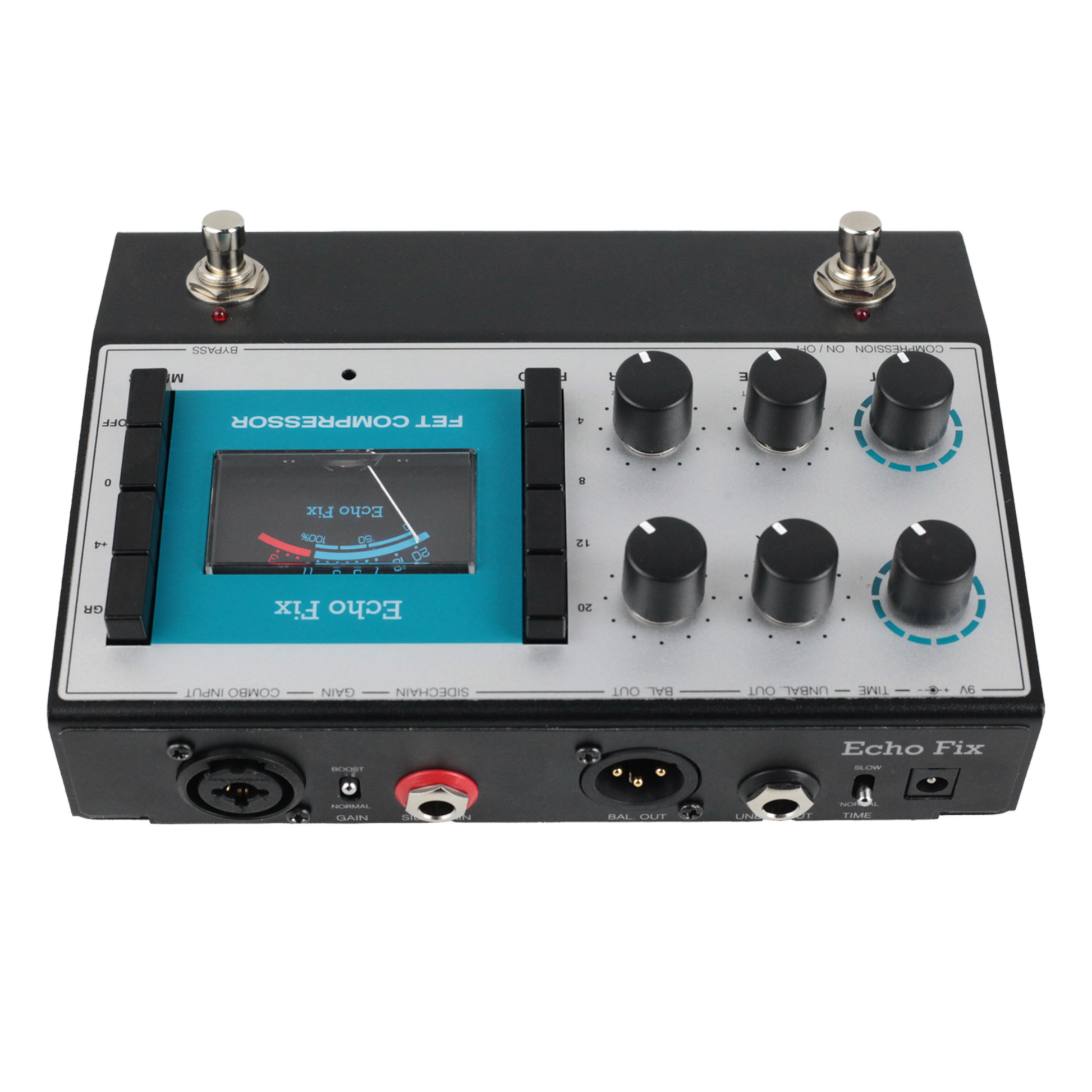

The EF-P5 is built for versatility, and is designed to work seamlessly between the studio and a pedalboard. Featuring both balanced and unbalanced outputs, along with configurable footswitches to enable personalised start-up settings, the EF-P5 is simple to integrate into any setup.
