Pedal Features
Pedal Features
• 9 Drop Effect Settings
• Momentary On/Off Switch
• True Bypass
• Compact Design
• Solid Construction
• Included Power Adapter
Sample Rate: 44.1 kHz
Frequency Response: 20 Hz-11 kHz (Effect Enabled)
Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion: 24-bit
Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry
Input Type: 1/4” Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1 MΩ (Effect Enabled)
Input Impedance: True Bypass (Effect Off)
Output Type: 1/4” Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1 kΩ (Effect Enabled)
Output Impedance: True Bypass (Effect Off)
Dimensions: 4.75” (L) x 2.875” (W) x 1.75” (H)
Weight: 0.36 lbs.
Power Consumption: 2.3 Watts (< 250 mA @ 9 VDC)

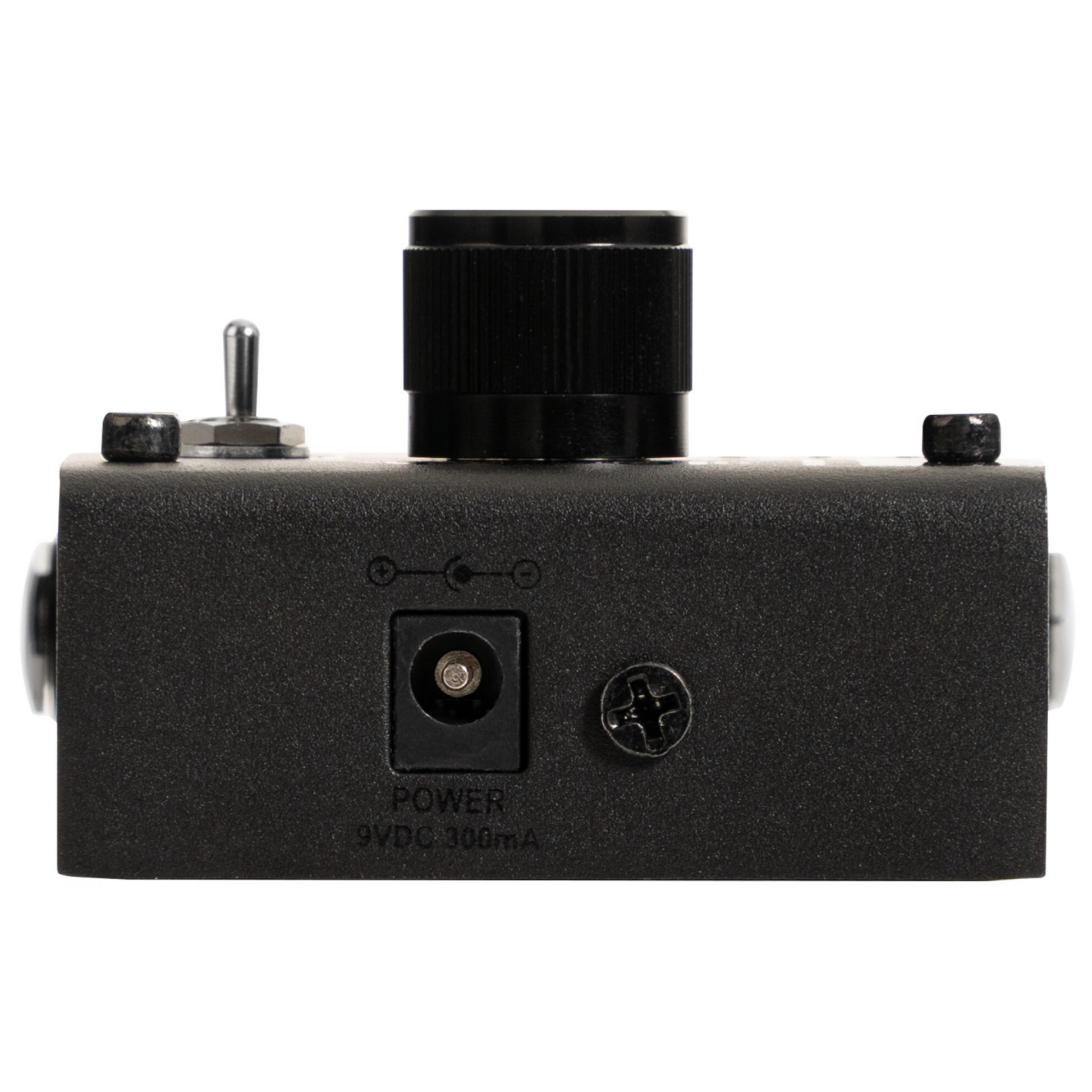

Power Requirements: 9 VDC External Adapter
Couldn't load pickup availability

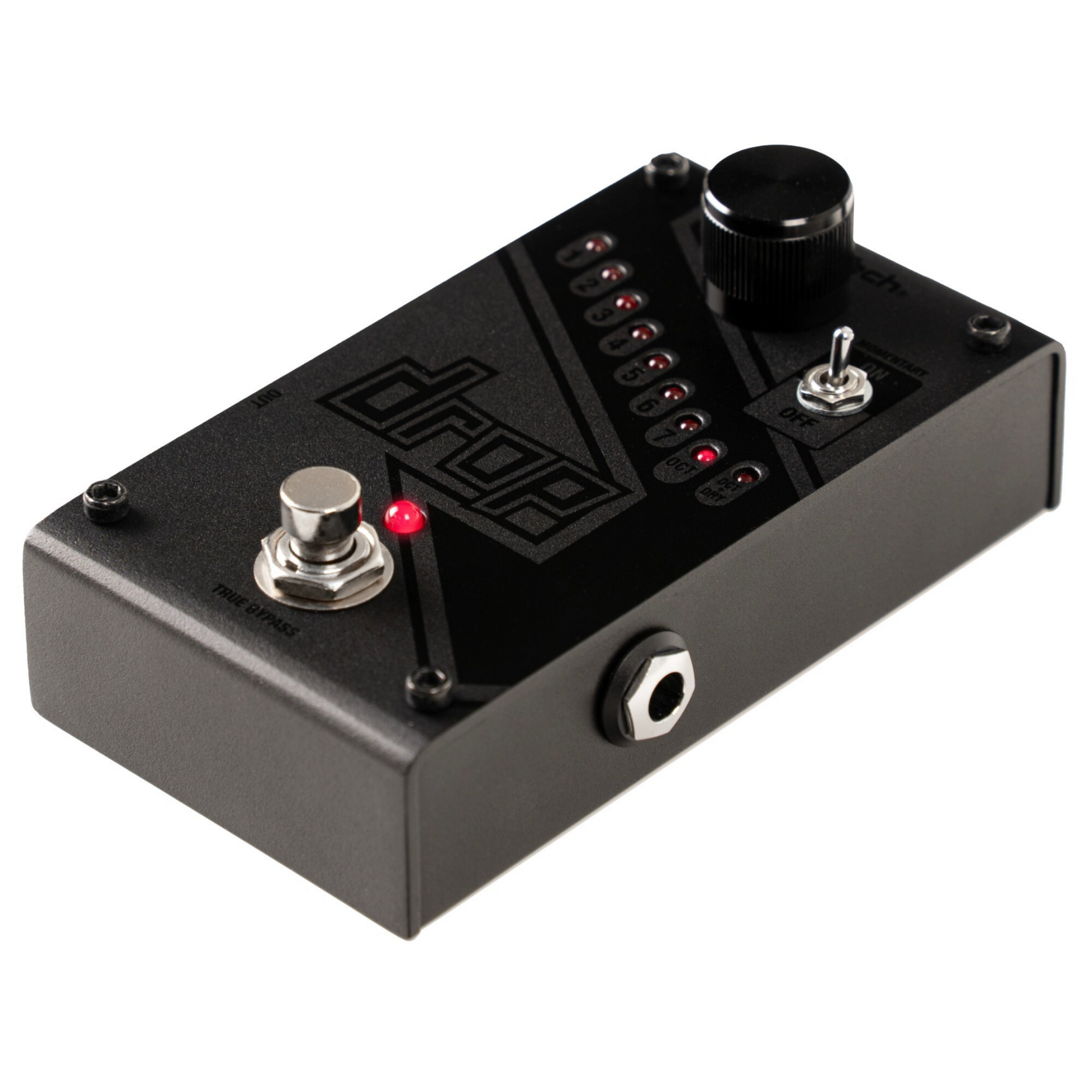

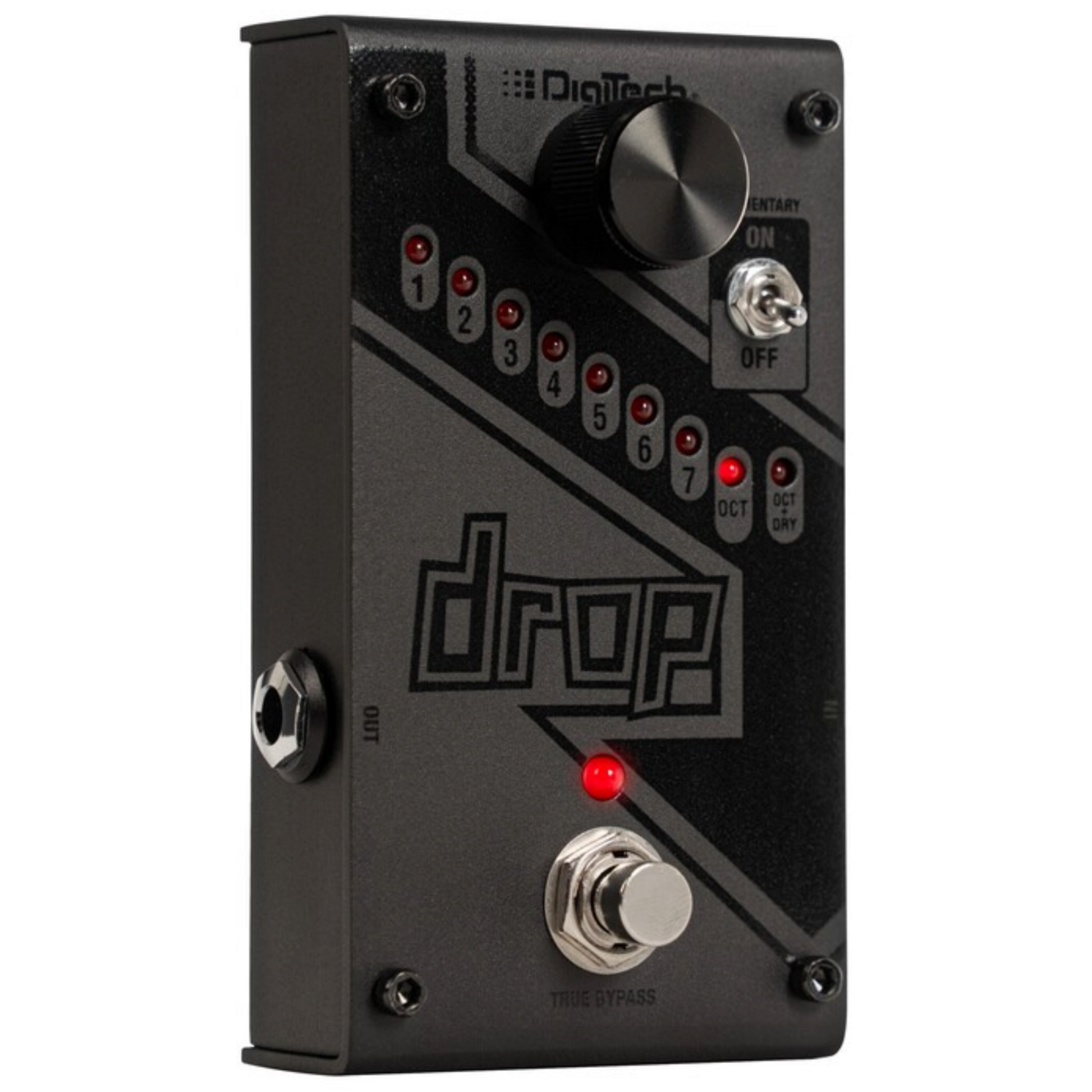

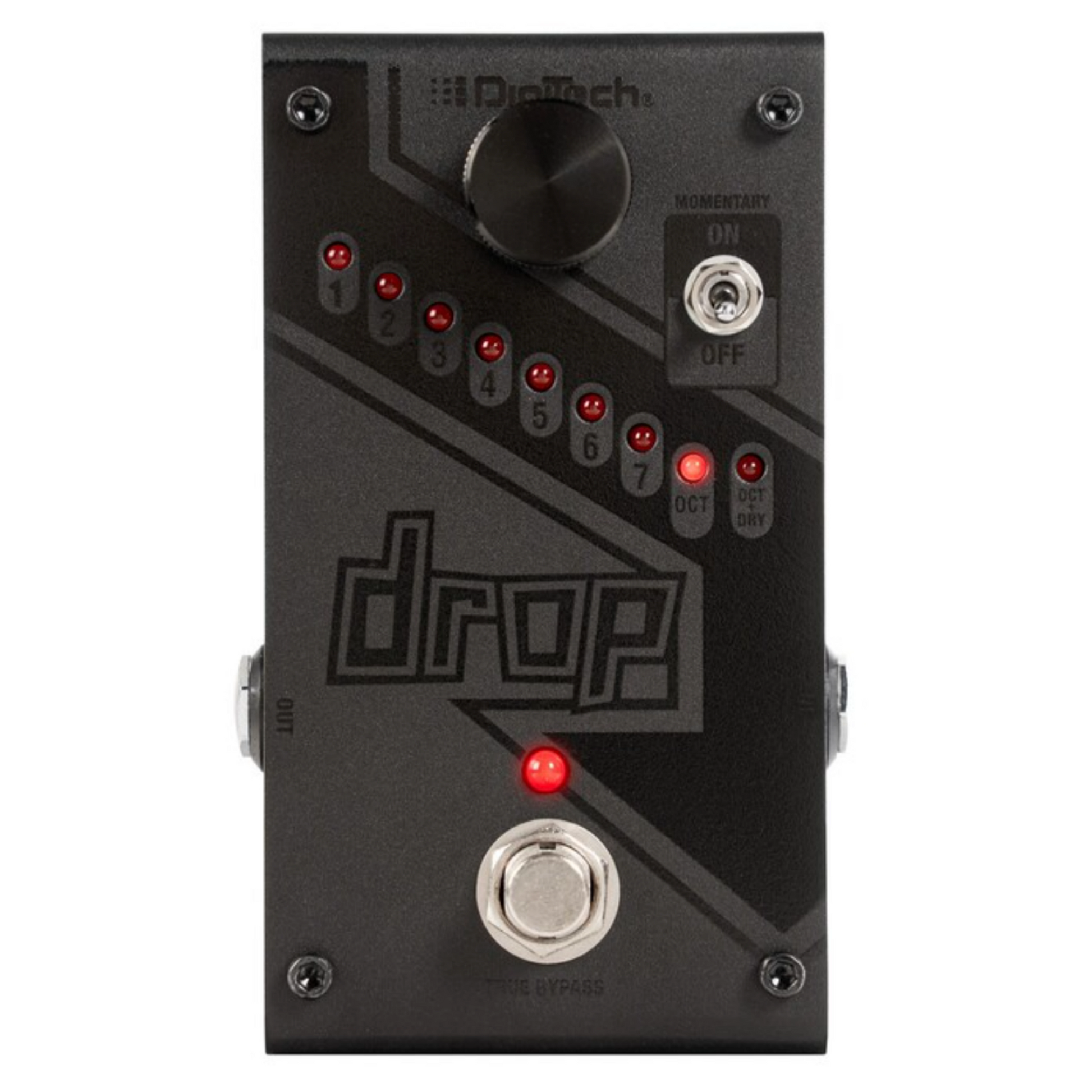

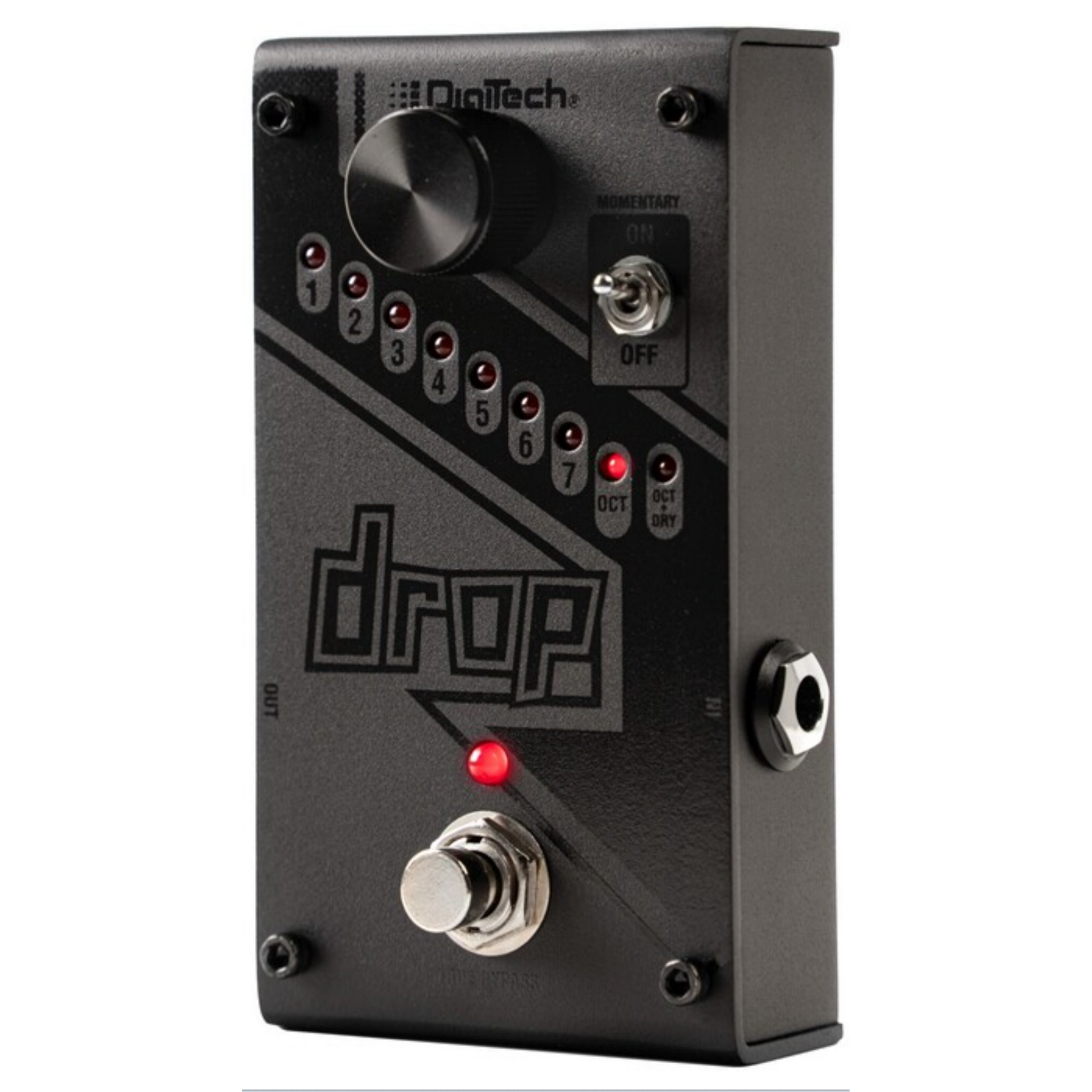

Polyphonic Drop Tune Pedal
The DigiTech Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.
Drop Effect Amount LEDs: Shows which Drop effect has been selected using the Effect Selector knob, settings include:
1 - Transposes guitar signal down 1 semitone.
2 - Transposes guitar signal down 2 semitones.
3 - Transposes guitar signal down 3 semitones.
4 - Transposes guitar signal down 4 semitones.
5 - Transposes guitar signal down 5 semitones.
6 - Transposes guitar signal down 6 semitones.
7 - Transposes guitar signal down 7 semitones.
OCT - Transposes guitar signal down 1 octave.
OCT + DRY - Transposes guitar signal down 1 octave and adds dry signal.
