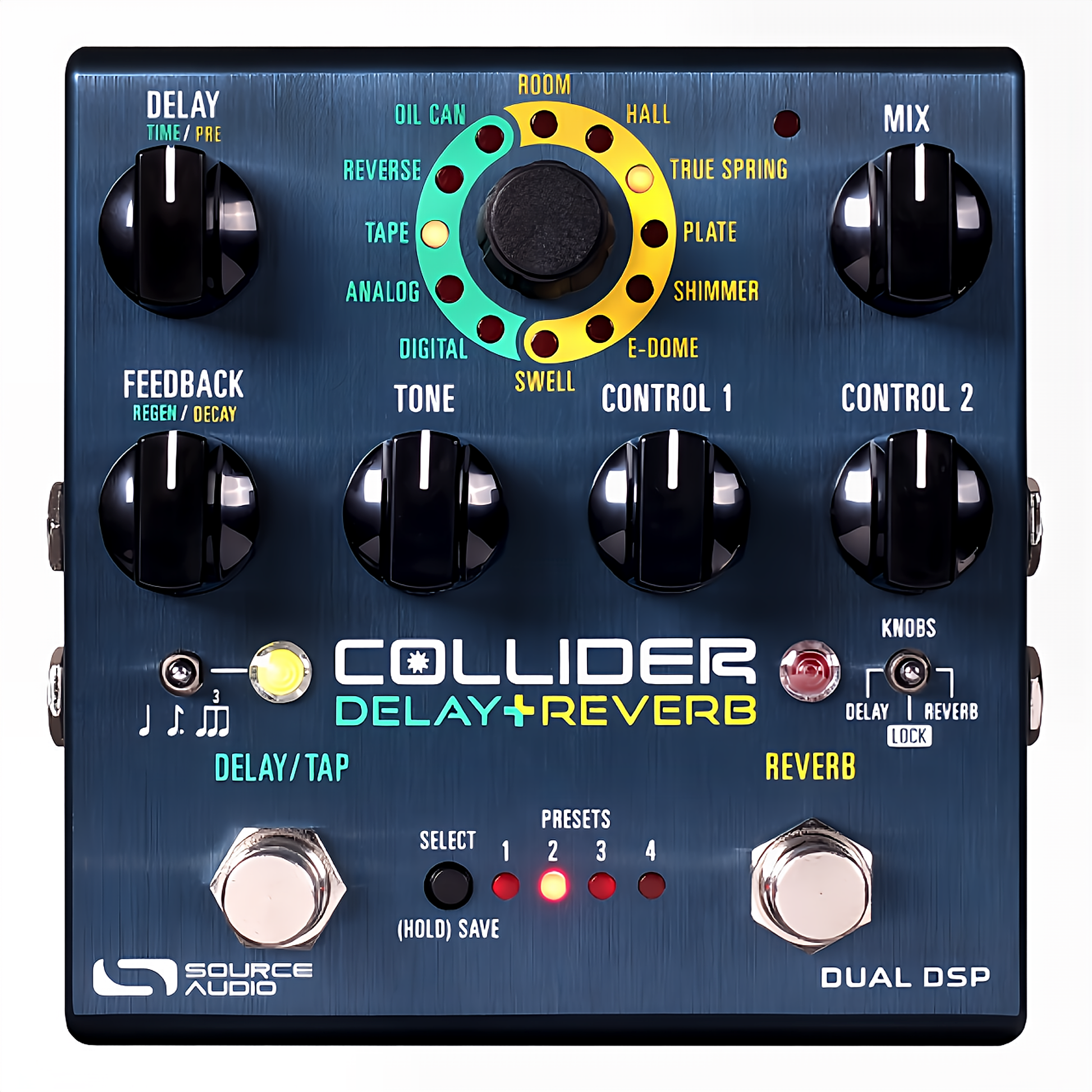

Collider

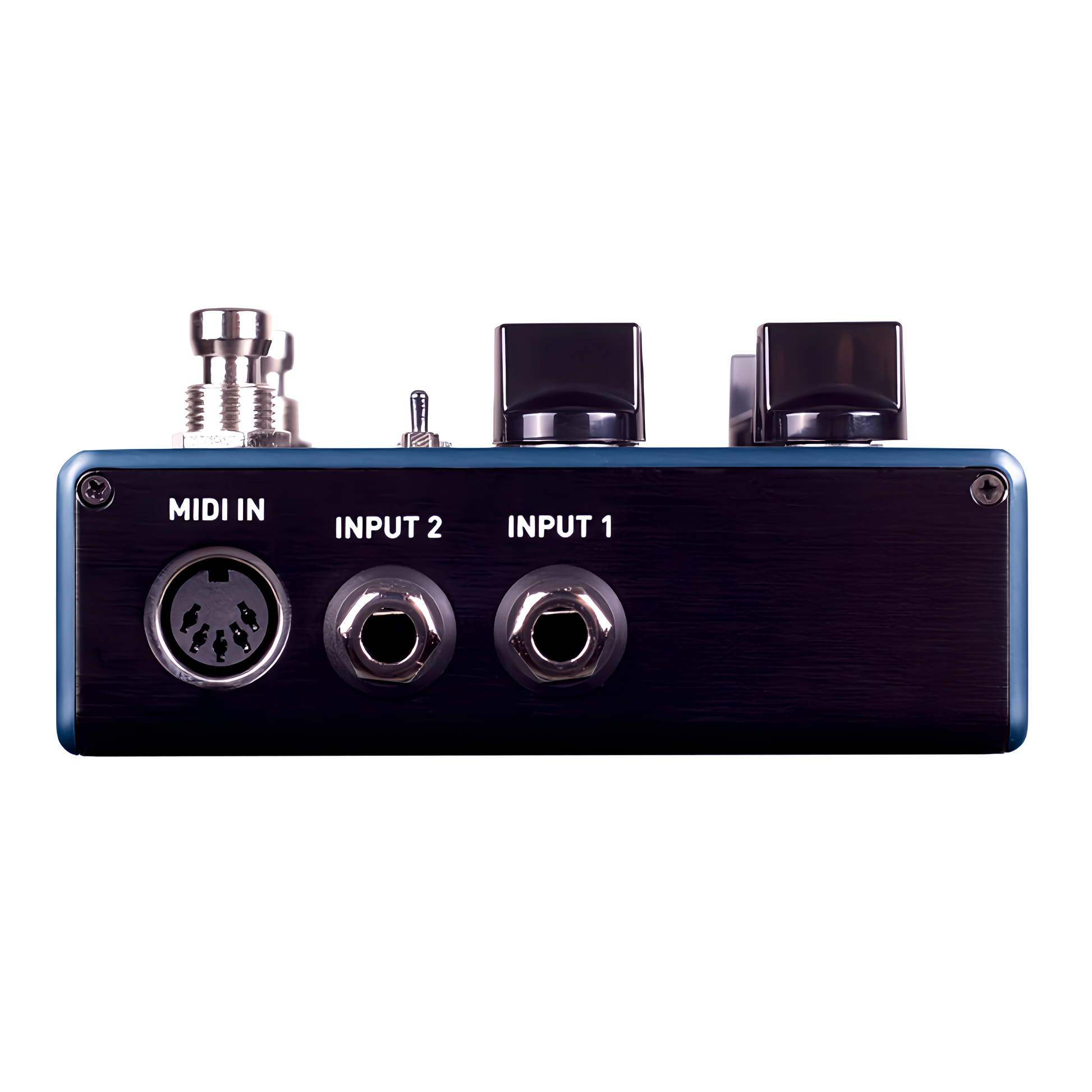

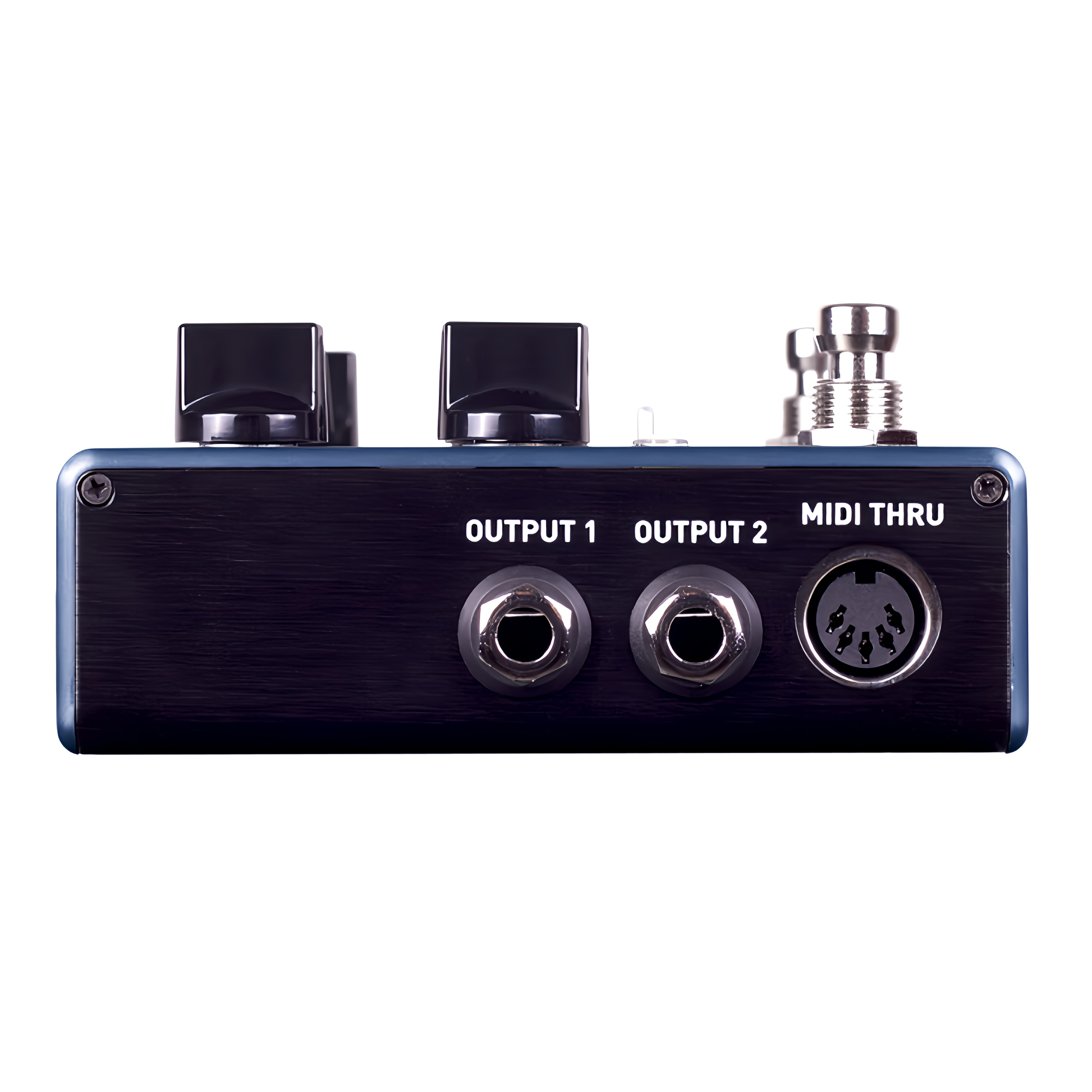

• Stereo Inputs & Outputs – Create a lush stereo spread with true stereo inputs and outputs
• Dual Processing – Features two completely independent processors – essentially providing two high-powered pedals in a single enclosure.
• Analog Dry Through – When utilizing either delay or reverb, your signal still has an analog dry through path.
• Universal Bypass – Select between true bypass, buffered bypass, or soft bypass with reverb trails. The Collider features high-quality signal relays for true bypass and transparent buffers for analog bypass.
• Compact Design – The extruded anodized aluminum housing, with its slim profile and small footprint, is built for the rigors of the road.
• 128 Presets – Save your favorite sounds with the touch of a button.  Save up to 8 presets recallable with the pedal’s onboard controls, plus a total of 128 presets recallable with an external MIDI controller.
• Dual Delay or Reverb Control Set – The Neuro Mobile App and Neuro Desktop Editor provide access to “unlock” either side of the pedal, giving you access to the opposite side regardless of the switch position, meaning it is possible to use Collider as a Dual Delay pedal or a Dual Reverb pedal, and to switch the order of the effects.
• Tap Tempo ­– Tap in the delay time with the onboard tap tempo switch. Beat divisions include quarter notes, dotted eighth, and triplets
• Reverb “Hold” Mode – Hold or “freeze” your reverb trail by holding down the REVERB switch when reverb is engaged to create a massive, ambient wall of sound, or a pad to play on top of.
• Knobs “Lock” Switch – Flip the KNOBS switch to the center position to lock your controls in place, protecting your settings from accidental bumps in a live setting.
• Complete MIDI Functionally – Send MIDI program change (PC), continuous controller (CC), or MIDI clock messages via the 5-pin MIDI DIN Input (also includes a MIDI Thru jack) or the USB port.
• Expression Control – Easily configure the Collider to work with a variety of expression pedals and footswitches for various external control options
• Discover Knob Positions – Ever wondered where the knobs were set in another preset? With "Knobs Action After", you can discover these knob positions by rotating the knob until you see the Control LED flash.

Connect the Collider Delay+Reverb to the Neuro Mobile App (a free download for iOS or Android) and explore the power of effect downloading, customization, and sharing that comes with every Source Audio One Series pedal.

• Customize Effects — Make real-time editing changes with a virtual set of parameters.
• Save and Share Customized Presets — Once you’ve fine-tuned an effect, save it to your personal effects collection and share it with the growing community of Neuro users.
• Download Presets — Explore Source Audio’s ever-expanding, library of free effect presets.
• Simple Connection — The Neuro App connects with the Collider Delay+Reverb via the mobile device’s headphone jack and stereo Input 2 on the pedal. A Neuro App connector cable (1/8” to 1/4”) is included with the pedal.
• USB to Mobile App Connectivity - Connect the Mobile App to your Collider Delay+Reverb via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your Collider preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).

• Preset Saving / Program Change (PC) Messages — Save up to 128 effect presets recallable with MIDI PC messages.
• MIDI Clock — Sync your delay time with external MIDI clock messages.
• MIDI Continuous Controller (CC) Messages — Control multiple knob parameters simultaneously with MIDI CC messages. Program your CC messages to control any combination of knob parameters (as well as output level) and map an independent depth and direction path for each.
• USB Port — Send MIDI program change, continuous controller, and clock messages to Collider via its USB port.
• Multi Pedal Scene Saving with the Neuro Hub — Connect Collider (along with up to five One Series or Soundblox 2 pedals) to the Neuro Hub and create 128 multi pedal scenes complete with expression control, recallable via MIDI program change (PC) messages.
• External Expression Control — Connect the Neuro Hub to any Source Audio expression pedal, Hot Hand 3 Wireless Effects Controller or third party TRS (Tip Hot) expression pedal and assign expression control to any combination of knob parameters.

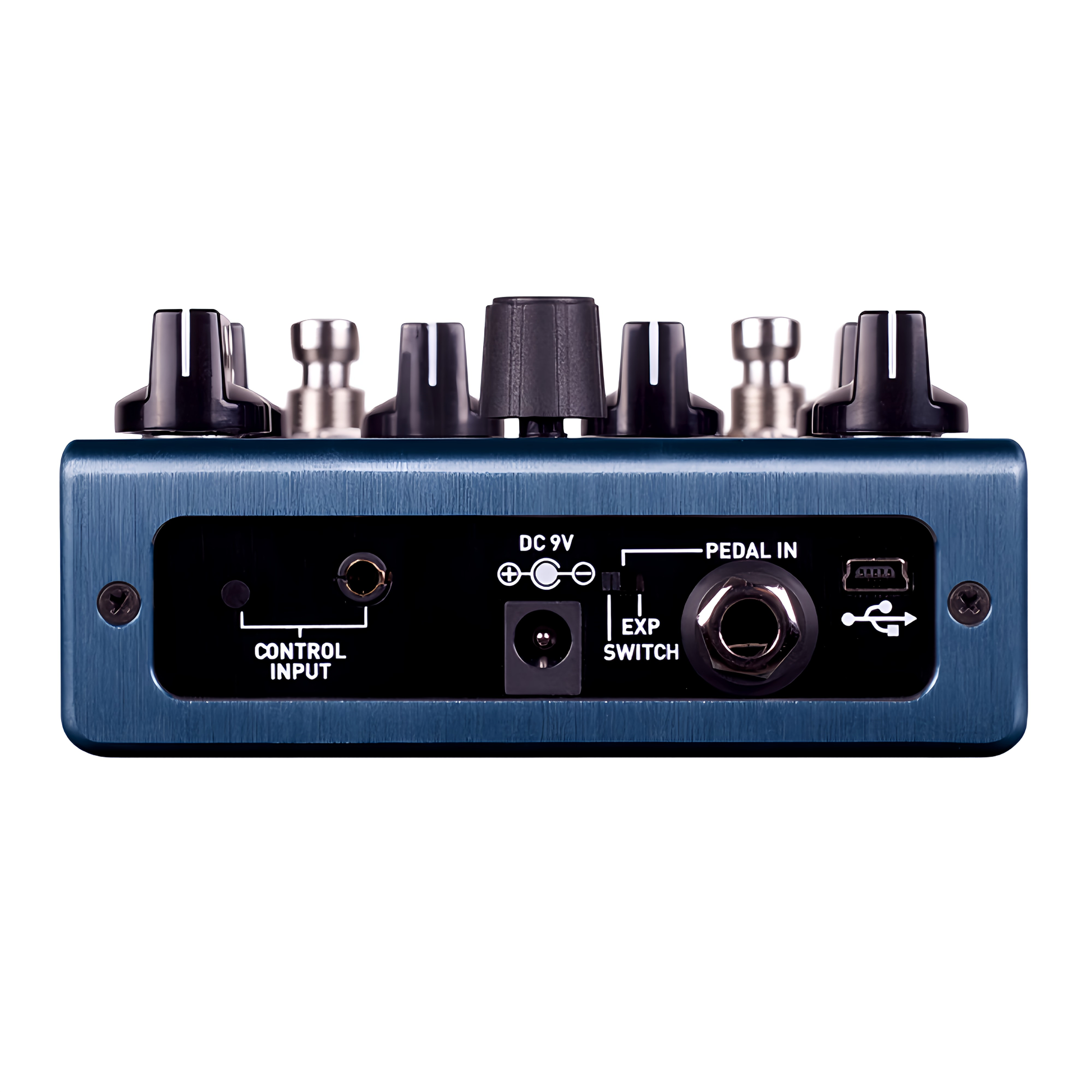

• Includes 9v DC power supply (300mA / Negative Tip)
• Includes 1/8” to 1/4” cable for Neuro Mobile App connection.
• Power Consumption — 300mA
• USB port — Connects to Mac or Windows PC for MIDI control of firmware updates.
• Brushed anodized aluminum housing.
• Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)
• Weight: 1 lb./0.45 kg.
